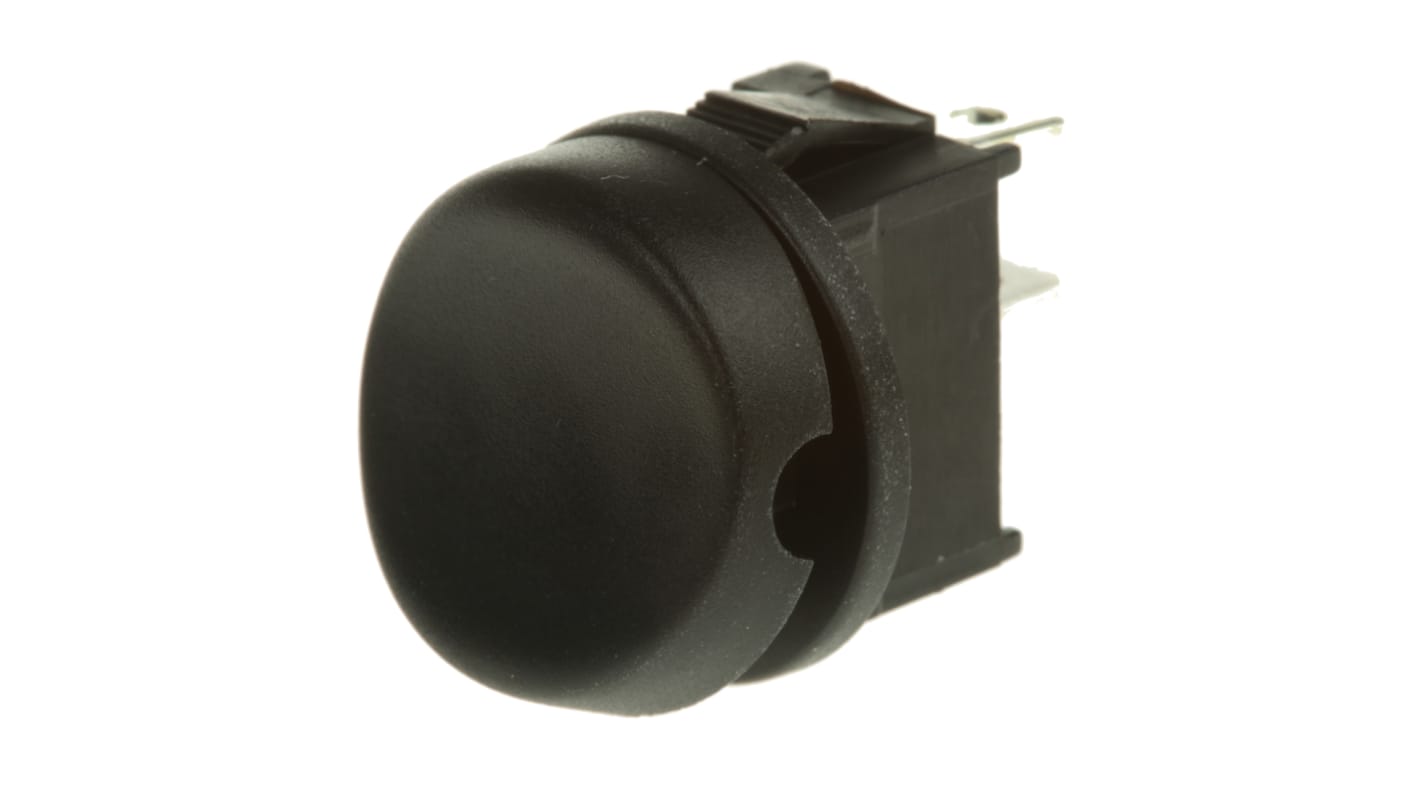

RS PRO Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 419-760
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Circular Rocker Switches

Convenient snap-in mounting black switches available in SPST or SPDT
Mounts into standard rectangular knockout 19.2 x 13.0mm
Attractive, ergonomic design with marked actuator options available
Nylon Housing to UL 94V-2 with silver plated brass terminals
Fitted with 4.8mm blade style terminals

Approvals

UR, CSA

//media.rs-online.com/t_line/L0419760-01.gif
Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Panel Cut Out Width 19.8mm
Panel Cut Out Height 13mm
Panel Cut Out Diameter 22.5mm
Contact Current Rating 10 A @ 125 V ac
Illuminated No
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Actuator Shape Round
Contact Material Silver Plated Brass
Operating Temperature Range -20 → +85°C
Case Material Nylon
Minimum Operating Temperature -20°C
AC Voltage Rating 125 V, 250 V
Maximum Operating Temperature +85°C
Contact Resistance 50mΩ
Panel Cut Out Size 13 x 19.8mm
26 In stock for delivery within 2 working days
Unit of sale: Each
1.95
(exc. VAT)
2.36
(inc. VAT)
units
Per unit
1 - 49
€1.95
50 - 99
€1.76
100 - 249
€1.47
250 - 499
€0.98
500 +
€0.88
