RS PRO Illuminated SPST, On-Off Rocker Switch Panel
- RS Stock No.:
- 185-8223
- Manufacturer:
- RS PRO
16 Within 1 working day(s) (IE stock)
114 Within 2 working day(s) (EU stock)
Added
Price Each
€2.30
(exc. VAT)
€2.83
(inc. VAT)
| Units | Per unit |
| 1 - 24 | €2.30 |
| 25 - 49 | €2.03 |
| 50 - 99 | €1.96 |
| 100 - 249 | €1.80 |
| 250 + | €1.71 |
- RS Stock No.:
- 185-8223
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

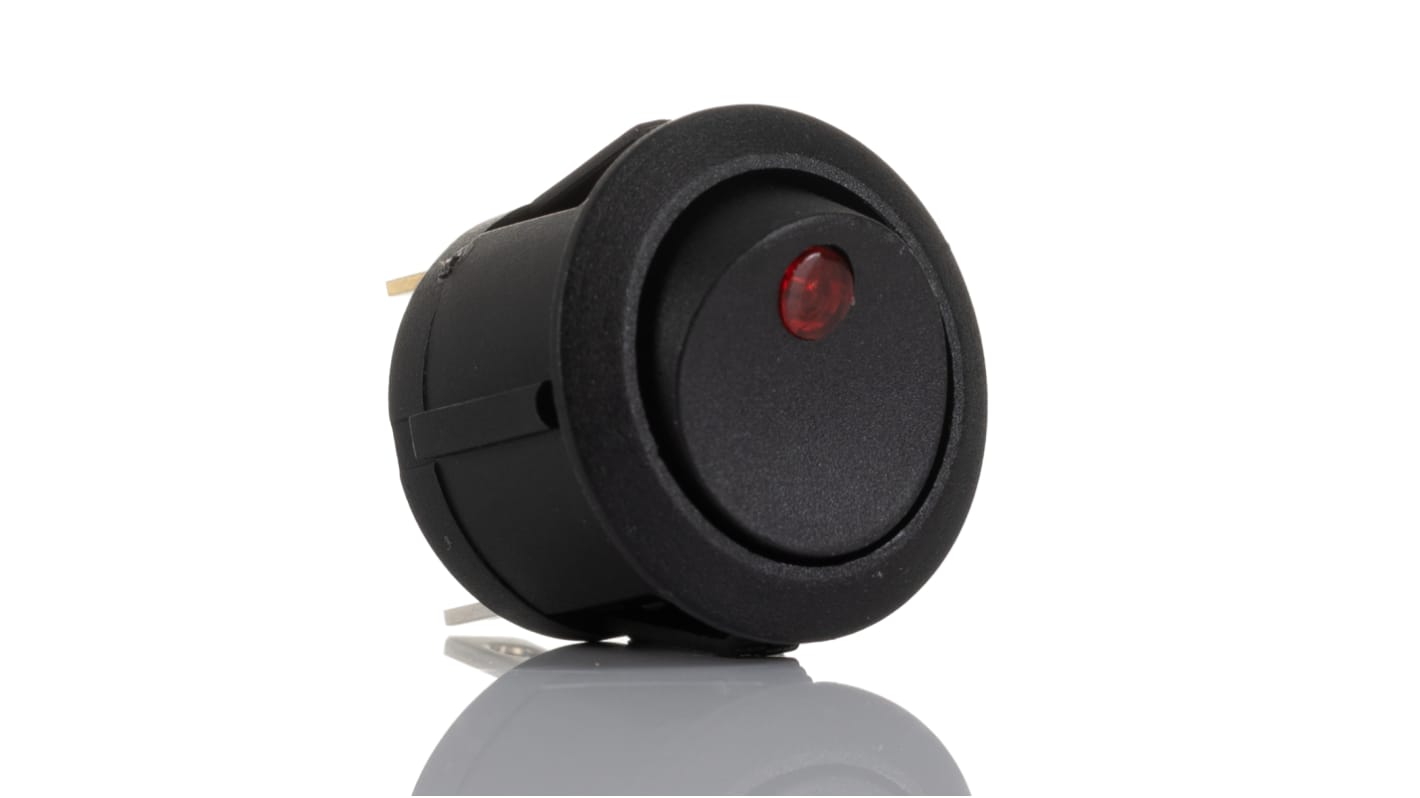

RS PRO SPST Latching Illuminated Red Dot Rocker Switch 250V
A robust and reliable illuminated dot latching rocker switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case and button for a rocker switch fit for industrial and commercial environments.
The RS PRO illuminated rocker switch features a black body with a red illuminated dot when in the on position and quick connect contacts for easy panel mounting in a 20.6 x 20.8mm panel cut out.
The red on off switch features Silver contacts avoiding the risk of contact oxidisation and maintaining secure and reliable conductivity throughout its mechanical life.
A hard wearing and reliable rocker switch fit for a wide range of applications including computer peripherals and medical instrumentation.
Features and Benefits
- Red dot illuminated rocker switch
- SPST switch configuration
- Nylon frame construction to UL 94V-2
- Dimensions of 21 x 17.8 x 15mm
- Panel mount
- Maximum contact resistance is 30mΩ
- Operating force ranges between 300gf and 600gf
- Silver plated Copper terminals
- 4.8 x 0.8 mm quick connect terminals
- 125 V (10A)/ 240 V ac (6A) mains rated
- Operating temperature range - 20° C to 125° C
- 20.6 x 20.8 mm panel cut out
- Electrical life of 10,000 cycles
Standards and Approvals: UL94V-2, RoHS compliant
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | On-Off |
| Panel Cut Out Width | 20.6mm |
| Panel Cut Out Height | 20.8mm |
| Contact Current Rating | 6 A |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel |
| Terminal Type | Quick Connect |
| Legend Text | Dot Symbol |
| Panel Cut Out Size | 20.8 x 20.6mm |
| AC Voltage Rating | 250V |
| Actuator Shape | Rectangular |
| Contact Resistance | 30mΩ |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +125°C |
| Contact Material | AgSn0²In²O²(10), Cu |
| Case Material | Nylon |
| Operating Temperature Range | -25 → +125°C |
| Mechanical Life | 10,000Cycles |
