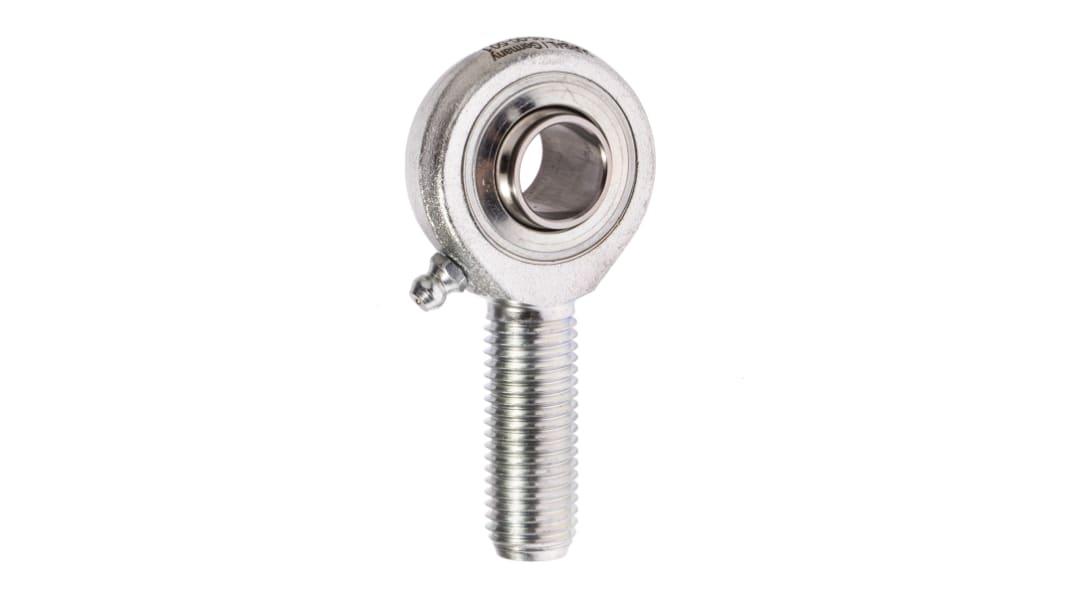

Durbal M8 x 1.25 Male Rod End, 8mm Bore Size, 54mm Long , M8 Thread Size, Metric Thread Standard Male

  • RS Stock No. 185-0096
  • Mfr. Part No. BRM 08-00-501
  • Manufacturer Durbal
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Premium Line Rod Ends low maintenance, lubrication possible rod ends with integral self-aligning roller or ball bearing.

Male thread greasable, low maintenance, shields adapter.

Rod end housing: forged steel, tempered, case hardened, bearing race, ground and lapped, rolled thread, surface galvanized
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
temperature range -20 °C to +120 °C
Bearing clearance: 15 - 40 μm radial

Specifications
Attribute Value
Connection Size M8 x 1.25 Male
Bore Size 8mm
Dynamic Load Rating 4kN
Static Load Rating 1kN
Overall Length 54mm
Material Forged Steel
Connection Thread Size M8
Connection Thread Standard Metric
Maximum Operating Temperature +120°C
Minimum Operating Temperature -20°C
Connection Gender Male
4 In stock for delivery within 2 working days
Unit of sale: Each
80.21
(exc. VAT)
98.66
(inc. VAT)
units
Per unit
1 - 4
€80.21
5 +
€77.00
