Zero-Force 800Z Series Touch Button, Momentary, 1, NO/NC, IP66

  • RS Stock No. 366-9028
  • Mfr. Part No. 800Z-GF2065
  • Manufacturer Allen Bradley
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

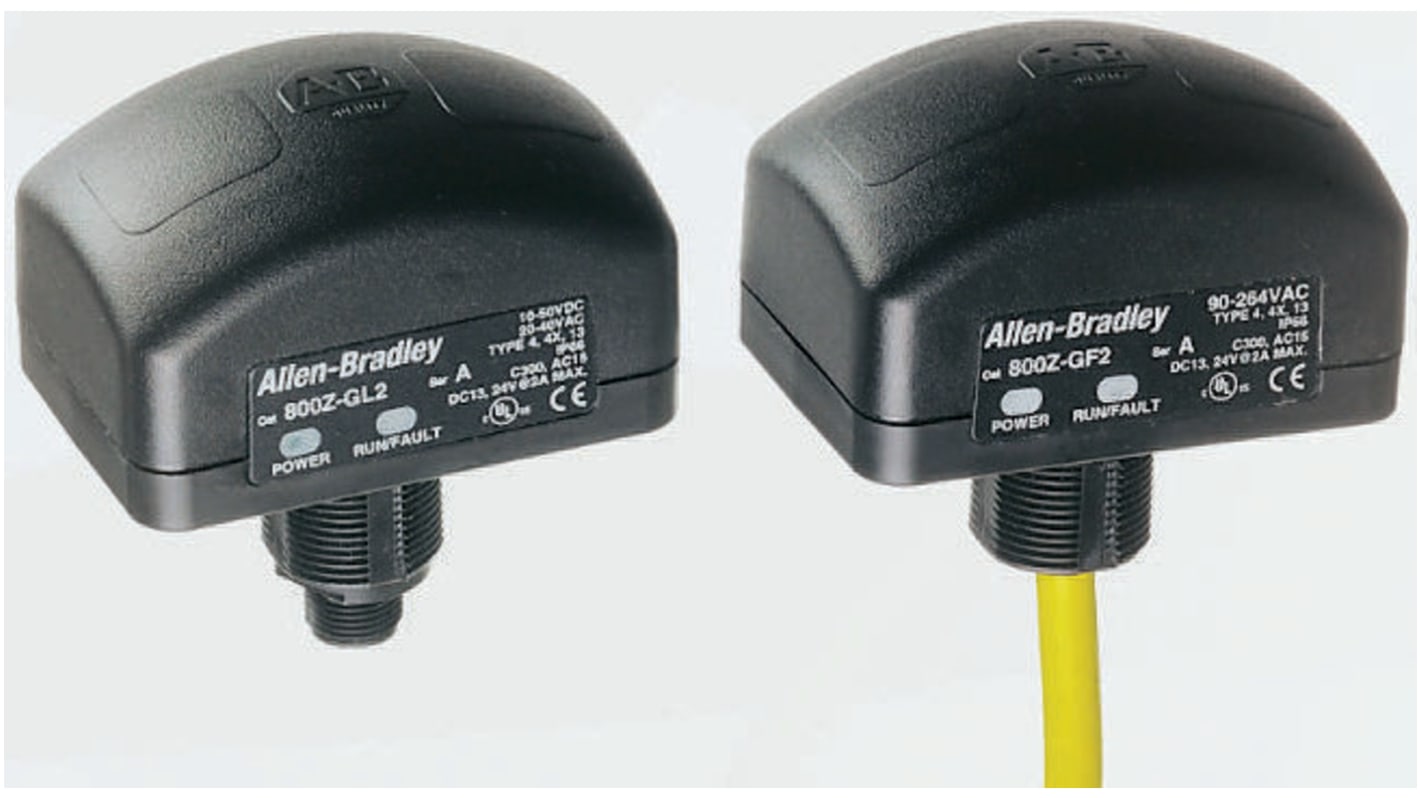

Zero Force Touch Buttons

Black polysulfone (VALOX 357) thermoplastic housingSuitable for single or two hand control applicationsFits 22.5mm holePrewired or five-pin micro quick disconnect connector versions availableReduces the risk of repetitive strain injuries

Ergonomic design for simple and easy operationCE MarkedIP66 ingress protection1200 psi hose down capabilityA 30.5mm to 22.5mm hole adaptor is available separately

Approvals

UL/ UL listed for Canada

//media.rs-online.com/t_line/L366900-02.gif
//media.rs-online.com/t_line/LE366900-02.gif

Zero Force & Opto Touch Switches

Actuated by sensors using patented Field Effect Technology which converts the touch of the operators hand into an electrical output. The two sensors have to be touched within 0.2 seconds of each other and can differentiate between a person's hand and most solid objects/substances, as well as resistance to accidental actuation via clothing, fluid, splashes etc.,There are built in diagnostic safeguards for power-up protection, foreign object intervention and film/deposit interference which all result in LED indication.

Specifications
Attribute Value
Range Zero-Force
Series 800Z Series
Contact Configuration NO/NC
Number Of Push Buttons 1
Push Button Actuation Momentary
Mounting Type Flush Mount
Housing Material PBT, PC
Supply Voltage 85 → 264 V ac
Supply Current 100 mA
IP Rating IP66
Dimensions 69.9 x 40.9 x 48.3 mm
Depth 48.3mm
Length 69.9mm
Width 40.9mm
2 Within 1 working day(s) (IE stock)
1 Within 2 working day(s) (EU stock)
Unit of sale: Each
227.50
(exc. VAT)
279.82
(inc. VAT)
units
Per unit
1 +
€227.50
