HOBUT Plate Shunt, 3 A, 75mV Output, ±1.5 % Accuracy

  • RS Stock No. 257-357
  • Mfr. Part No. SHR3A75
  • Manufacturer HOBUT
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

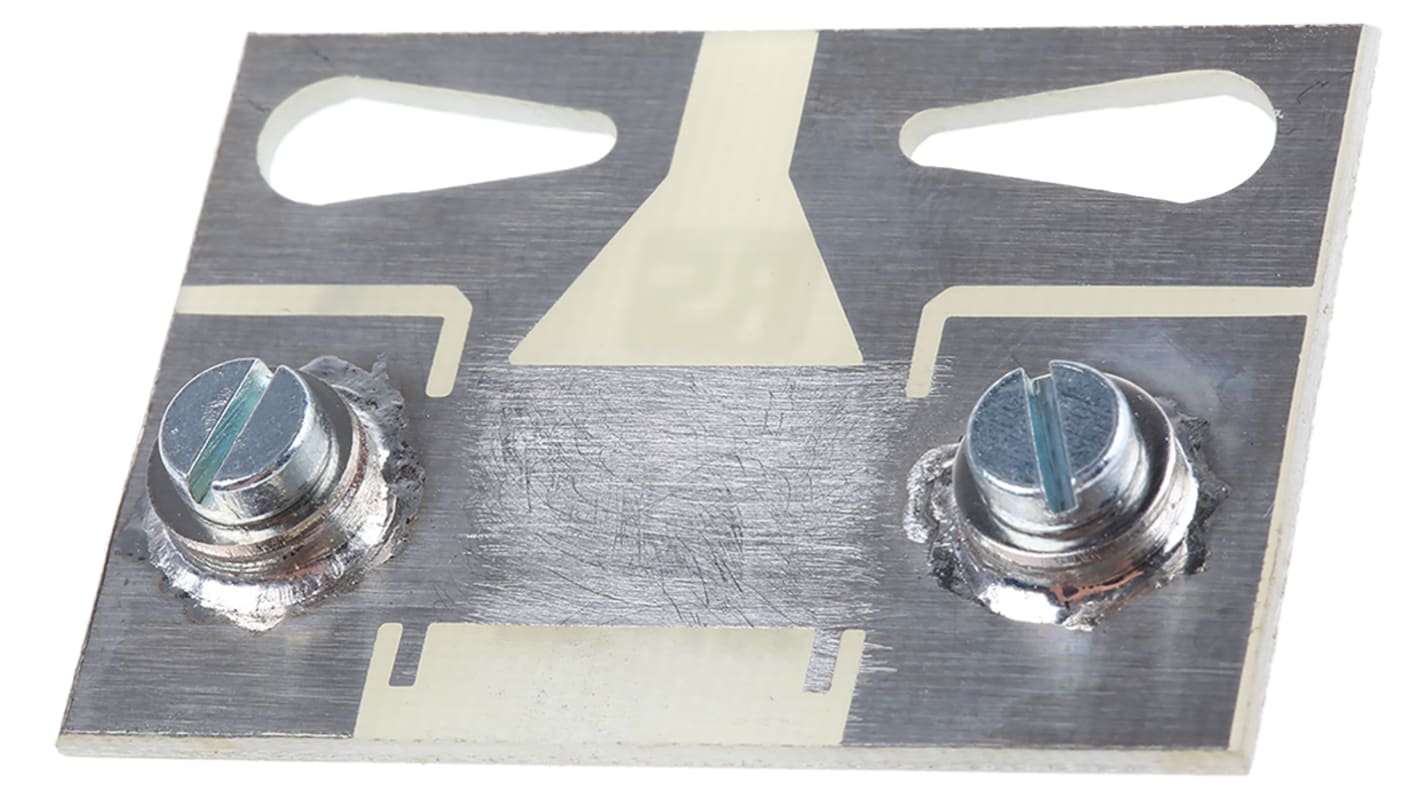

75mV Ammeter Shunt - Plate Type

For use with DIN dc ammeters or any panel meter with a full scale deflection of 75mV @ 75Ω (1mA)
Class 1.5 accoracy (±1.5%)
Can be mounted directly on the meter

Shunts

Specifications
Attribute Value
Maximum Current 3 A
Voltage Output 75mV
Shunt Type Plate
Accuracy ±1.5 %
34 In stock for delivery within 2 working days
Unit of sale: Each
11.21
(exc. VAT)
13.79
(inc. VAT)
units
Per unit
1 - 4
€11.21
5 - 9
€10.85
10 +
€10.62
