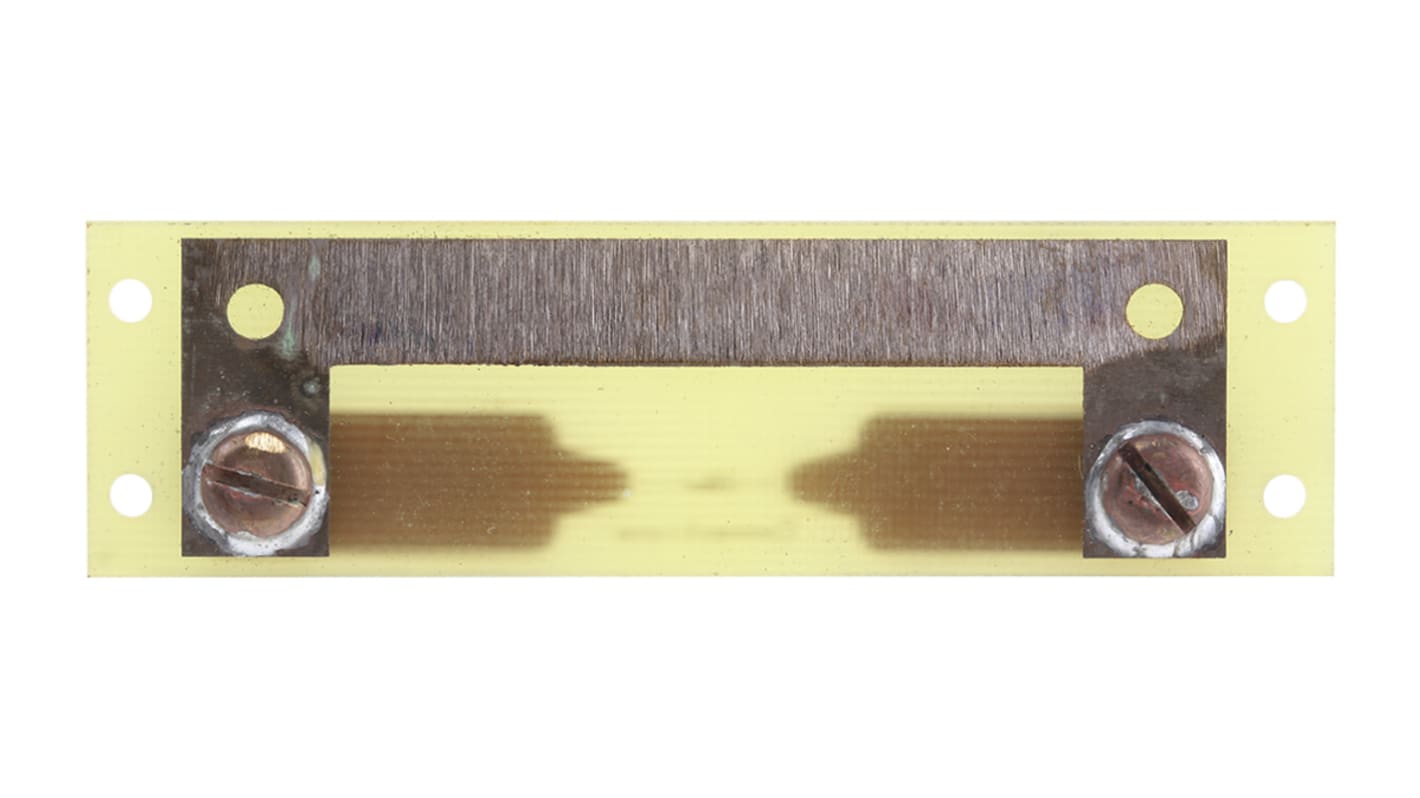

HOBUT Shunt, 20 A, 200mV Output, ±1 % Accuracy

  • RS Stock No. 257-408
  • Mfr. Part No. SHR20A200
  • Manufacturer HOBUT
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

200mV Digital Ammeter Shunt

Converts digital panel meters with 199.9mV full scale deflection into ammeters
Accuracy class I (±1%)
Mounted on rear pillars of 3.5 digit LED DIN meters
Also suitable for any digital meter with a full scale deflection of 199.9mV and a high input impedance
Current connectors M4 screw terminals; solder pad meter connectors

Shunts

Specifications
Attribute Value
Maximum Current 20 A
Voltage Output 200mV
Accuracy ±1 %
11 Within 1 working day(s) (IE stock)
127 Within 2 working day(s) (EU stock)
Unit of sale: Each
13.51
(exc. VAT)
16.62
(inc. VAT)
units
Per unit
1 - 4
€13.51
5 - 9
€13.10
10 +
€12.81
