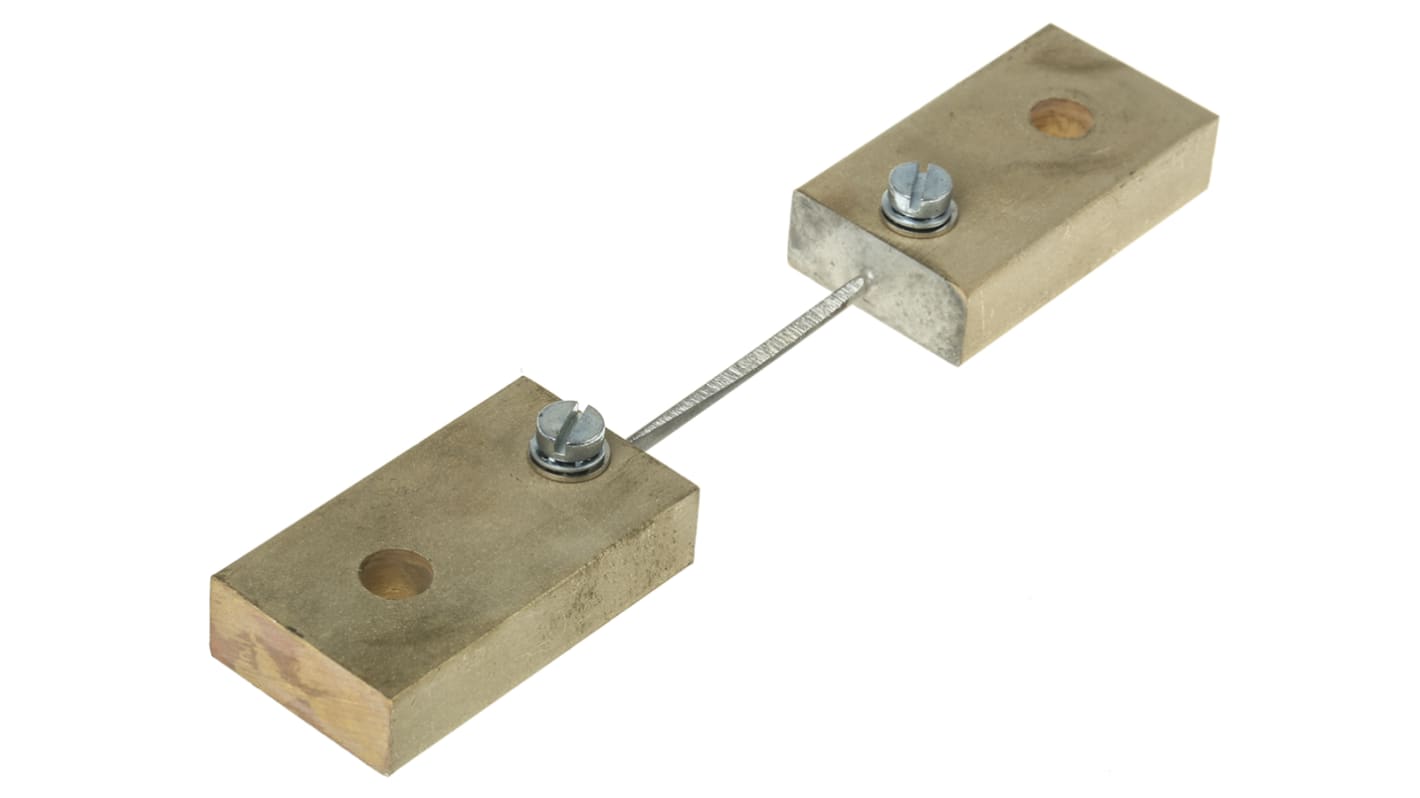

HOBUT Brass-Ended Shunt, 10 A, 60mV Output, ±1 % Accuracy

  • RS Stock No. 313-902
  • Mfr. Part No. SHB10A60
  • Manufacturer HOBUT
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

60mV Ammeter Brass-Ended Shunt

For use with DIN dc ammeters or any panel meter with a full scale deflection of 60mV and an input impedance of 75Ω or more.

Shunts

Specifications
Attribute Value
Maximum Current 10 A
Voltage Output 60mV
Shunt Type Brass-Ended
Accuracy ±1 %
Minimum Temperature -20°C
Maximum Temperature +40°C
17 In stock for delivery within 2 working days
Unit of sale: Each
34.67
(exc. VAT)
42.64
(inc. VAT)
units
Per unit
1 - 4
€34.67
5 - 9
€33.59
10 +
€32.88
