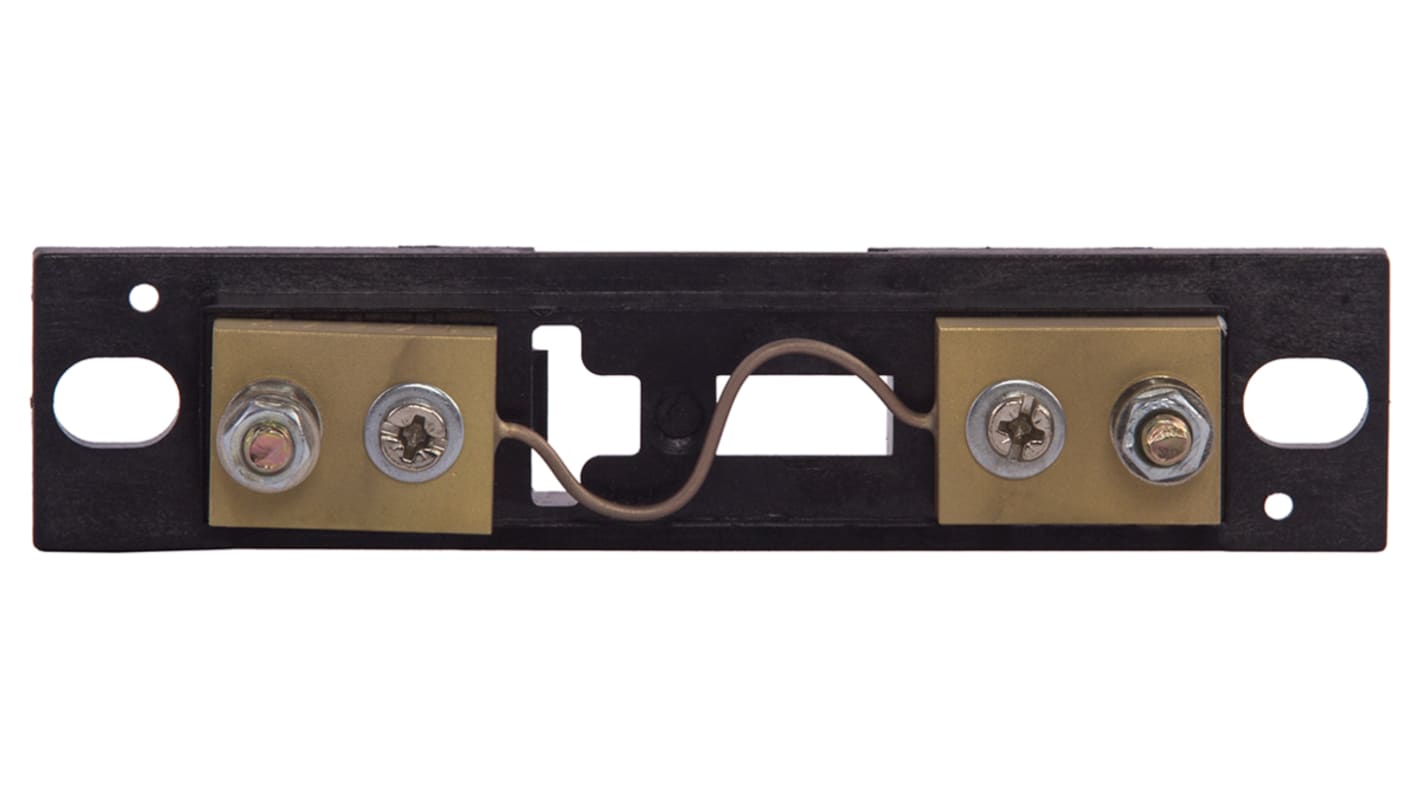

Sifam Tinsley Brass-Ended Shunt, 2 A Max, 75mV Output
- RS Stock No.:
- 886-2067
- Mfr. Part No.:
- YN01-02751BS000000
- Manufacturer:
- Sifam Tinsley
12 In stock for delivery within 2 working days
Added
Price Each
€30.64
(exc. VAT)
€37.69
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €30.64 |
| 5 - 9 | €29.72 |
| 10 + | €29.07 |
- RS Stock No.:
- 886-2067
- Mfr. Part No.:
- YN01-02751BS000000
- Manufacturer:
- Sifam Tinsley
Technical data sheets
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- IN
Product Details
Sifam 75mV Ammeter Measuring Shunt
75mV Shunts Provide an accurate DC millivolt signal to drive ammeter indicators, overload protection and control devices, especially for higher amperage. They supply a voltage drop proportional to the DC current which is measured.
The current passing through the shunt produces a proportional voltage drop. A moving coil instrument connected to shunt measures the voltage drop across the shunt terminals.
The current passing through the shunt produces a proportional voltage drop. A moving coil instrument connected to shunt measures the voltage drop across the shunt terminals.
Extension of DC current measuring ranges of moving-coil ammeters
Shunts of 1-25A ranges are fixed on an isolating base
The isolating base is adapted to be assembled on a 35mm DIN rail
Shunts of 1-25A ranges are fixed on an isolating base
The isolating base is adapted to be assembled on a 35mm DIN rail
Shunts
Specifications
Attribute | Value |
|---|---|
| Maximum Current | 2 A |
| Voltage Output | 75mV |
| Shunt Type | Brass-Ended |
| Series | Kappa |
| For Use With | Ammeter |
