Product Details

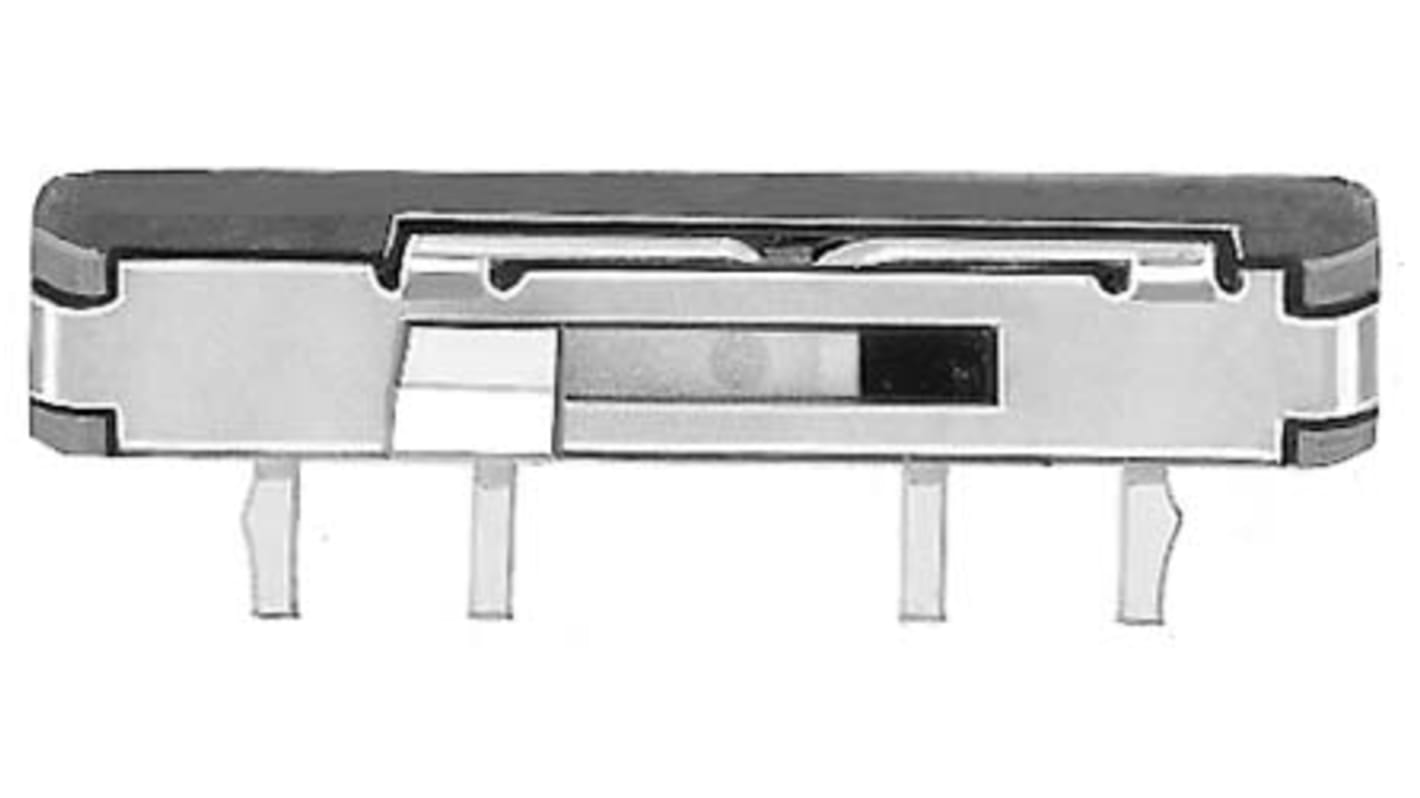

Knitter Switch Micro Miniature Slide Switches - MMP / MMS Series
These PCB microminiature slide switches are non shorting with brass, gold plated terminals.
Specifications
Attribute | Value |
---|---|
Mounting Type | PCB |
Switch Operation | On-On-On |
Contact Current Rating | 300 mA @ 4 V dc |
Terminal Type | PC Pin |
Actuator Type | Slide |
Length | 12.5mm |
Width | 2mm |
Depth | 5mm |
Dimensions | 12.5 x 2 x 5mm |
Contact Resistance | 70mΩ |
Voltage Rating | 4V dc |
Actuator Material | Polyamide |
Contact Material | Copper Alloy |
Operating Temperature Range | -40 → +85°C |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
