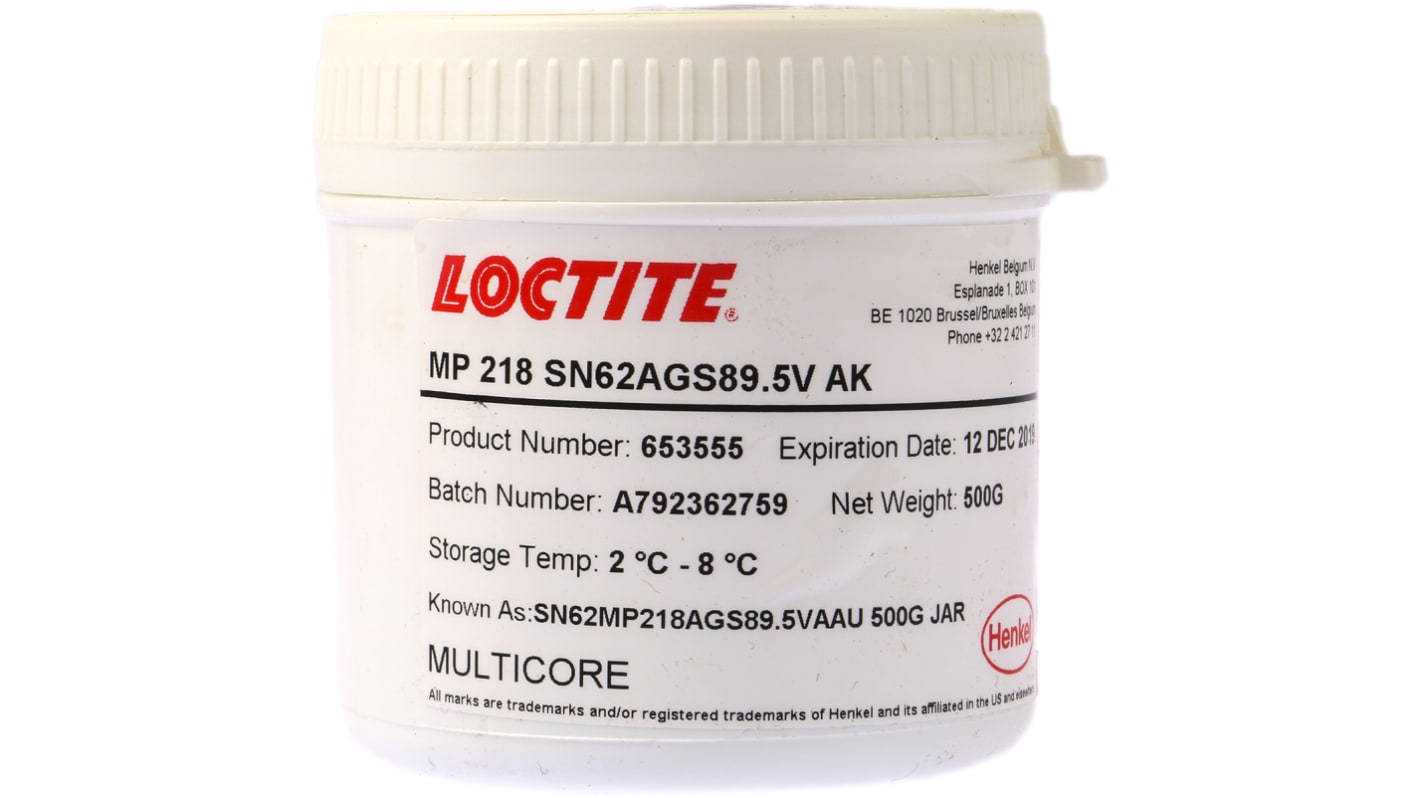

Multicore 500g Tub Solder Paste

  • RS Stock No. 506-4289
  • Mfr. Part No. 653555
  • Manufacturer Multicore
Technical data sheets
Legislation and Compliance
Non Compliant
COO (Country of Origin): GB
Product Details

MP218 No clean Tin-Lead solder paste

No clean solder paste with low wastage qualities.

Halide free flux classification ROL0 to ANSI/J-STD-004
Outstanding humidity resistance
Colourless residue for easy post reflow inspection
Extended open time & tack-life for low wastage
Suitable for fine pitch, high speed printing up to 150mm/s
Particle size 15-45μm
Supplied in 500g tubs

Note

Store in a cool place e.g. Refrigerator.

Standards

ROL0 to ANSI/J-STD-004

Supplied with

Material Satety Data Sheet.

Solder Paste - Leaded

Specifications
Attribute Value
Package Type Tub
Package Size 500g
