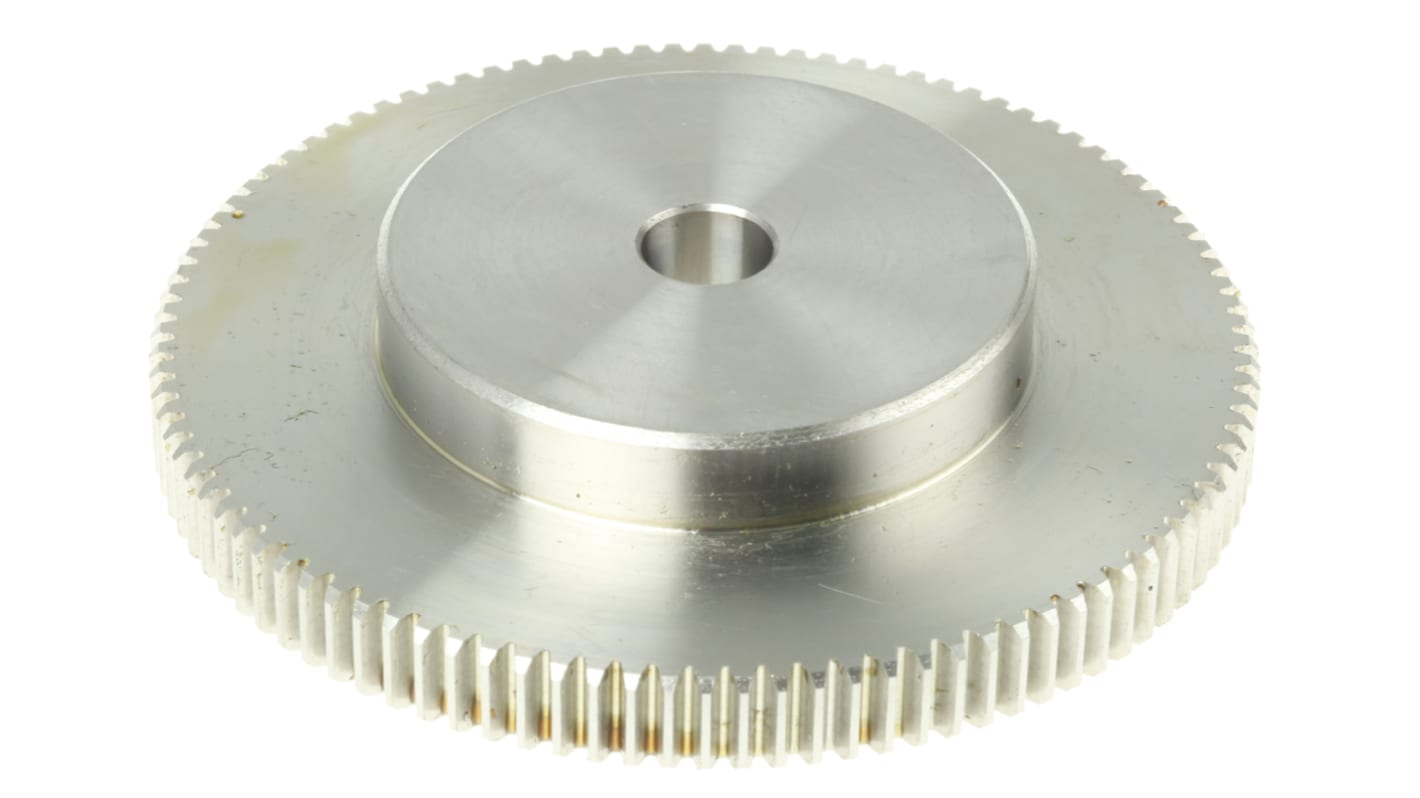

RS PRO Stainless Steel 100 Teeth Spur Gear, 1 Module, 12mm Bore Diam, 100mm Pitch Diam, 60mm Hub Diam
- RS Stock No.:
- 521-6806
- Manufacturer:
- RS PRO
3 In stock for delivery within 2 working days
Added
Price Each
€132.67
(exc. VAT)
€163.18
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €132.67 |
| 5 - 9 | €130.02 |
| 10 - 24 | €127.37 |
| 25 + | €124.71 |
- RS Stock No.:
- 521-6806
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Metric Spur Gears Stainless Steel
Stainless steel spur gears providing a range of gear ratios. All gears are module 1.0
Made from SUS303 (JIS 4051) stainless steel
Tensile strength 510N/mm²
Pressure angle 20°
Dimension E 10mm
Tensile strength 510N/mm²
Pressure angle 20°
Dimension E 10mm
Specifications
Attribute | Value |
|---|---|
| Module | 1 |
| Number of Teeth | 100 |
| Material | Stainless Steel |
| Bore Diameter | 12mm |
| Pitch Diameter | 100mm |
| Hub Diameter | 60mm |
| Face Width | 10mm |
