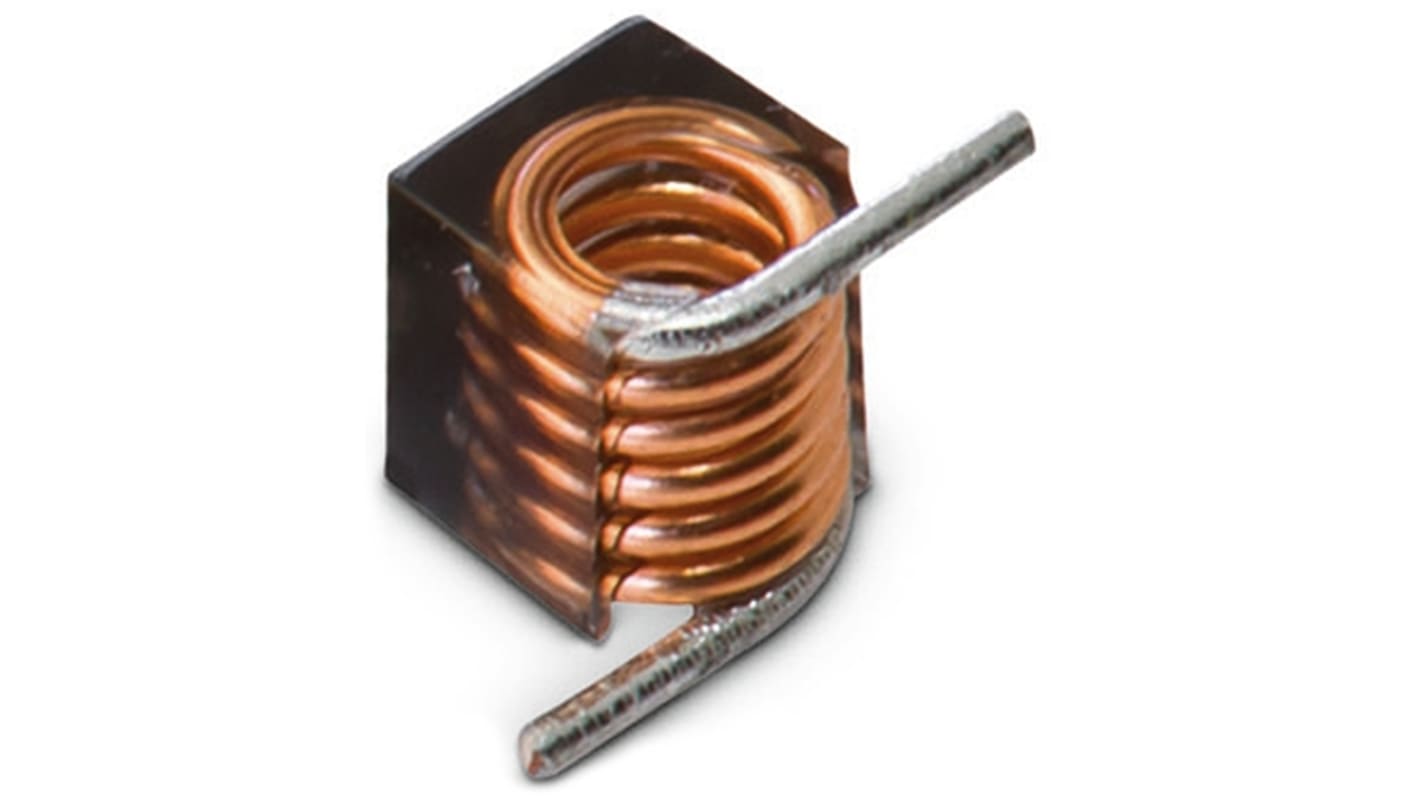

Wurth, WE-CAIR, 4248 Shielded SMD Air Coil Inductor 68 nH ±5% Without Core 2.5A Idc Q:100
- RS Stock No.:
- 163-5571
- Mfr. Part No.:
- 744912168
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 31-07-2024, delivery within 2 working days
Added
Price Each (On a Reel of 1000)
€0.609
(exc. VAT)
€0.749
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1000 + | €0.609 | €609.00 |
| *price indicative | ||
- RS Stock No.:
- 163-5571
- Mfr. Part No.:
- 744912168
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
WE-CAIR Air Coil Inductors
WE-CAIR Air coil SMD RF Inductors, with a high self-resonant frequency, a very high quality factor (>100), currents of up to 3.5A and Inductance values from 22nH up to 120nH. The WE-CAIR Air coil inductors are pick and place compatible and have tinned connector pins making them easy to solder. The WE-CAIR series are designed especially for high current RF applications such as Broad band filtering and RF-Decoupling.
Wurth Non Standard SMT Inductors (Chokes)
Specifications
Attribute | Value |
|---|---|
| Inductance | 68 nH |
| Maximum DC Current | 2.5A |
| Package/Case | 4248 |
| Length | 3.81mm |
| Depth | 4.2mm |
| Height | 4.83mm |
| Dimensions | 3.81 x 4.2 x 4.83mm |
| Shielded | Yes |
| Tolerance | ±5% |
| Maximum DC Resistance | 8.2mΩ |
| Series | WE-CAIR |
| Maximum Self Resonant Frequency | 1.5GHz |
| Minimum Operating Temperature | -40°C |
| Minimum Quality Factor | 100 |
| Inductor Construction | Without Core |
| Maximum Operating Temperature | +125°C |
