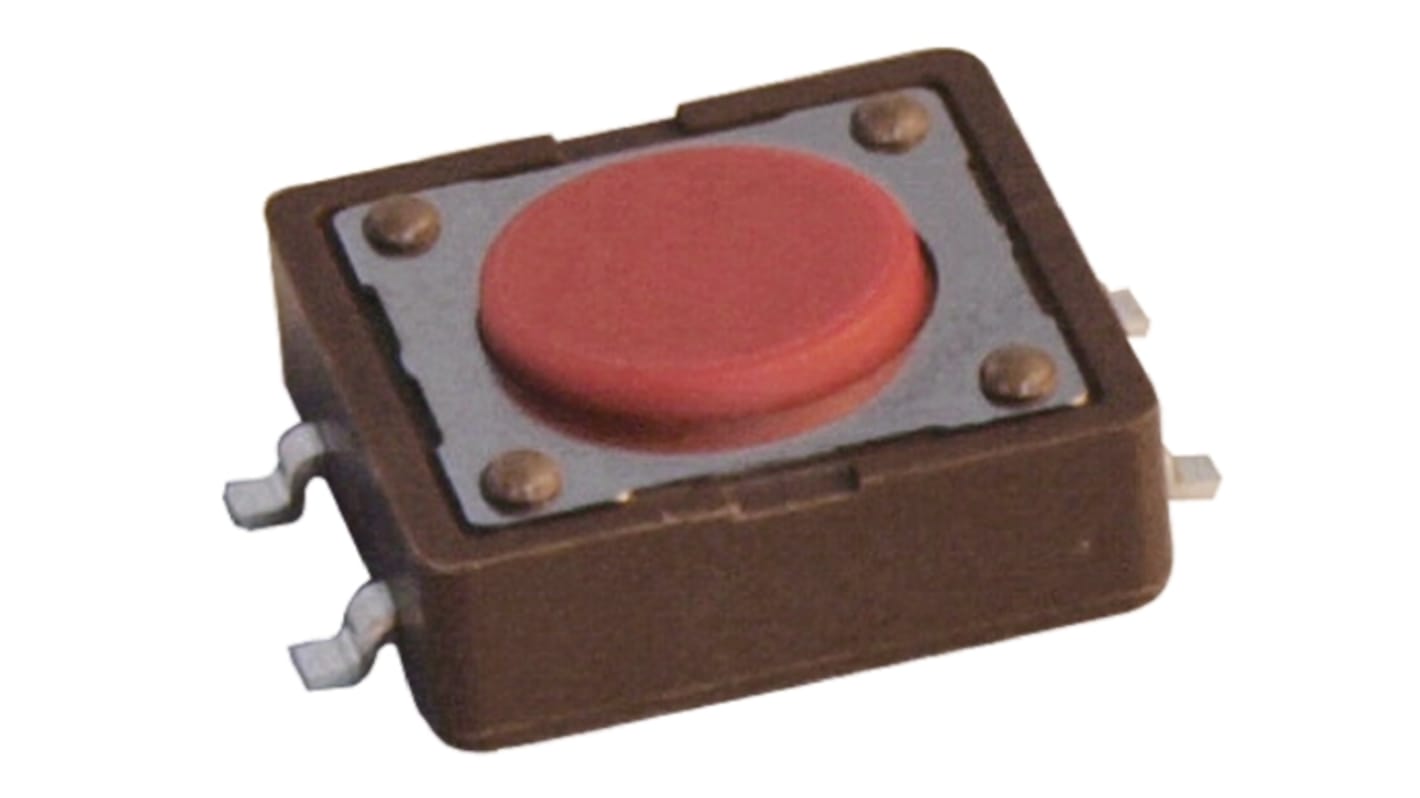

Red Cap Tactile Switch, SPST 50 mA @ 12 V dc 12mm Surface Mount
- RS Stock No.:
- 765-1084
- Mfr. Part No.:
- DTSM21RV
- Manufacturer:
- APEM
320 In stock for delivery within 2 working days
Added
Price Each (In a Tube of 40)
€0.249
(exc. VAT)
€0.306
(inc. VAT)
| Units | Per unit | Per Tube* |
| 40 - 160 | €0.249 | €9.96 |
| 200 - 960 | €0.229 | €9.16 |
| 1000 - 1960 | €0.204 | €8.16 |
| 2000 - 3960 | €0.187 | €7.48 |
| 4000 + | €0.174 | €6.96 |
| *price indicative | ||
- RS Stock No.:
- 765-1084
- Mfr. Part No.:
- DTSM21RV
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Apem DTSM-2 Series Tact Switches
Apem DTSM-2 series tactile or tact SPST switches are designed to be used with small currents and feature a sharp click feel and positive tactile feedback. A small movement distance on these tact switches mean that the user experiences a distinct sensation when the switch ’clicks’ into place. This series of Apem tact switches have SMT terminals, low contact resistance and high reliability. The ultra-miniature and lightweight structure of this series of tact switches ensures suitability of high density mounting.
Vertical operating direction
Low contact resistance: 100mΩ
Insulation resistance >100MΩ at 500Vdc
Positive tactile feedback
Long life
Low contact resistance: 100mΩ
Insulation resistance >100MΩ at 500Vdc
Positive tactile feedback
Long life
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Solder, Tab |
| Switch Operation | Momentary |
| Actuator Length | 12mm |
| Actuator Colour | Red |
| Actuator Type | Cap |
| Length | 6mm |
| Width | 6mm |
| Dimensions | 6 x 6mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 12 V dc |
| Height | 4.3mm |
| Operating Force | 2.6 N |
| Minimum Operating Temperature | -25°C |
| Operating Temperature Range | -25 → +70°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Phosphor Bronze |
