Sensirion Temperature & Humidity Sensor, Digital Output, Surface Mount, Serial-I2C, ±0.2 °C, ±1.5%RH, 8 Pins
- RS Stock No.:
- 123-7352
- Mfr. Part No.:
- SHT35-DIS-B2.5kS
- Manufacturer:
- Sensirion
71 In stock for delivery within 2 working days
Added
Price Each
€4.22
(exc. VAT)
€5.19
(inc. VAT)
| Units | Per unit |
| 1 + | €4.22 |
- RS Stock No.:
- 123-7352
- Mfr. Part No.:
- SHT35-DIS-B2.5kS
- Manufacturer:
- Sensirion
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

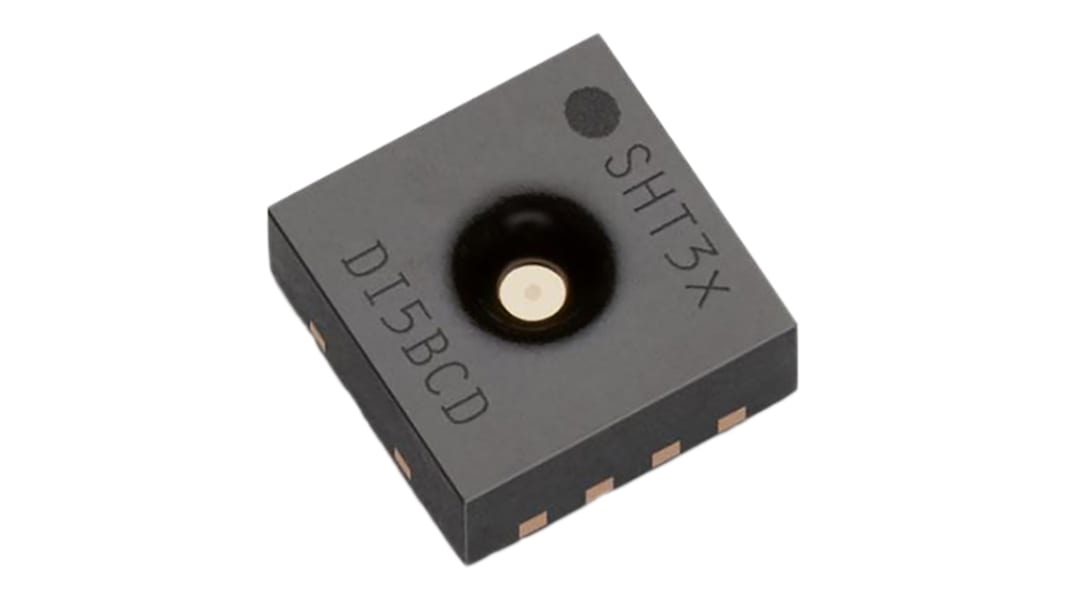

SHT3x Series Temperature & Humidity Sensors
The SHT3x series are part of Sensirion’s next generation of temperature and humidity sensors. The 8-pin DFN packages are constructed with CMOSens® Technology which allows the sensing elements to be combined with the analogue and digital signal processing circuitry. The SHT3x series have increased intelligence, reliability and improved accuracy specifications compared to their predecessors and the small package makes for easy integration in a range of applications.
876-5067 · SHT31-ARP-B Analogue output
876-5061 · SHT31-DIS-B Digital output
123-7352 · SHT35-DIS-B Digital output, high accuracy
876-5067 · SHT31-ARP-B Analogue output
876-5061 · SHT31-DIS-B Digital output
123-7352 · SHT35-DIS-B Digital output, high accuracy
CMOSens® Technology
Fully calibrated, linearised, and temperature compensated digital output
Wide supply voltage range, from 2.4 to 5.5 V
10 to 90% ratiometric analogue Voltage output
Parallel measurement of temperature and humidity at separate pins
Tiny 8-Pin DFN package
Fully calibrated, linearised, and temperature compensated digital output
Wide supply voltage range, from 2.4 to 5.5 V
10 to 90% ratiometric analogue Voltage output
Parallel measurement of temperature and humidity at separate pins
Tiny 8-Pin DFN package
Temperature & Humidity Sensors, Sensirion
Specifications
Attribute | Value |
|---|---|
| Sensor Function | Temperature & Humidity |
| Output Type | Digital |
| Interface Type | Serial-I2C |
| Accuracy | ±0.2 °C, ±1.5%RH |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Operating Temperature Range | -40 to +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Supply Voltage | 2.4 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Package Type | DFN |
| Length | 2.6mm |
| Height | 1mm |
| Width | 2.6mm |
| Resolution | 0.01 (Humidity) %RH, 0.015 (Temperature) °C |
| Dimensions | 2.6 x 2.6 x 1mm |
