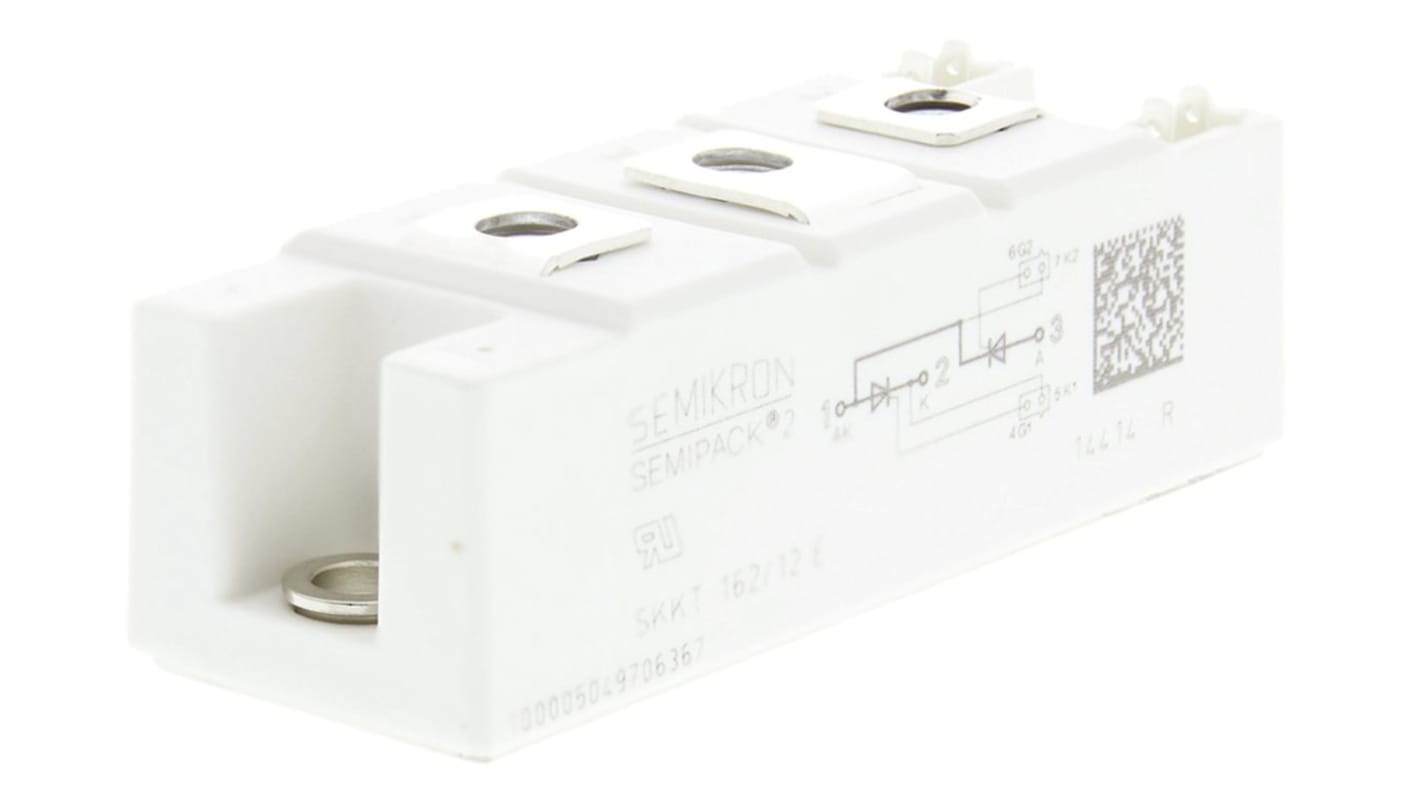

Semikron SKKT 162/12 E, Dual Thyristor Module 1200V, 156A 150mA
- RS Stock No.:
- 659-680
- Mfr. Part No.:
- SKKT 162/12 E
- Manufacturer:
- Semikron
37 In stock for delivery within 2 working days
Added
Price Each
€88.06
(exc. VAT)
€108.31
(inc. VAT)
| Units | Per unit |
| 1 - 1 | €88.06 |
| 2 - 4 | €84.78 |
| 5 - 9 | €81.54 |
| 10 - 19 | €70.45 |
| 20 + | €64.80 |
- RS Stock No.:
- 659-680
- Mfr. Part No.:
- SKKT 162/12 E
- Manufacturer:
- Semikron
Technical data sheets
Legislation and Compliance
Product Details
Dual Thyristor Modules, SKKT SEMIPACK 2 Series, Semikron
Dual series thyristors
Approvals
UL recognised component
Thyristors - Semikron
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Encapsulated modules with electrically isolated base plate. Suitable for applications such as battery chargers, welders and plating equipment, regulated power supplies and temperature and speed control circuits.
Specifications
Attribute | Value |
|---|---|
| Rated Average On-State Current | 156A |
| Thyristor Type | SCR Module |
| Package Type | SEMIPACK2 |
| Repetitive Peak Reverse Voltage | 1200V |
| Surge Current Rating | 5.4kA |
| Mounting Type | Panel Mount |
| Maximum Gate Trigger Current | 150mA |
| Maximum Gate Trigger Voltage | 2V |
| Maximum Holding Current | 400mA |
| Pin Count | 7 |
| Dimensions | 94 x 34 x 30mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Repetitive Peak Off-State Current | 40mA |
| Peak On-State Voltage | 1.6V |
| Repetitive Peak Forward Blocking Voltage | 1200V |
