RS PRO Toggle Switch, Panel Mount, On-Off, SPST, Tab Terminal, 250V
- RS Stock No.:
- 419-845
- Manufacturer:
- RS PRO
33 Within 1 working day(s) (IE stock)
550 Within 2 working day(s) (EU stock)
Added
Price Each
€2.68
(exc. VAT)
€3.30
(inc. VAT)
| Units | Per unit |
| 1 - 49 | €2.68 |
| 50 - 99 | €2.13 |
| 100 - 249 | €1.69 |
| 250 - 499 | €1.60 |
| 500 + | €1.55 |
- RS Stock No.:
- 419-845
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

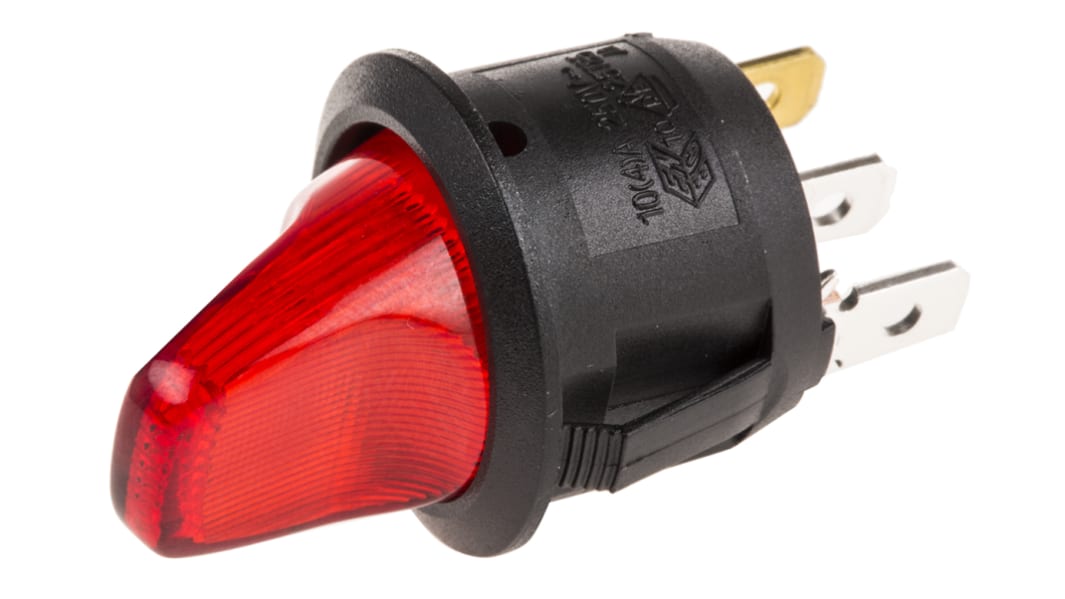

RS PRO SPST Panel Mount Illuminated Red Paddle Toggle Switch
A high-quality paddle toggle switch with a Single Pole Single Throw (SPST) configuration designed for an On-Off action. Constructed with a flame retardant and impact resistant Nylon 66 case to UL94V-2 with a tough Polycarbonate button for a paddle switch fit for industrial and commercial environments.
The RS PRO illuminated toggle switch features a black body with a red illuminated paddle when in the on position and is intended for panel mounting into a 20.2mm diameter cut out using the snap in quick connectors for easy installation. Designed in a latching action which means that once it is set to a position it stays in position and built with 4.8 x 0.8mm quick connect terminals for easy installation.
The panel mount toggle switch is sealed for protection against moisture and water, capable of operating at temperatures of up to 85° C and features compact dimensions of 23 x 40mm including the toggle switch. A hardwearing toggle switch ideal for busy panels.
Featires and Benefits
- Toggle switch
- Red illuminated
- On-Off positions
- Panel mount
- 4.8 x 0.8 mm quick connect terminals
- 125 V (16A)/ 240 V ac (10A) mains rated
- Make and break cycle
- Contact resistance of 50mΩ max
- Operating temperature of -20°C to 85°C
- Nylon 66 case UL94V-2
- Minimum insulation resistance of 500MΩ
- Minimum dielectric strength of 1500 Vrms
Standards and Approvals: RoHS compliant
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | On-Off |
| Contact Current Rating | 16 A @ 125 V ac |
| Mounting Type | Panel Mount |
| Terminal Type | Tab |
| Illuminated | Yes |
| Panel Cut Out Diameter | 20.2mm |
| Actuator Length | 16mm |
| Actuator Material | PC |
| Voltage Rating | 250 V, 125V |
| Panel Cut Out Size | 20.2mm |
| Contact Resistance | 0.05Ω |
| Standards Met | CQC, CSA, ENEC, UL, VDE |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +85°C |
| Maximum Operating Temperature | +85°C |
