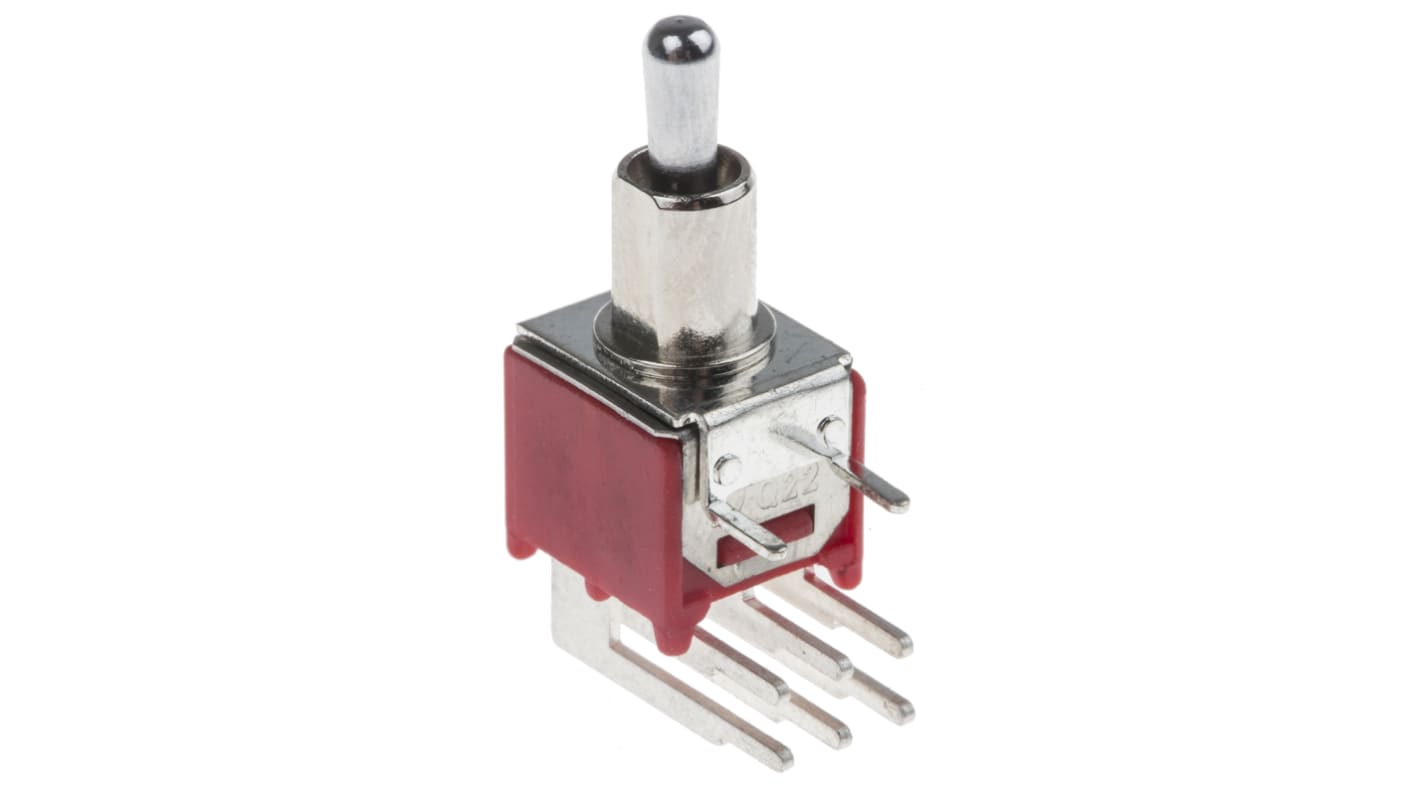

RS PRO Toggle Switch, PCB Mount, On-Off-On, DPDT, Through Hole Terminal
- RS Stock No.:
- 734-7205P
- Manufacturer:
- RS PRO
90 In stock for delivery within 2 working days
Added
Price Each (Supplied in a Bag)
€2.54
(exc. VAT)
€3.12
(inc. VAT)
| Units | Per unit |
| 1 + | €2.54 |
- RS Stock No.:
- 734-7205P
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Toggle Switches, Sub-Miniature - RS Series
RS series of sub-miniature toggle switches with a low contact resistance and are available with either Silver (Q) or Gold (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | On-Off-On |
| Contact Current Rating | 3 A @ 120 V ac |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Panel Cut Out Diameter | 4.95mm |
| Actuator Length | 5.33mm |
| Actuator Material | Chromium Plated Brass |
| Panel Cut Out Size | 4.95mm |
| Contact Material | Silver Plated Brass |
| Contact Resistance | 0.02Ω |
| Mechanical Life | 30000Cycles |
| Standards Met | RoHS & Lead Free |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
