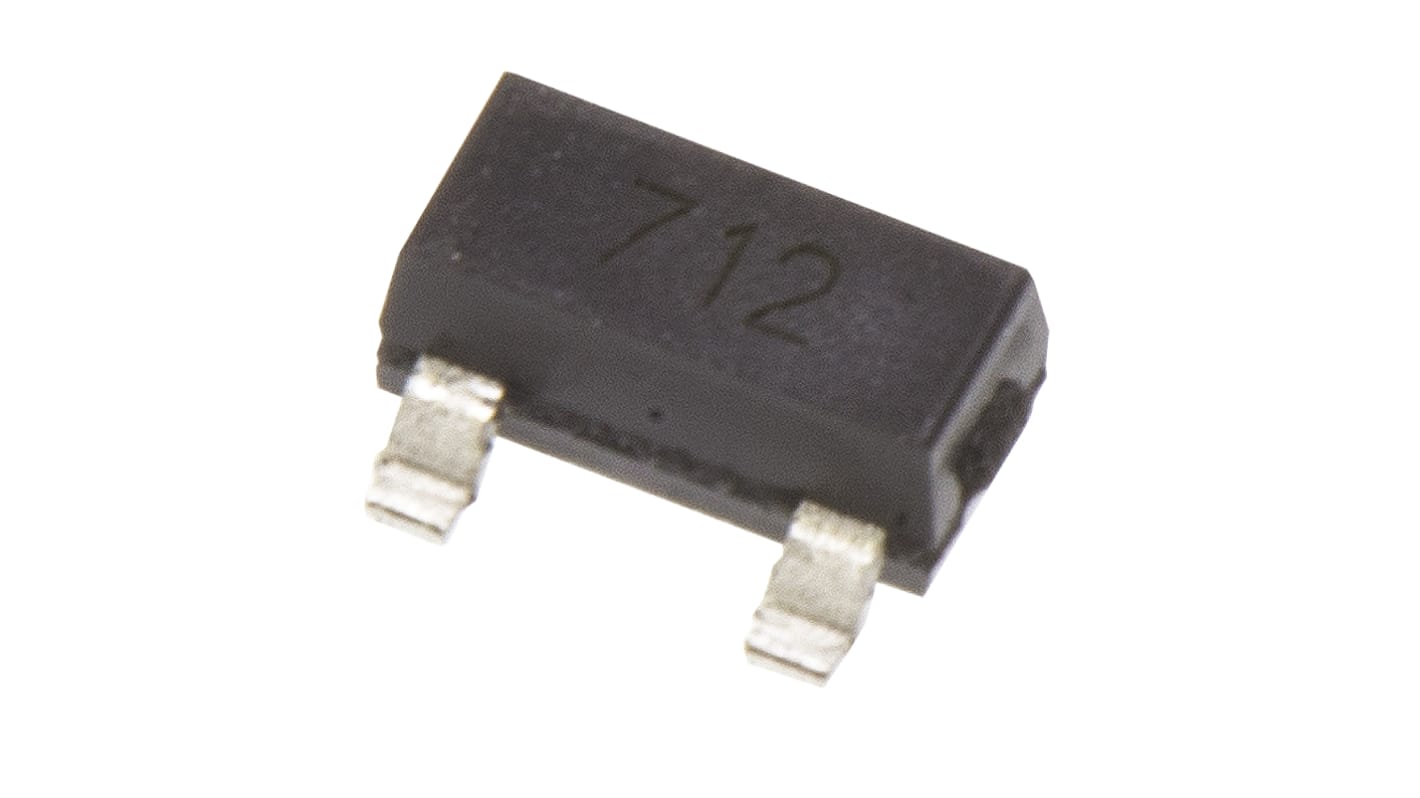

Semtech SM712.TCT, Dual Bi-Directional TVS Diode, 400W, 3-Pin SOT-23

  • RS Stock No. 146-0603
  • Mfr. Part No. SM712.TCT
  • Manufacturer Semtech
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

SM712, Asymmetrical TVS Diode for Extended Common-Mode RS-485

400 Watts peak pulse power (tp = 8/20μs)
Transient protection for asymmetrical data lines to:
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 12A (8/20μs)
Protects two +12V to -7V lines
Low capacitance
Low clamping voltage
Solid-state silicon avalanche technology

Transient Voltage Suppressors, Semtech

Specifications
Attribute Value
Direction Type Bi-Directional
Diode Configuration Series
Maximum Clamping Voltage 26V
Minimum Breakdown Voltage 13.3V
Mounting Type Surface Mount
Package Type SOT-23
Maximum Reverse Stand-off Voltage 12V
Pin Count 3
Peak Pulse Power Dissipation 400W
Maximum Peak Pulse Current 17A
ESD Protection Yes
Number of Elements per Chip 2
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +125 °C
Length 2.9mm
Dimensions 2.9 x 1.3 x 0.95mm
Maximum Reverse Leakage Current 20µA
Height 0.95mm
Test Current 1mA
Width 1.3mm
Temporarily out of stock - back order for despatch 03-02-2020, delivery within 2 working days
Unit of sale: Each (On a Reel of 3000)
0.636
(exc. VAT)
0.782
(inc. VAT)
units
Per unit
Per Reel*
3000 +
€0.636
€1,908.00
*price indicative
