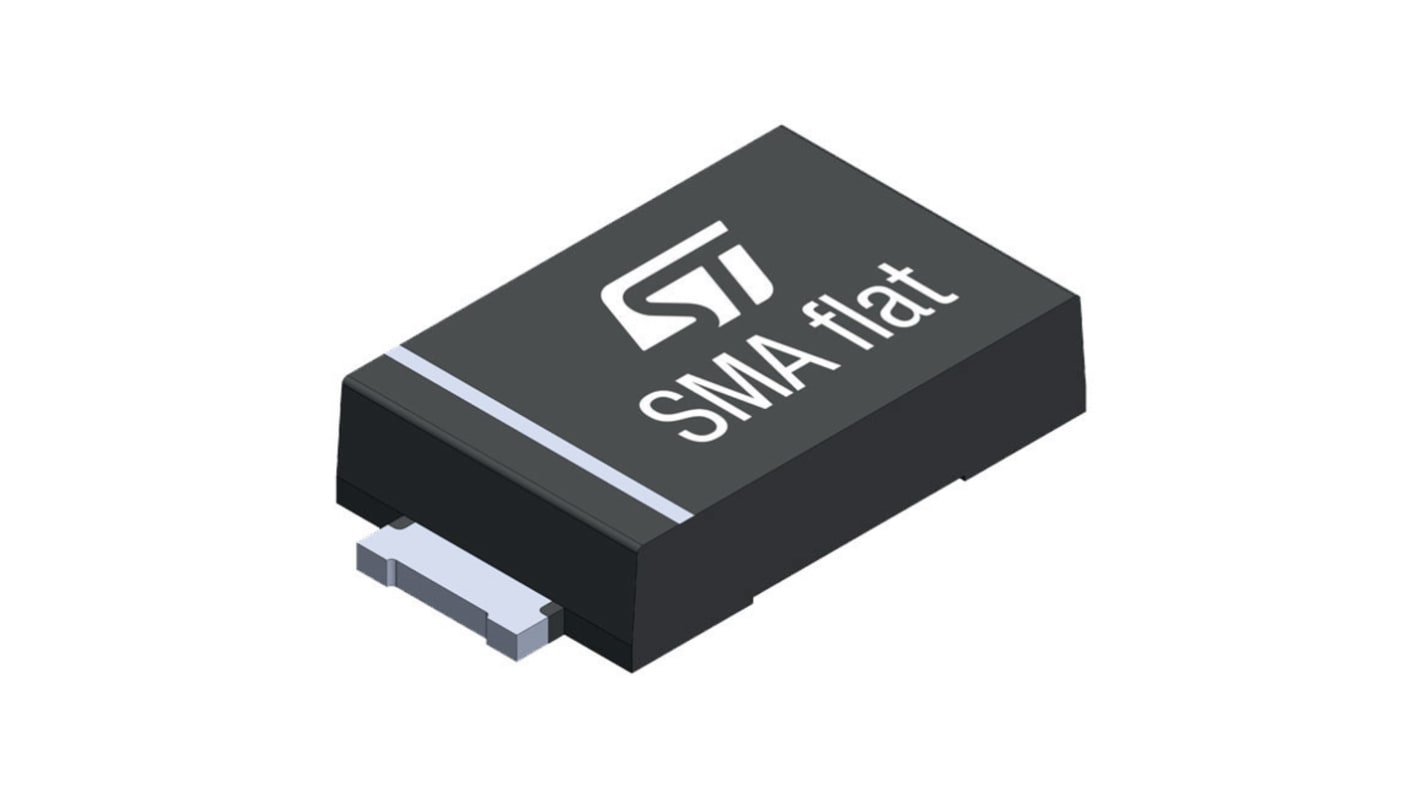

SMA6F16AY, TVS Diodes

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MA
Product Details

The SMA6FY Transil series are designed to protect sensitive automotive circuits against surges and against electrostatic discharges. The Planar technology makes it compatible with high-end circuits where low leakage current and high junction temperature are required to provide long term reliability and stability.

Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
Flat and thin package: 1 mm
Stand-off voltage range from 5 V to 188 V
Unidirectional type
Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
Operating Tj max: 175 °C
High power capability at Tj max.: up to 400 W (10/1000 μs)
Lead finishing: matte tin plating

Specifications
Attribute Value
Diode Configuration Single
Direction Type Uni-Directional
Maximum Clamping Voltage 26 V, 34.7 V
Minimum Breakdown Voltage 17.9V
Mounting Type Surface Mount
Package Type SMA Flat
Maximum Reverse Stand-off Voltage 16V
Pin Count 2
Peak Pulse Power Dissipation 600W
Maximum Peak Pulse Current 23.1 A, 115 A
ESD Protection Yes
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +175 °C
Capacitance 330pF
Length 4.6mm
ESD Voltage 30kV
Working Voltage 16V
Dimensions 4.6 x 2.9 x 1.05mm
Height 1.05mm
Width 2.9mm
Test Current 1mA
Automotive Standard AEC-Q101
Maximum Reverse Leakage Current 1µA
Temporarily out of stock - back order for despatch 27-10-2020, delivery within 2 working days
Unit of sale: Each (On a Reel of 10000)
0.099
(exc. VAT)
0.122
(inc. VAT)
units
Per unit
Per Reel*
10000 - 10000
€0.099
€990.00
20000 - 40000
€0.091
€910.00
50000 +
€0.089
€890.00
*price indicative
