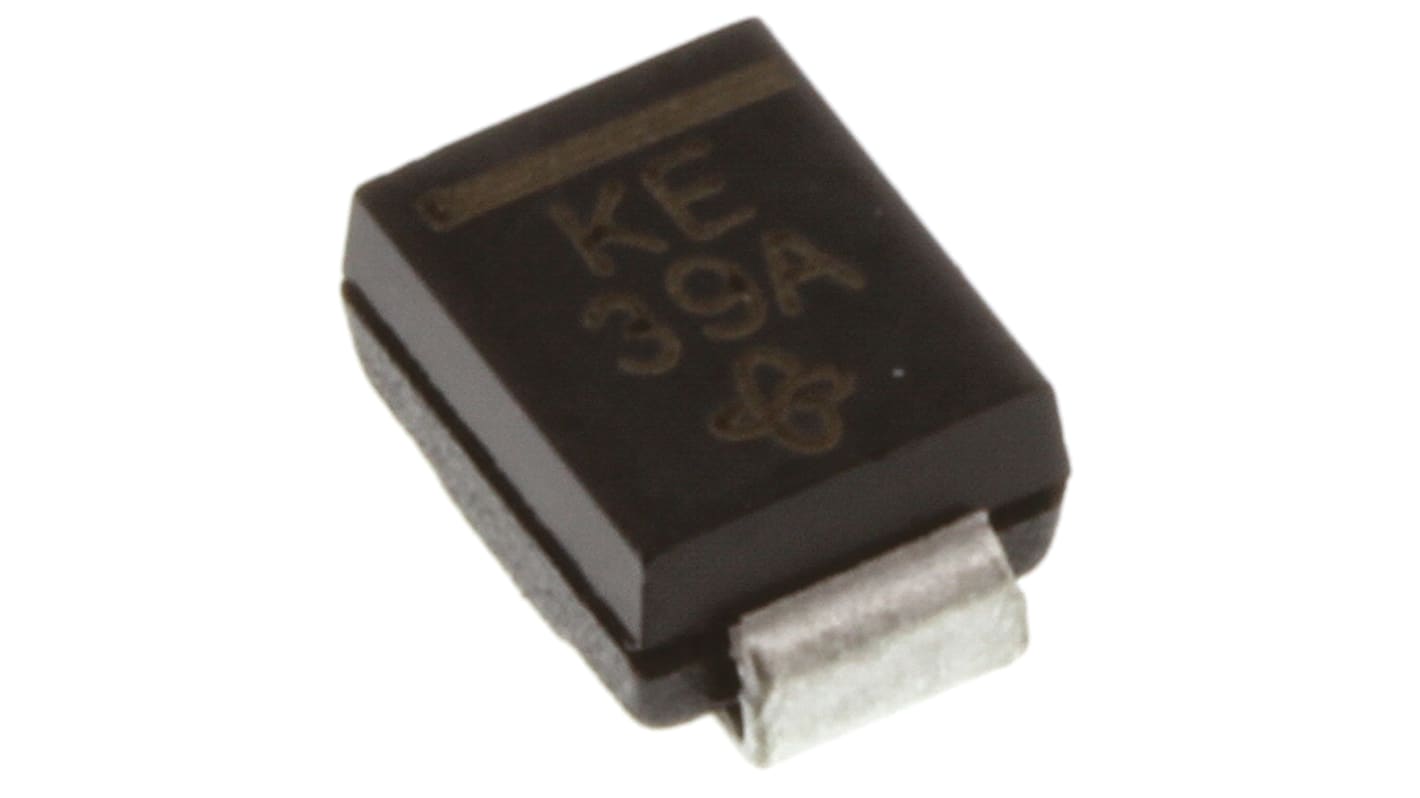

Vishay SMBJ5.0A-E3/52, Uni-Directional TVS Diode, 600W, 2-Pin DO-214AA

  • RS Stock No. 628-7304
  • Mfr. Part No. SMBJ5.0A-E3/52
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TRANSZORB® Transient Voltage Suppressors SMT Unidirectional 600W, SMBJ Series, Vishay Semiconductor

Features:

• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in uni-directional and bi-directional
• 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
• Excellent clamping capability
• Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

Applications:

Use in sensitive electronics protection against voltage
transients induced by inductive load switching and lighting
on ICs, MOSFET, signal lines of sensor units for consumer,
computer, industrial, and telecommunication.

//media.rs-online.com/t_line/L229576-01.gif
//media.rs-online.com/t_line/LD229576-01.gif

Transient Voltage Suppressors, Vishay Semiconductor

Specifications
Attribute Value
Diode Configuration Single
Direction Type Uni-Directional
Maximum Clamping Voltage 9.2V
Minimum Breakdown Voltage 6.4V
Mounting Type Surface Mount
Package Type DO-214AA (SMB)
Maximum Reverse Stand-off Voltage 5V
Pin Count 2
Peak Pulse Power Dissipation 600W
Maximum Peak Pulse Current 65.2A
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Maximum Operating Temperature +150 °C
Test Current 10mA
Maximum Reverse Leakage Current 800µA
Length 4.57mm
Height 2.24mm
Width 3.94mm
Dimensions 4.57 x 3.94 x 2.24mm
165 In stock for delivery within 2 working days
Unit of sale: Each (In a Pack of 5)
0.292
(exc. VAT)
0.359
(inc. VAT)
units
Per unit
Per Pack*
5 - 20
€0.292
€1.46
25 - 45
€0.278
€1.39
50 - 120
€0.234
€1.17
125 - 245
€0.22
€1.10
250 +
€0.204
€1.02
*price indicative
