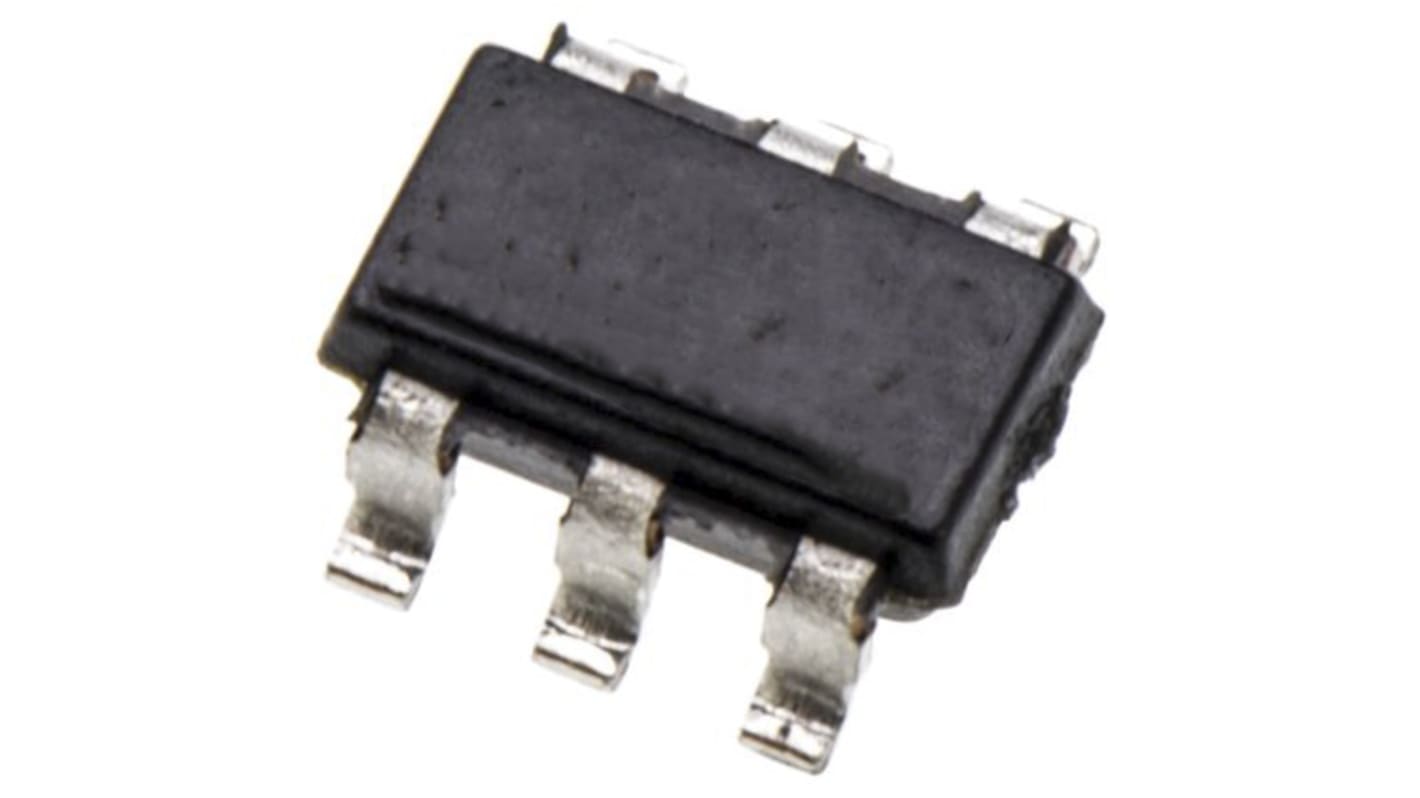

Maxim Integrated MAX2671EUT+T, Upconverter Mixer 2.5GHz Gain=8.9 dB 6-Pin SOT-23
- RS Stock No.:
- 190-8060
- Mfr. Part No.:
- MAX2671EUT+T
- Manufacturer:
- Maxim Integrated
1295 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 5)
€1.926
(exc. VAT)
€2.369
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | €1.926 | €9.63 |
| 10 - 20 | €1.742 | €8.71 |
| 25 - 95 | €1.63 | €8.15 |
| 100 - 245 | €1.398 | €6.99 |
| 250 + | €1.314 | €6.57 |
| *price indicative | ||
- RS Stock No.:
- 190-8060
- Mfr. Part No.:
- MAX2671EUT+T
- Manufacturer:
- Maxim Integrated
Technical data sheets
Legislation and Compliance
Product Details
RF Output Frequencies: 400MHz to 2.5GHz
Low Noise Figure: 9.3dB (900MHz, MAX2671)
+2.7V to +5.5V Single Supply
High Output Intercept Point (OIP3)
5.9dBm at 4.8mA (MAX2660)
7.1dBm at 8.3mA (MAX2661)
0.7dBm at 3.0mA (MAX2663)
9.6dBm at 11.8mA (MAX2671)
7.6dBm at 20.5mA (MAX2673)
1μA Shutdown Mode
Ultra-Small Surface-Mount Packaging
Applications
400MHz/900MHz/2.4GHz ISM
Cell Phones/Cordless Phones
Handheld Radios
IEEE 802.11 and Wireless Data
Personal Communications Systems (PCS)
Wireless Local Area Networks (WLANs)
Low Noise Figure: 9.3dB (900MHz, MAX2671)
+2.7V to +5.5V Single Supply
High Output Intercept Point (OIP3)
5.9dBm at 4.8mA (MAX2660)
7.1dBm at 8.3mA (MAX2661)
0.7dBm at 3.0mA (MAX2663)
9.6dBm at 11.8mA (MAX2671)
7.6dBm at 20.5mA (MAX2673)
1μA Shutdown Mode
Ultra-Small Surface-Mount Packaging
Applications
400MHz/900MHz/2.4GHz ISM
Cell Phones/Cordless Phones
Handheld Radios
IEEE 802.11 and Wireless Data
Personal Communications Systems (PCS)
Wireless Local Area Networks (WLANs)
Specifications
Attribute | Value |
|---|---|
| Maximum Power Gain | 8.9 dB |
| Maximum Input Frequency | 500MHz |
| Maximum Output Frequency | 2.5GHz |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 6 |
| Dimensions | 3 x 1.75 x 1.3mm |
| Length | 3mm |
| Width | 1.75mm |
| Height | 1.3mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 2.7 V |
| Minimum Operating Temperature | -40 °C |
