John Drummond MTL15, LED Voltage tester, 1000V ac/dc, From Unit Under Test Powered, CAT IV With RS Calibration

RS Stock No.:: 180-9300
Mfr. Part No.:: MTL15
Manufacturer:: John Drummond

Temporarily out of stock - back order for despatch when stock is available

Added

Price Each

€184.18

(exc. VAT)

€226.54

(inc. VAT)

Units	Per unit
1 +	€184.18

RS Stock No.:: 180-9300
Mfr. Part No.:: MTL15
Manufacturer:: John Drummond

Technical data sheets

Datasheet

Legislation and Compliance

RoHS Status: Not Applicable

COO (Country of Origin):: PH

Product Details

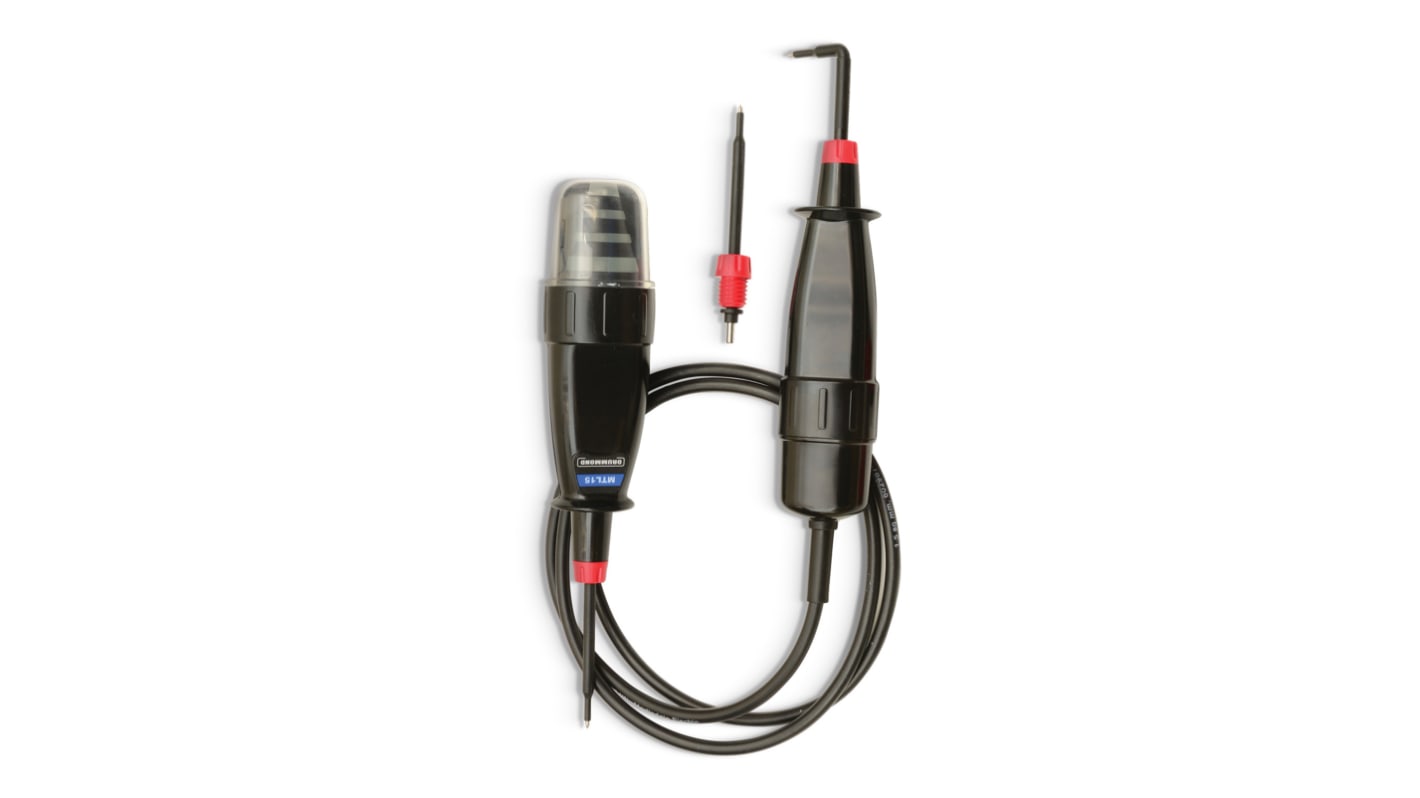

John Drummond Test Lamp

The John Drummond voltage indicator test lamp can detect voltages up to 1000V DC/AC. The robust design has been created according to health and safety executive. The voltage indicator is provided with six interchangeable test probes for support in applications where access is restricted. LED is provided to show a different level of threshold voltage up to 690V. The view is precise as it shows 360˚ viewing angle even in bright sunlight.

Features and Benefits

• Operating temperature range from -10°C to 55°C
• CAT IV safety rating
• Nominal voltage indications at 50V, 230V, 400V, and 690V AC/DC RMS
• Finger protection and insulated tip

Applications

• Wind turbines installations
• Energy intensive process industries
• High power variable speed drives
• UPS systems

Certifications

• IP64 rated
• BS EN61010

Specifications

Attribute	Value
Maximum Voltage	1000V ac/dc
Safety Category	CAT IV 1000V
Display Type	LED
IP Rating	IP64
Calibrated	RSCAL
Power Source	From Unit Under Test
Dimensions	213 x 112 x 72mm
Weight	320g
Height	72mm
Length	213mm
Maximum Operating Temperature	+55°C
Safety Category Voltage	1000V
Width	112mm
Minimum Operating Temperature	-10°C
Model Number p	MTL15
Safety Category Level	CAT IV
