- RS Stock No.:
- 195-9186
- Mfr. Part No.:
- PAXLPV00
- Manufacturer:
- Red Lion
Temporarily out of stock - back order for despatch 24-06-2024, delivery within 2 working days
Added
Price Each
€242.17
(exc. VAT)
€297.87
(inc. VAT)
Units | Per unit |
1 + | €242.17 |
- RS Stock No.:
- 195-9186
- Mfr. Part No.:
- PAXLPV00
- Manufacturer:
- Red Lion
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

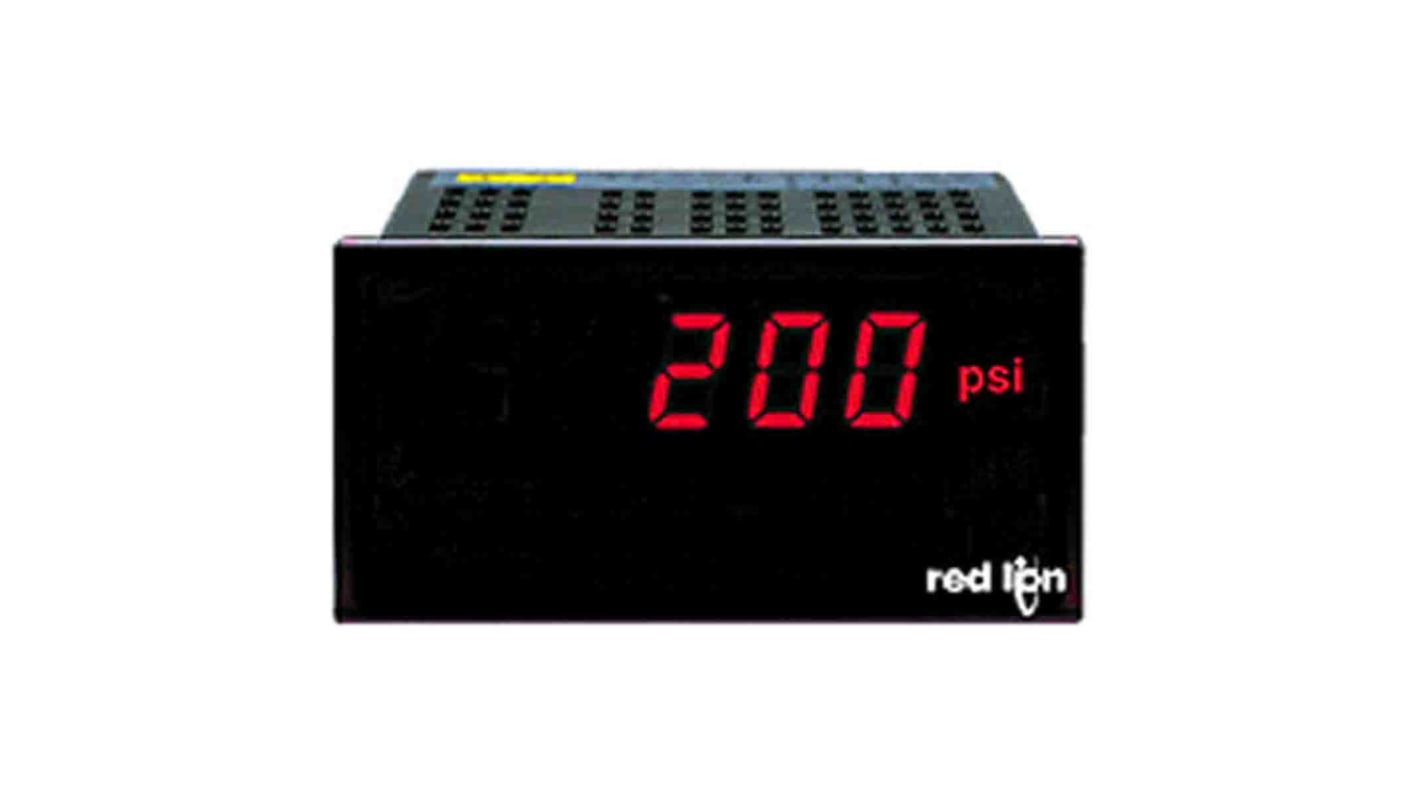

PAX® Lite Process Volt Meter
1/8 DIN (50 mm x 97 mm)
3 1/2 Digit, 0.56" (14 mm) LED
24 VDC Excitation Supply
Wide Span & Offset Scaling Range (covers 1 to 5 VDC process input)
Over Range Indication
Selectable Decimal Points
±25 Volt DC Maximum Input
1/8 DIN (50 mm x 97 mm)
3 1/2 Digit, 0.56" (14 mm) LED
24 VDC Excitation Supply
Wide Span & Offset Scaling Range (covers 1 to 5 VDC process input)
Over Range Indication
Selectable Decimal Points
±25 Volt DC Maximum Input
Specifications
Attribute | Value |
---|---|
Current Type | AC |
Number of Digits | 3.5 |
Display Type | LED |
Cutout Height | 45mm |
Cutout Width | 92mm |
Depth | 104.1mm |
Supply Voltage | 85 → 250 V ac |
Digit Height | 14.2 mm |
Analogue Effect | Digits Only |
Minimum Temperature | 0°C |
Meter Type | Voltmeter |
Maximum Temperature | +60°C |
Measurement Range | ±25V dc |
Series | PAX Lite |
