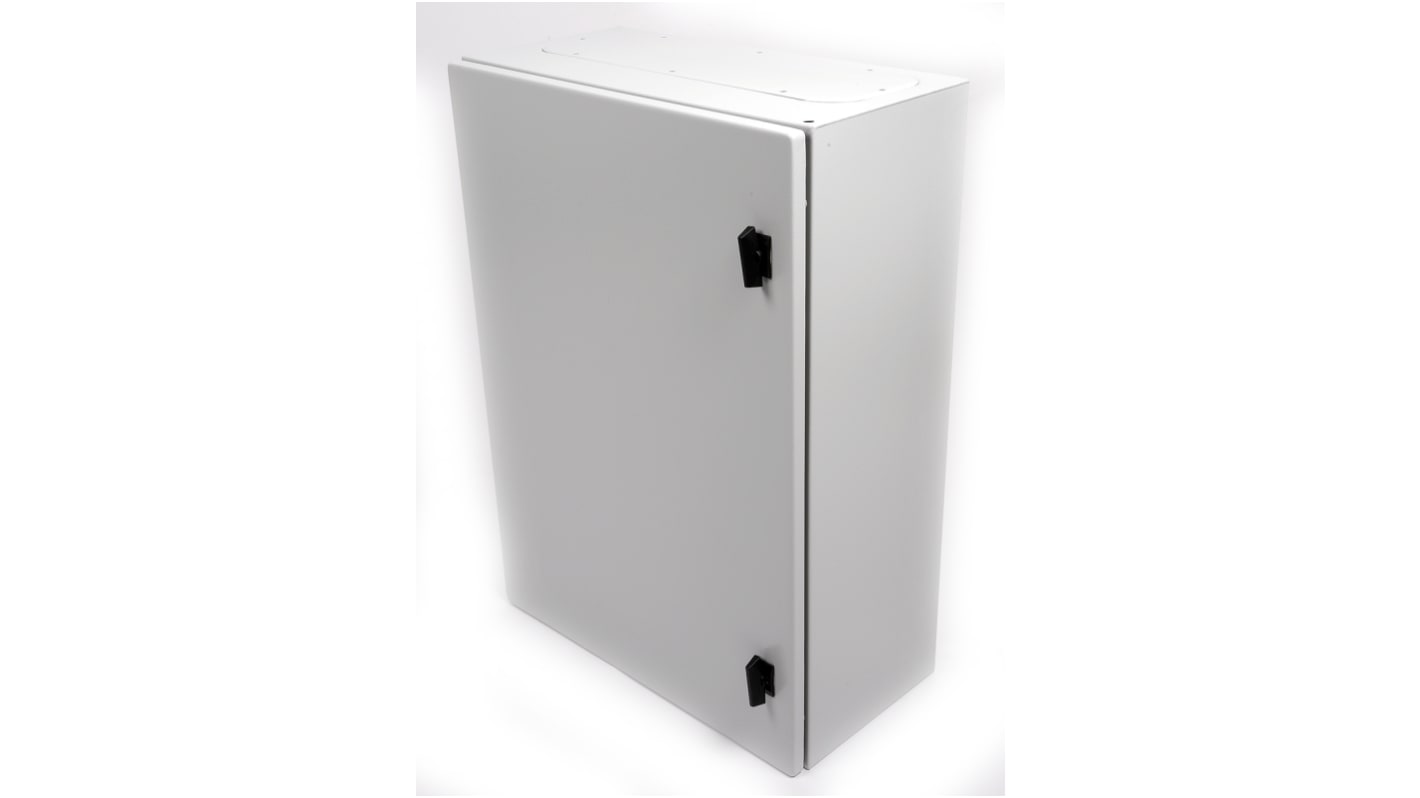

Schneider Electric Spacial CRN, Steel Wall Box, IP66, 250mm x 700 mm x 500 mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

IP66 Spacial CRN Enclosures

The range of Spacial CRN enclosures from Schneider Electric have a steel monobloc construction with a punched steel door. The sides are made from a single folded section and the back is welded with a double profile to form a protected sealed area. The Spacial CRN enclosures are painted externally and internally with a textured light grey RAL 7035 epoxy-polyester resin.

Features & Benefits

• IP66 protection meaning the enclosures are dust tight and protect against powerful jets of water and heavy seas
• External mechanical impact resistance of IK10 (joules 20) meaning the wall box gives protection against a 5 kg object dropped from 40 cm in height
• Easily reversible door, fixed with metal hinges allowing the door to open to 120°
• 4 wall fixing drill holes sealed with plastic plugs to ensure the degree of protection
• Welded earth studs on door and body

Applications

The Spacial CRN enclosures are designed for electrical distribution, industrial automation and industrial control.

Note

Wall brackets available seperately.
Not all enclosures are supplied with a mounting (chassis) plate, please refer to the attribute data for details.

Schneider Electric NSYCRN75250 Wall Mounting Enclosure

What are the external dimensions?

NSYCRN75250 has external dimensions of 700 x 500 x 250 mm.

What is supplied?

The NSYCRN75250 enclosure is supplied with a 1 body, 1 plain door, 1 cable gland plate and 1 steel body.

Can the wall box be used outside?

The NSYCRN75250 has an Ingress Protection rating of IP66 so can be used inside or outside.

What type of lock does it have?

The enclosure has a 3 mm double-bar lock.

Standards

IEC 62208 which is the reference standard regarding empty enclosures for device assemblies for protection and manoeuvre to low voltage

Specifications
Attribute Value
External Height 700 mm
External Width 500 mm
External Depth 250mm
Body Material Steel
Transparent Door No
IP Rating IP66
Chassis Plate No
Door Lock Type Double Bar
Gland Plate Yes
Colour Grey
Series Spacial CRN
RAL Code RAL 7035
Fixing Kit No
Internal Mounting Type Panel
External Mounting Type Bracket
11 In stock for delivery within 2 working days
Unit of sale: Each
118.11
(exc. VAT)
145.28
(inc. VAT)
units
Per unit
1 - 4
€118.11
5 - 14
€113.31
15 +
€108.41
