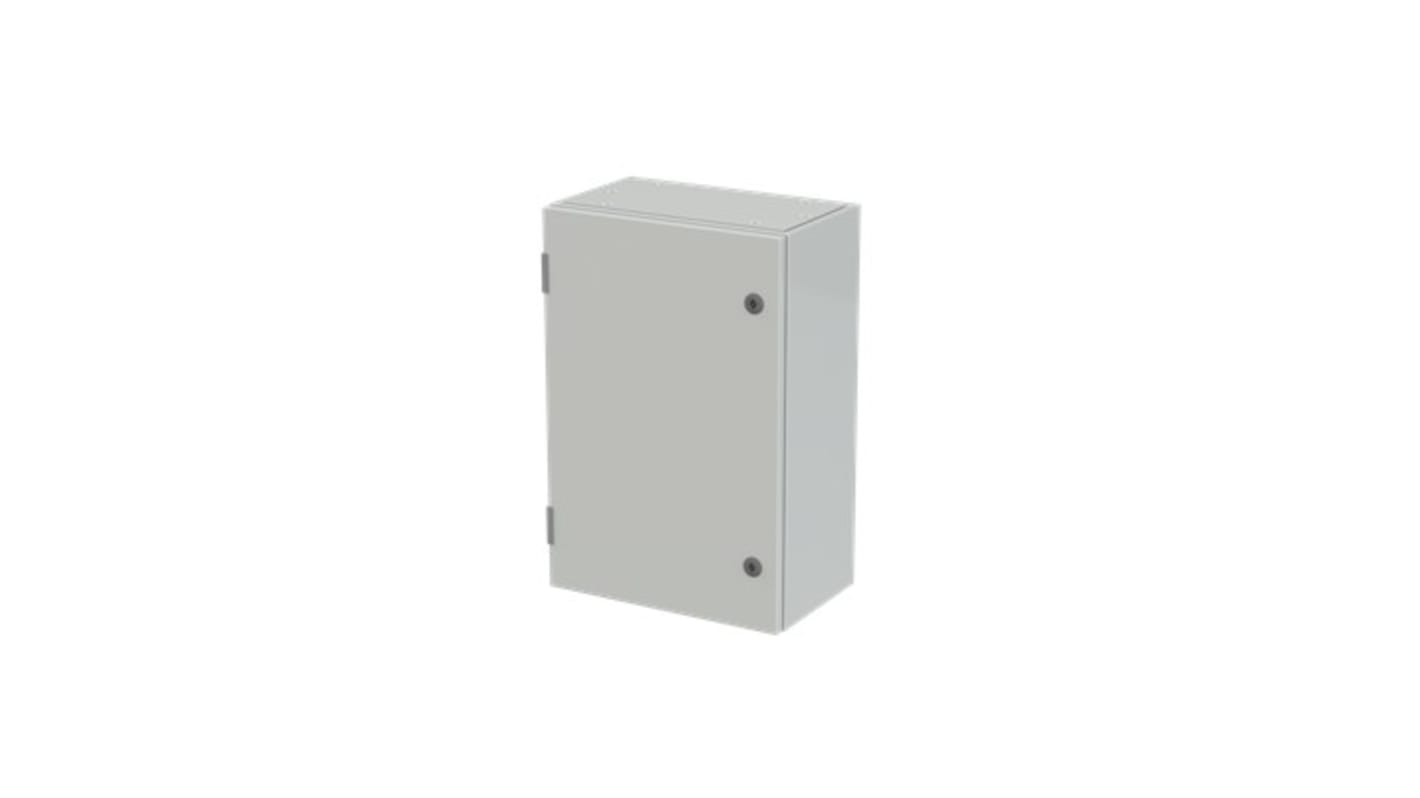

ABB SR2 Monobloc Series Steel Wall Box, IP65, 600 mm x 400 mm x 250mm
- RS Stock No.:
- 768-5692
- Mfr. Part No.:
- SRN6425K SR2-SRN6425K
- Manufacturer:
- ABB
Temporarily out of stock - back order for despatch 28-06-2024, delivery within 2 working days
Added
Price Each
€188.95
(exc. VAT)
€232.41
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €188.95 |
| 5 - 9 | €179.49 |
| 10 - 24 | €170.06 |
| 25 - 49 | €160.61 |
| 50 + | €151.17 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 768-5692
- Mfr. Part No.:
- SRN6425K SR2-SRN6425K
- Manufacturer:
- ABB
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
SR2 Monobloc Enclosure
The range of ABB IP65 rated SR2 monobloc enclosures are made from steel. The wall-mounted enclosures are designed to fulfil the typical needs of the builder or installer of control panels.
Features and Benefits
• Can be stacked vertically, allowing two switchboard sections separate from each other to be made inside a single structure. This is done by removing the fairlead plates and inserting an optional IP65 sealing gasket. Assembly is then done by using the same holes used for the fairlead plates
• Supplied with mounting plate
• IP65 means that the wall boxes are protects against dust and water projected from a nozzle
• Fitted with two cable entry flanges (one for the top and one for the bottom side) so that the whole enclosure is made reversible, offering the possibility of having door opening either on the right or left
• Available with a solid door or a glass door
• Wide range of sizes available
• Supplied with mounting plate
• IP65 means that the wall boxes are protects against dust and water projected from a nozzle
• Fitted with two cable entry flanges (one for the top and one for the bottom side) so that the whole enclosure is made reversible, offering the possibility of having door opening either on the right or left
• Available with a solid door or a glass door
• Wide range of sizes available
Features and Benefits
The SR2 Monobloc wall-mounted enclosures are ideal for making switchgear and control gear switchboards for various industrial machines: from large machinery with automated production lines, down to the typical installations of on-board machine switchboards, boilers and heating plants.
Standards
CEI EN 62208, CEI EN 60439-1, IEC61439-1-2.
Approvals
UL (Underwriters Laboratories) and CSA (Canadian Standards Association) Type 12 marks.
Specifications
Attribute | Value |
|---|---|
| External Height | 600 mm |
| External Width | 400 mm |
| External Depth | 250mm |
| Body Material | Steel |
| Transparent Door | No |
| IP Rating | IP65 |
| Chassis Plate | Yes |
| Door Lock Type | Key |
| Gland Plate | No |
| Colour | Grey |
| Series | SR2 Monobloc |
| Fixing Kit | No |
| Internal Mounting Type | Panel |
| External Mounting Type | Bracket |
