Ansmann 3.6W Plug-In AC/DC Adapter 3V dc Output, 300 → 600mA Output
- RS Stock No.:
- 702-3255
- Mfr. Part No.:
- 5311103
- Manufacturer:
- Ansmann
11 Within 1 working day(s) (IE stock)
198 Within 2 working day(s) (EU stock)
Added
Price Each
€11.35
(exc. VAT)
€13.96
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €11.35 |
| 5 - 9 | €10.79 |
| 10 - 24 | €10.21 |
| 25 - 49 | €9.64 |
| 50 + | €9.09 |
- RS Stock No.:
- 702-3255
- Mfr. Part No.:
- 5311103
- Manufacturer:
- Ansmann
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

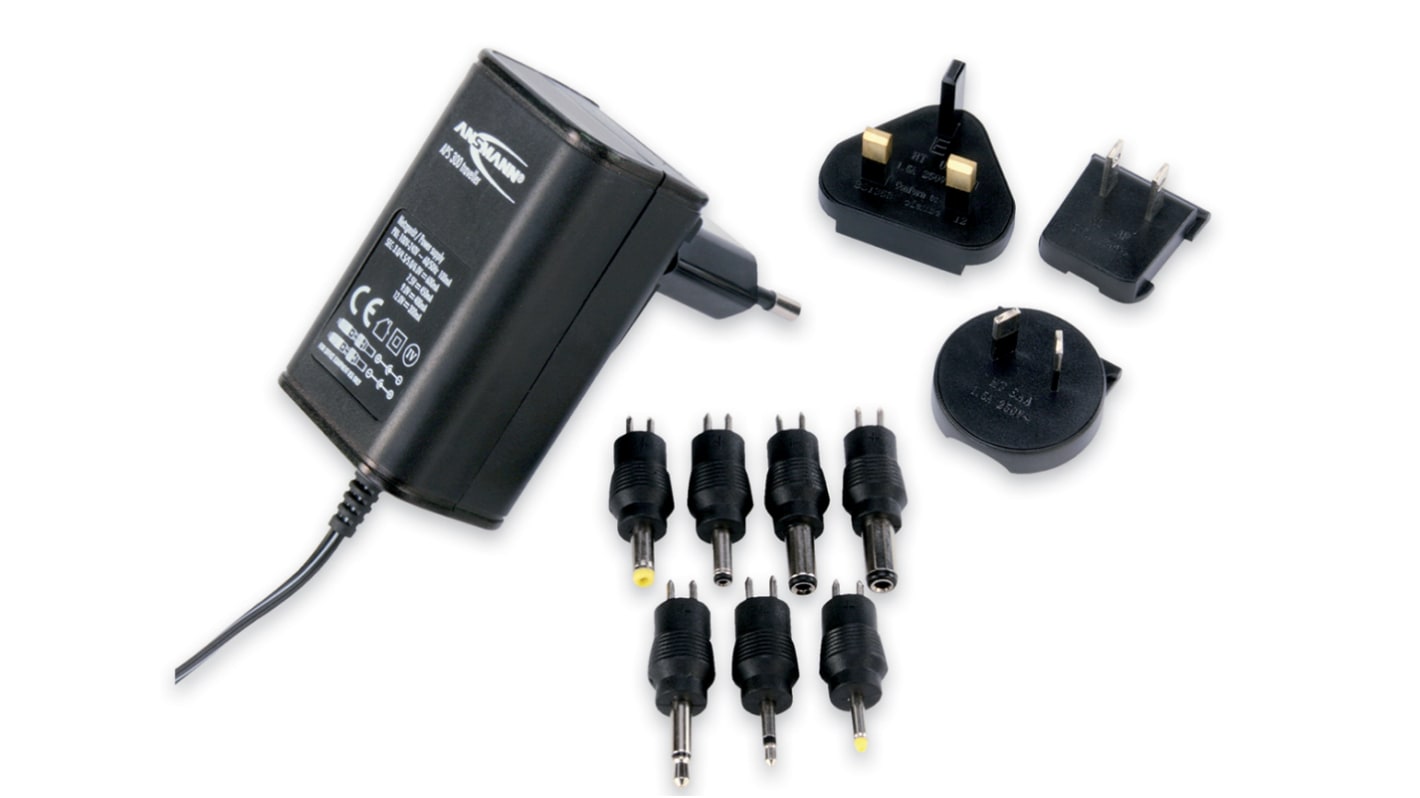

Ansmann Power Supply
The Ansmann APS300 series plug-in power supply has a regulated output voltage within the range of 3VDC to 12VDC. This plug-top adapter power supply has a selectable output voltage along with 7 interchangeable output connectors. It supports numerous applications due to the wide range of input (100-240V AC) that complies with the universal standard and changeable input plug for use in the UK, Europe, USA, Japan and Australia. It is ErP compliant and suitable for use with small electrical devices.
Note:
Conforms to energy-related product directive 2009/125/EC.
Note:
Conforms to energy-related product directive 2009/125/EC.
Features and Benefits
Output lead is 1.8m with polarity inverter and set of 7 connectors
Output power is 3.6W
Output current ranges from 300mA to 600mA
Low standby power consumption is less than 0.3W
Supplied with 7 different output connectors
Regulated output voltage
short-circuit proof
Selectable output voltages via rotary switch
Double insulation
Output power is 3.6W
Output current ranges from 300mA to 600mA
Low standby power consumption is less than 0.3W
Supplied with 7 different output connectors
Regulated output voltage
short-circuit proof
Selectable output voltages via rotary switch
Double insulation
Certifications
ErP level VI compliance
Specifications
Attribute | Value |
|---|---|
| Adapter Type | Plug-In Adapter |
| Plug Type | Australia, European, UK, US |
| Output Voltage | 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V dc, 12V dc |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac |
| Output Current | 300 → 600mA |
| Maximum Temperature | +25°C |
| Output Connector | Interchangeable |
| Input Connector | Universal Plug |
| Number of Outputs | 1 |
| Power Rating | 3.6W |
| Regulated/Unregulated | Regulated |
| Cable Length | 1.8m |
| Medical Approved | No |
| Standards Met | ErP Compliant |
| MTBF | 70000h |
| Depth | 74mm |
| Minimum Temperature | 0°C |
| Length | 69mm |
| Energy Efficiency Level | V |
| Type | AC/DC Adapter |
| Load Regulation | ±10% |
| Width | 42mm |
