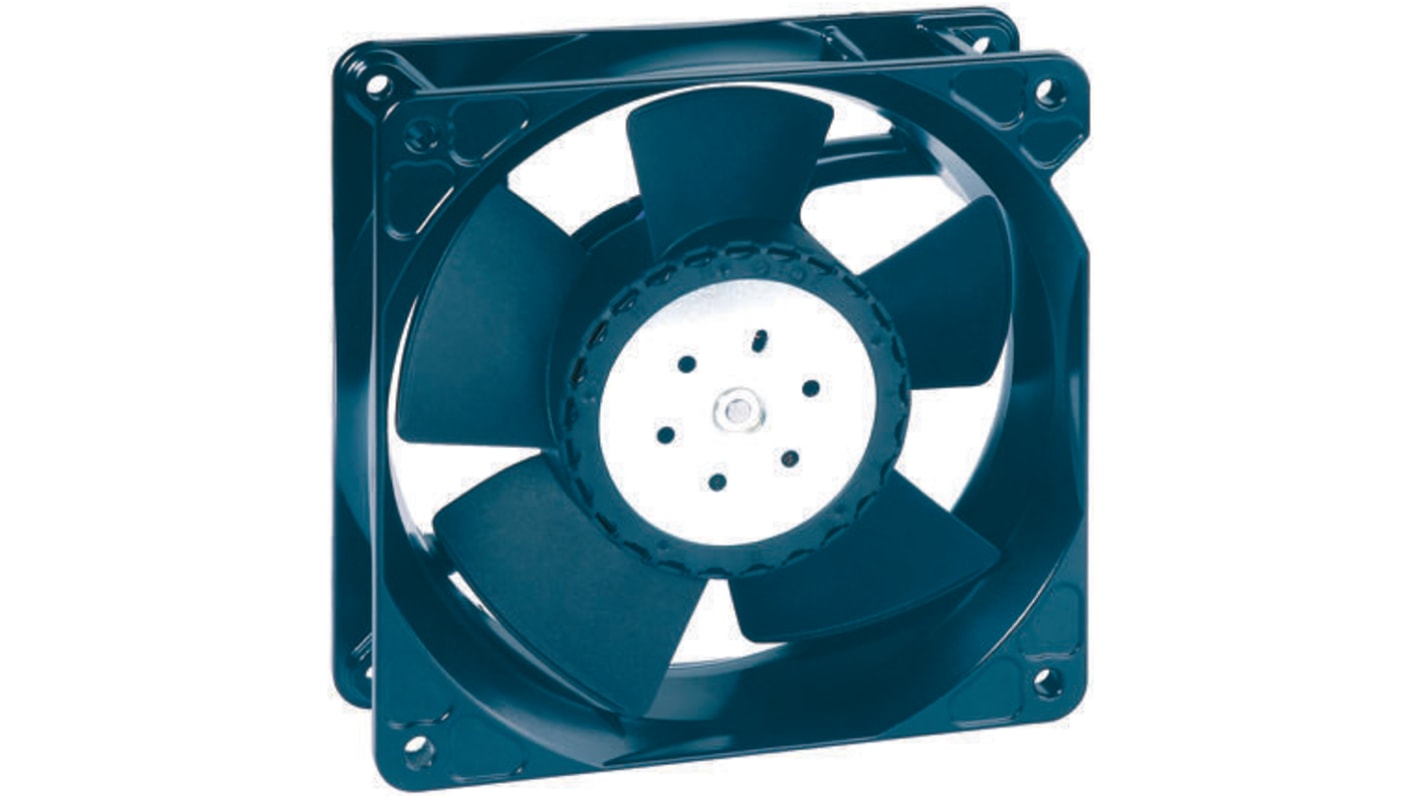

ebm-papst 4100 NH7 - S-Force Series Axial Fan, 48 V dc, DC Operation, 500m³/h, 90W, 119 x 119 x 38mm
- RS Stock No.:
- 557-694
- Mfr. Part No.:
- 4118N/2H7P
- Manufacturer:
- ebm-papst
36 In stock for delivery within 2 working days
Added
Price Each
€203.44
(exc. VAT)
€250.23
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €203.44 |
| 5 - 9 | €187.16 |
| 10 - 24 | €179.03 |
| 25 - 49 | €166.82 |
| 50 + | €146.48 |
- RS Stock No.:
- 557-694
- Mfr. Part No.:
- 4118N/2H7P
- Manufacturer:
- ebm-papst
Technical data sheets
Legislation and Compliance
Product Details
S-Force High Performance Compact Fans
The 6300TD series provides a compact solution allied with high performance. Permits closed-loop speed control and monitoring which are becoming increasingly important in applications. This fan series is particularly suitable for the cooling of high-performance electronic components, such as those in servers, TCA systems, telecommunication devices, inverter drives and many other industrial applications.
• Performance from 600m³/h to a maximum of 930m³/h, depending on model
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
• PWM control input
• Open-collector tachometer signal output as standard
• Compatible with DCP and TMS controllers
• S-Force family
Note
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 48 V dc |
| AC or DC Operation | DC |
| Height | 119mm |
| Power Consumption | 90W |
| Width | 119mm |
| Depth | 38mm |
| Dimensions | 119 x 119 x 38mm |
| Air Flow | 500m³/h |
| Noise Level | 76dB |
| Fan Speed | 9500rpm |
| Sensor Type | Open Collector |
| Bearing Type | Ball |
