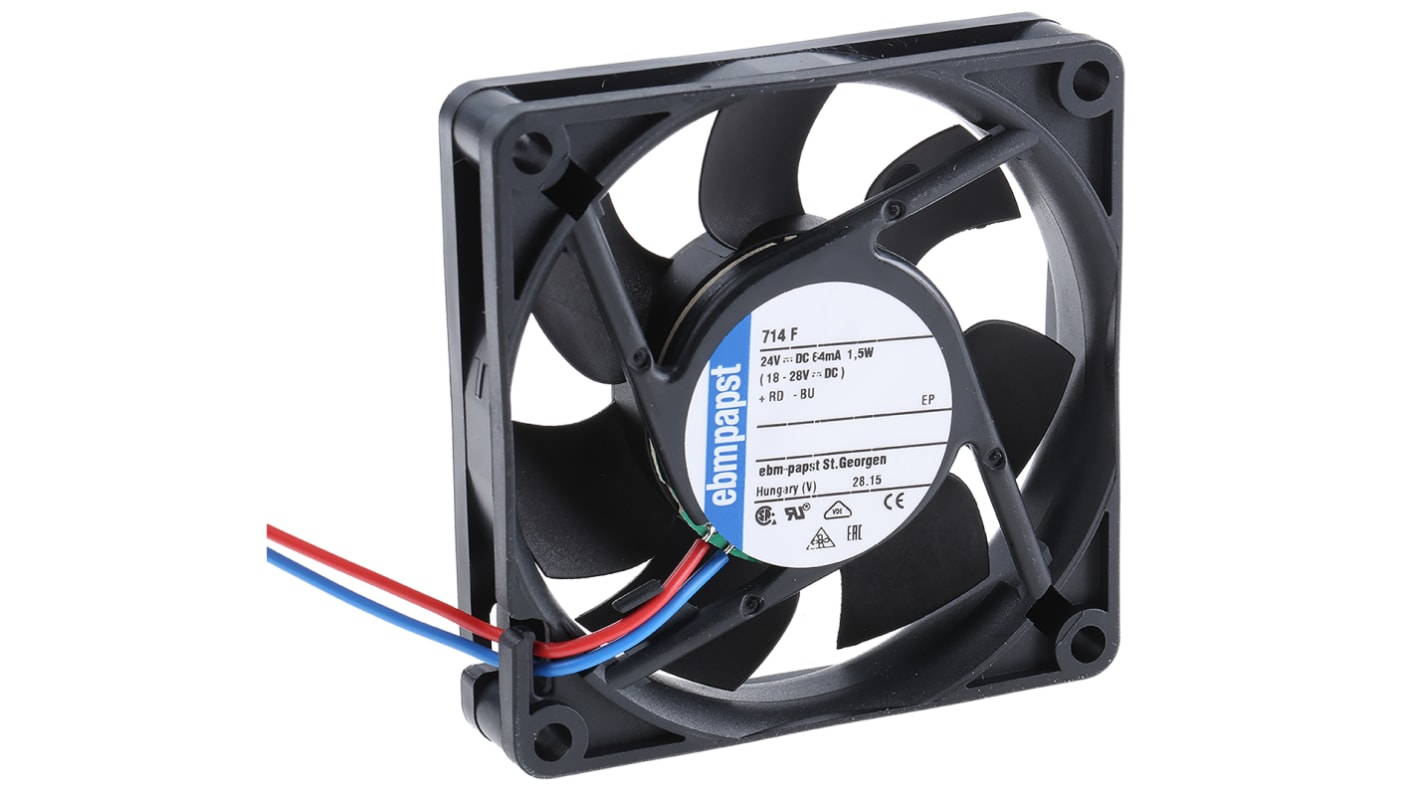

ebm-papst 700F Series Axial Fan, 70 x 70 x 15mm, 44m³/h, 1.5W, 24 V dc

  • RS Stock No. 457-7396
  • Mfr. Part No. 714F
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

Miniature and Slimline Fans

ebm papst offer a wide range of DC axial fans that can be integrated into a range of concept devices. ebm papst DC fans have electronically commutated drives which protect against reverse polarity. DC fans have the added feature of a long life expectancy due to the increased efficiency of the brushless drives.

• Ideal for low profile applications
• Can be mounted for blowing or extracting

Approvals

-

Specifications
Attribute Value
Supply Voltage 24 V dc
Dimensions 70 x 70 x 15mm
Height 70mm
AC or DC Operation DC
Width 70mm
Power Consumption 1.5W
Depth 15mm
Maximum Current 63mA
Air Flow 44m³/h
Noise Level 38dB
Fan Speed 5300rpm
Bearing Type Sleeve
69 In stock for delivery within 2 working days
Unit of sale: Each
24.60
(exc. VAT)
30.26
(inc. VAT)
units
Per unit
1 - 4
€24.60
5 - 9
€22.39
10 - 24
€20.30
25 - 49
€18.45
50 +
€17.22
