RS PRO Axial Fan, 24 V dc, DC Operation, 68m³/h, 2.41W, 100mA Max, 80 x 80 x 25mm
- RS Stock No.:
- 619-7122
- Manufacturer:
- RS PRO
224 In stock for delivery within 2 working days
Added
Price Each
€21.30
(exc. VAT)
€26.20
(inc. VAT)
| Units | Per unit |
| 1 - 4 | €21.30 |
| 5 - 9 | €20.30 |
| 10 - 24 | €19.36 |
| 25 - 49 | €18.53 |
| 50 + | €17.75 |
- RS Stock No.:
- 619-7122
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

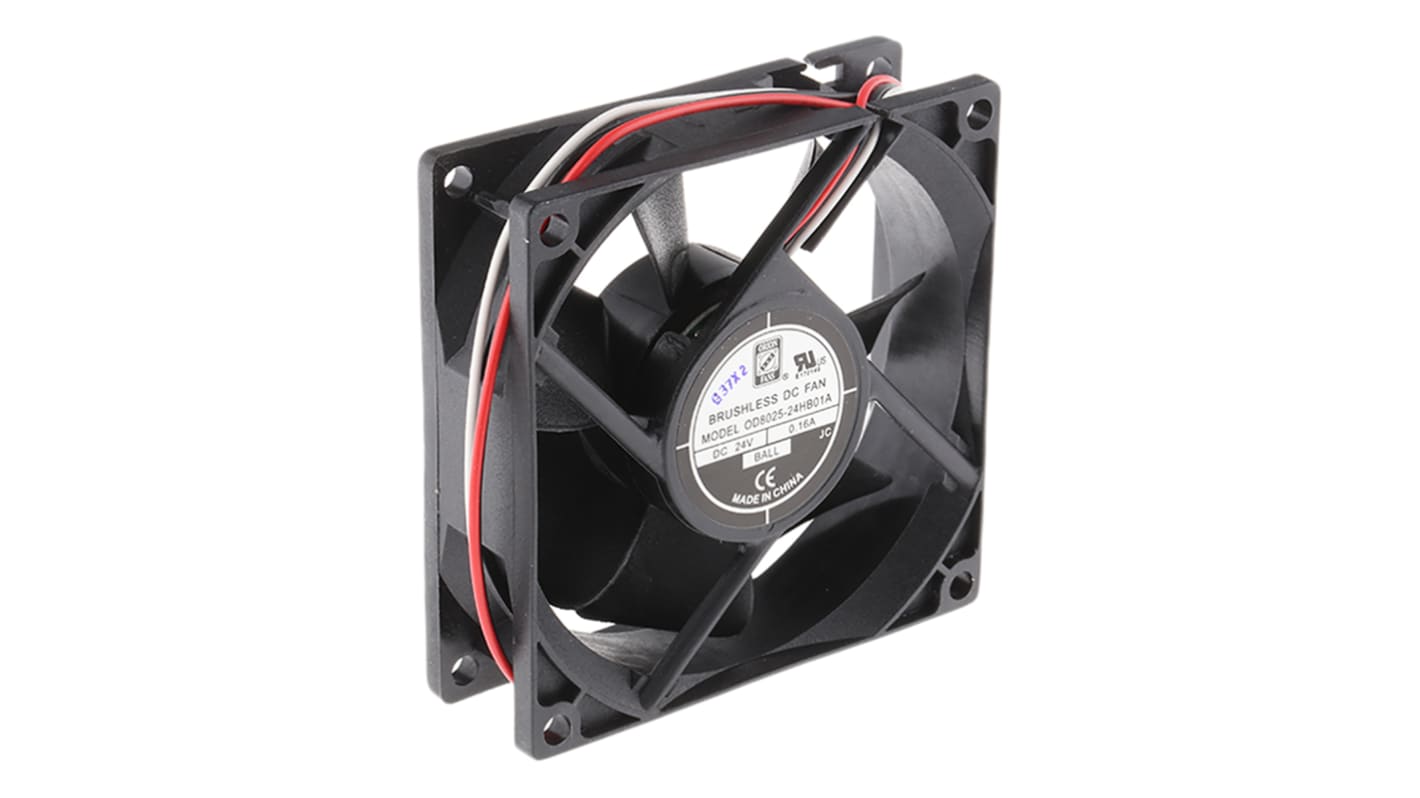

RS PRO 24 V DC, DC Axial Fan, 80 x 80 x 25 mm, 68 m³/h, 2.41 W
Need a way to ventilate and cool your instruments and devices? This axial fan from RS PRO allows your equipment to stay cool in its cabinet or enclosure and prevents it from overheating.
Its PBT (polybutylene terephthalate) thermoplastic composition won't ignite when exposed to fire, making it a safe choice. It's also resistant to chemicals and stains, making it easy to wipe clean.
The axial fan complies with Restriction of Hazardous Substances (RoHS) standards, so it contains only minimal amounts of any hazardous materials. Use this versatile item in your server racks to cool your routers, patch panels and hubs.
Its PBT (polybutylene terephthalate) thermoplastic composition won't ignite when exposed to fire, making it a safe choice. It's also resistant to chemicals and stains, making it easy to wipe clean.
The axial fan complies with Restriction of Hazardous Substances (RoHS) standards, so it contains only minimal amounts of any hazardous materials. Use this versatile item in your server racks to cool your routers, patch panels and hubs.
Features and Benefits
- DC operation
- Airflow of 68 m³/h
- Ball-bearing type
- Dimensions of 80 x 80 x 25 mm
- Backward direction of curve
- Fan speed of 3100 rpm (rotations per minute)
- Maximum current of 100 mA
- Noise level of 35 dB
- Power consumption of 2.41 W
- Open collector sensor output type
- Special features of auto restart, brushless, locked rotor protected and polarity protected
- Static pressure of 0.16 in/H2O
- Supply voltage of 24 V DC
- Lead wire termination type
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Height | 80mm |
| AC or DC Operation | DC |
| Width | 80mm |
| Power Consumption | 2.41W |
| Maximum Current | 100mA |
| Depth | 25mm |
| Termination Type | Lead Wire |
| Dimensions | 80 x 80 x 25mm |
| Air Flow | 68m³/h |
| Noise Level | 35dB |
| Fan Speed | 3100rpm |
| Sensor Type | Open Collector |
| Direction of Curve | Backward |
| Bearing Type | Ball |
