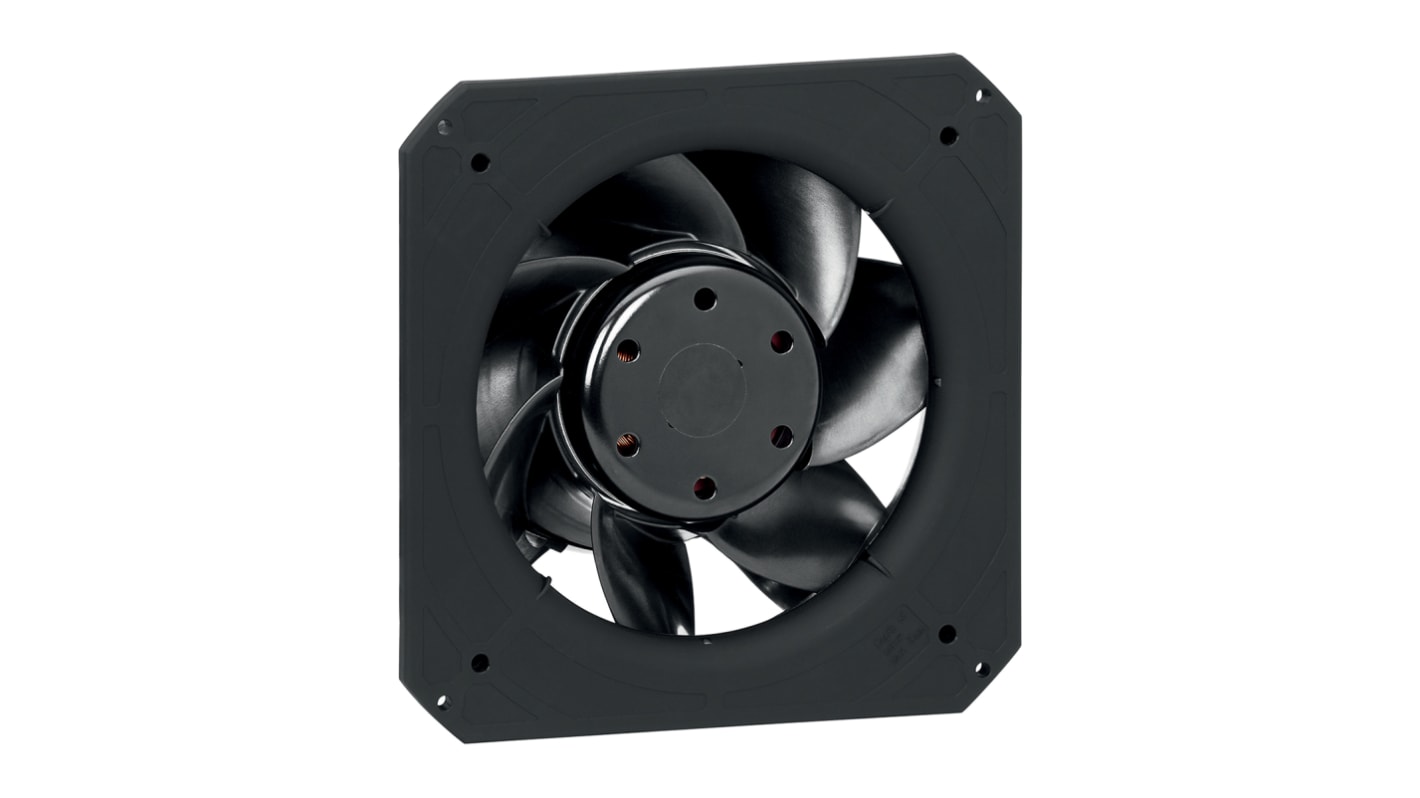

ebm-papst Axial Fan, 24 V dc, DC Operation, 1020m³/h, 95W, 4.7A Max, IP44, 225 x 225 x 80mm

These diagonal module fans feature a single inlet and are manufactured with a pre-fitted support bracket. The main advantages of a diagonal fan over an axial fan is a higher pressure range. These new compact diagonal fans offer significantly more pressure with a much higher air flow. These features allow it to be used in applications demanding intense cooling with tightly spaced components.

They feature tachometer output giving you the ability to monitor the fans speed. It also incorporates motor current limiting, soft start and a control input choice of either 0 to 10 V dc or PWM. Both units offer reverse polarity and locked rotor protection with stock number 912-6139 also features over voltage protection.

Diagonal module provides increased pressure and airflow
Integrated support bracket
Motor bearing: Ball bearing for durability and prolonged life span
Tachometer output
Motor protection
Wide operating temperature range: -40°C to +80°C
