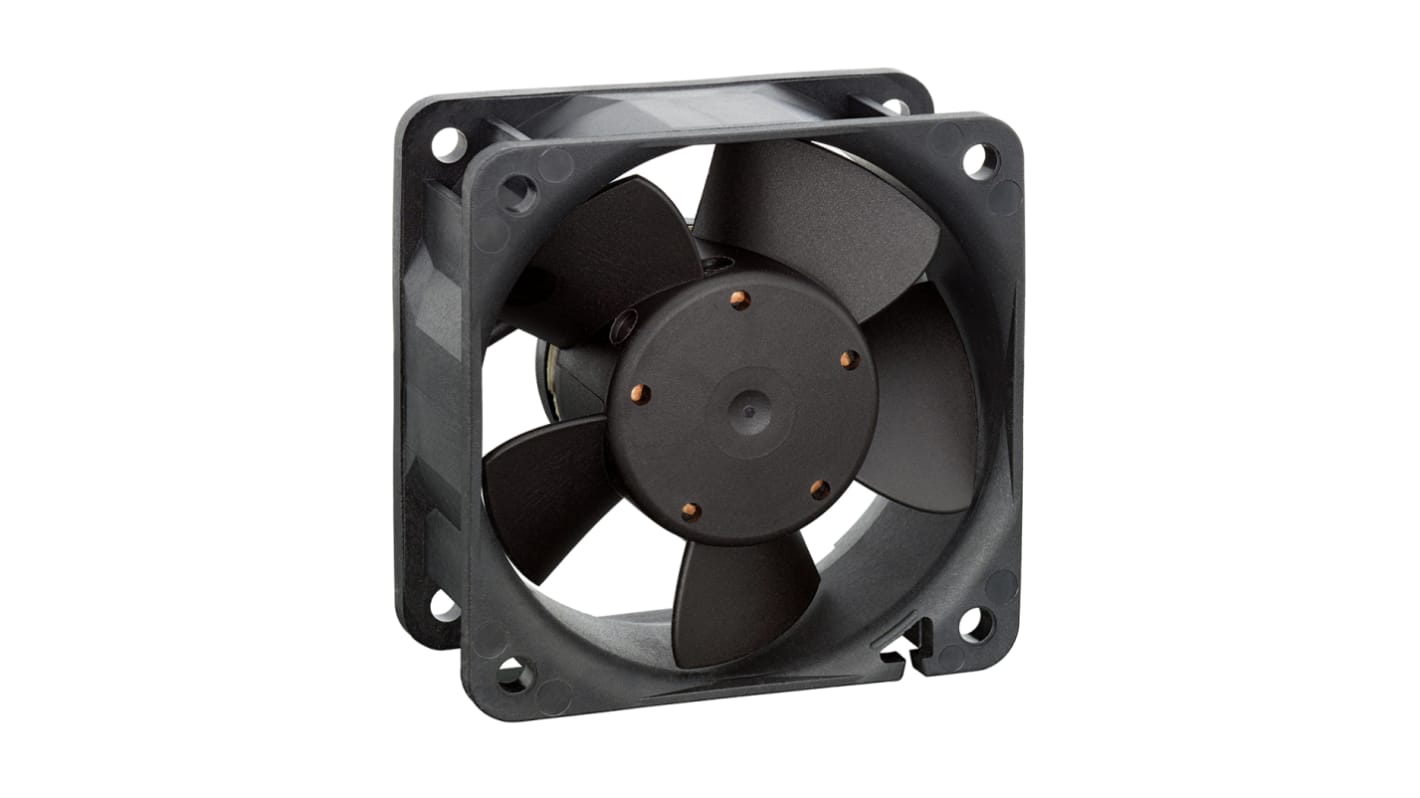

ebm-papst 600N Series Axial Fan, 60 x 60 x 25.4mm, 43m³/h, 1.8W, 12 V dc, IP68

  • RS Stock No. 914-4241
  • Mfr. Part No. 612NHU-181
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): HU
Product Details

ebm-papst 600 Series Ball Bearing DC Axial Fans

Ebm-papst’s 600 series of DC axial fans have a ball bearing design to facilitate smooth operation at any orientation. They are protected against reverse polarity and locking, and feature fully integrated electronic communication for ease of use. These ball bearing fans are ideal for high performance thermal management.

Features and Benefits

• Air exhaust over struts
• Connection via single strands (AWG 24)
• Fibreglass-reinforced plastic construction
• Speed Signal
• Go / No-go alarm
• Alarm with limit speed
• External and internal temperature sensor
• PWN and Analogue control input

Applications

Ball bearing axial fans are often used to cool high density computing equipment, where high performance is required and noise isn’t a consideration.

FAQ

Q: What are the advantages of ball bearing fans over sleeve bearing fans?

A: Ball bearing fans are typically less prone to wear and tear than sleeve bearing, which makes them ideal for a longer service life. They are also able to operate in higher temperatures, and in any orientation. However, they are less rugged and can be more easily disrupted by impact, and tend to be noisier than their sleeve bearing counterparts.

Q: Is the fan easy to operate?

A: With completely integrated electronic communication, the fans require little input from the user to operate.

Q: Is the fan durable?

A: 600 series ball bearing axial fans are constructed from glass fibre reinforced plastic, and are protected against a degree of particle ingress as standard.

Q: Are there accessories available for this fan?

A: There is a finger guard (826-1345) and filter (826-1231) available for this series of fans.

IP68 Rated Axial Fan for Harsh Environments

These high performance fans are also protected from dust ingress and a high degree of moisture ingress. They are ideal for operation in harsh environments and suitable for industrial grade applications.

Specifications
Attribute Value
Supply Voltage 12 V dc
Dimensions 60 x 60 x 25mm
AC or DC Operation DC
Height 60mm
Power Consumption 1.8W
Width 60mm
Depth 25.4mm
Air Flow 43m³/h
Noise Level 37dB
Bearing Type Ball
IP Rating IP68
45 In stock for delivery within 2 working days
Unit of sale: Each
62.86
(exc. VAT)
77.32
(inc. VAT)
units
Per unit
1 - 4
€62.86
5 - 9
€55.01
10 - 19
€50.29
20 +
€45.59
