Select all	Attribute	Value
	Brand	Texas Instruments
	Logic Family	AUP
	Logic Function	Buffer
	Number of Channels	1
	Schmitt Trigger Input	Yes
	Input Type	Single Ended
	Output Type	CMOS
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SC-70
	Pin Count	5
	Maximum High Level Output Current	-4mA
	Maximum Low Level Output Current	4mA
	Maximum Propagation Delay Time @ Maximum CL	10 ns @ 30 pF
	Maximum Operating Supply Voltage	3.6 V
	Dimensions	2.15 x 1.4 x 1mm
	Propagation Delay Test Condition	30pF
	Minimum Operating Temperature	-40 °C
	Height	1mm
	Length	2.15mm
	Maximum Operating Temperature	+85 °C
	Minimum Operating Supply Voltage	2.3 V
	Width	1.4mm

	Select all
	Brand Texas Instruments
	Logic Family AUP
	Logic Function Buffer
	Number of Channels 1
	Schmitt Trigger Input Yes
	Input Type Single Ended
	Output Type CMOS
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SC-70
	Pin Count 5
	Maximum High Level Output Current -4mA
	Maximum Low Level Output Current 4mA
	Maximum Propagation Delay Time @ Maximum CL 10 ns @ 30 pF
	Maximum Operating Supply Voltage 3.6 V
	Dimensions 2.15 x 1.4 x 1mm
	Propagation Delay Test Condition 30pF
	Minimum Operating Temperature -40 °C
	Height 1mm
	Length 2.15mm
	Maximum Operating Temperature +85 °C
	Minimum Operating Supply Voltage 2.3 V
	Width 1.4mm

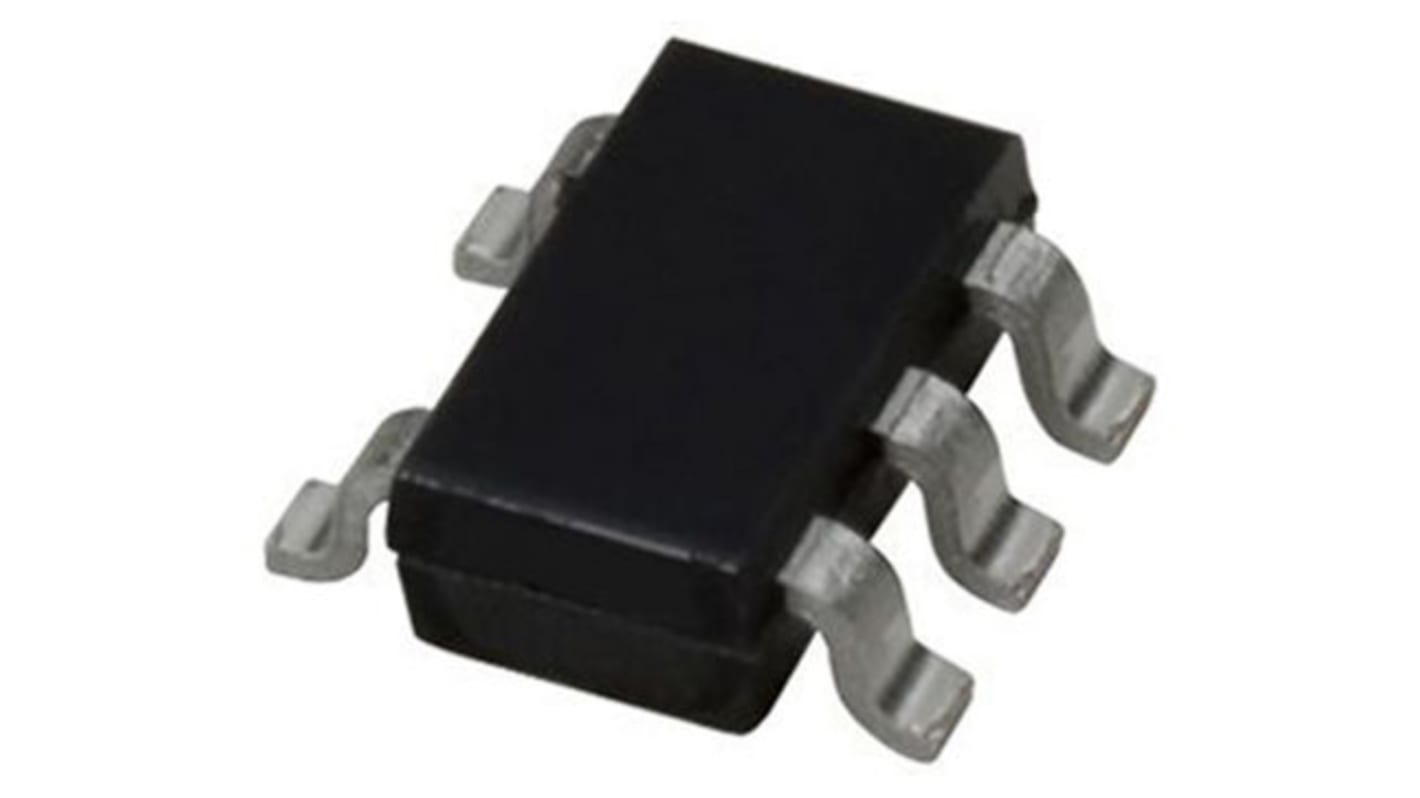

Texas Instruments SN74AUP1T17DCKR Non-Inverting Schmitt Trigger CMOS Buffer, 5-Pin SC-70

74AUP1T Family, Texas Instruments
