Lapp SKINDICHT Series Metallic Nickel Plated Brass Cable Gland, M12 Thread, 3mm Min, 4.8mm Max, IP68
- RS Stock No.:
- 433-0923
- Mfr. Part No.:
- 52103300+52105270
- Manufacturer:
- Lapp
Temporarily out of stock - back order for despatch 04-06-2024, delivery within 2 working days
Added
Price 1 Pack of 5
€32.70
(exc. VAT)
€40.22
(inc. VAT)
Pack(s) | Per Pack | Per unit* |
1 - 4 | €32.70 | €6.54 |
5 - 9 | €31.09 | €6.218 |
10 + | €29.42 | €5.884 |
*price indicative |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 433-0923
- Mfr. Part No.:
- 52103300+52105270
- Manufacturer:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

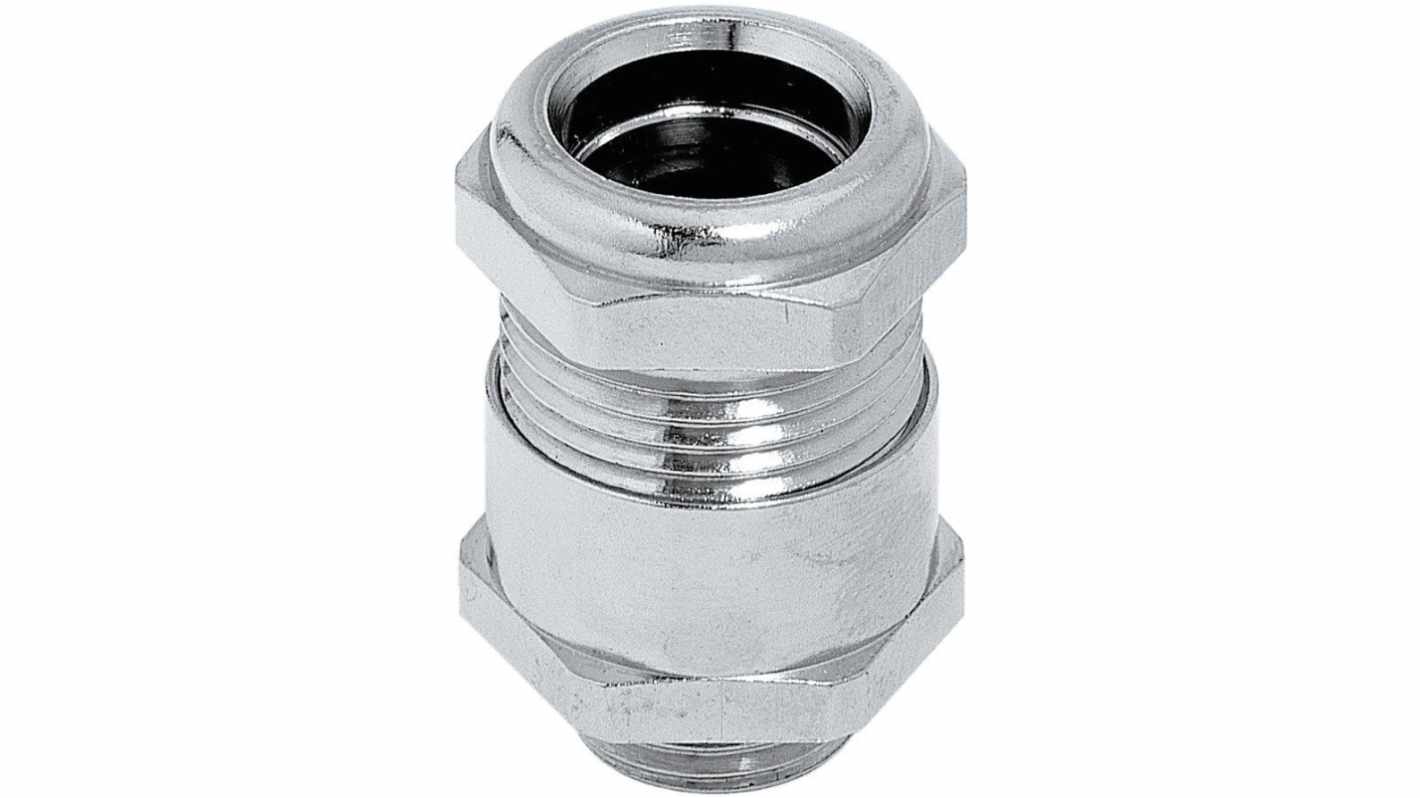

Lapp IP68 Metric Metal Gland
From Lapp, this cable gland has a robust nickel plated construction and provides excellent protection. Whether used with panels, junction boxes or machine housing, this cable gland also provides a high degree of strain relief to prevent wear and tear on the cable connection.
The gland contains a conical sealing element and a perbunan o-ring seal, for a high degree of environmental resistance. As such the cable gland is watertight, for splash-proof protection against liquids.
The simple screw-on action ensures easy fitting and a reduced assembly time.
Features and Benefits
• IP68, 10 Bar
• Mechanical Resistance
• Temperature Range -20°C to +80°C
• Screw-Lock Fixing
• Metric Sizes
Applications
The cable glands watertight nature makes it ideal for applications in;
• Pumps
• Floater Switches
Environment
This watertight cable gland is sealed to IP68, which ensures excellent protection against particle ingress and water-proofing even in shallow submersion. As such it is suitable for use in harsh environments, and even some open air applications.
The gland contains a conical sealing element and a perbunan o-ring seal, for a high degree of environmental resistance. As such the cable gland is watertight, for splash-proof protection against liquids.
The simple screw-on action ensures easy fitting and a reduced assembly time.
Features and Benefits
• IP68, 10 Bar
• Mechanical Resistance
• Temperature Range -20°C to +80°C
• Screw-Lock Fixing
• Metric Sizes
Applications
The cable glands watertight nature makes it ideal for applications in;
• Pumps
• Floater Switches
Environment
This watertight cable gland is sealed to IP68, which ensures excellent protection against particle ingress and water-proofing even in shallow submersion. As such it is suitable for use in harsh environments, and even some open air applications.
Supplied with
Locknuts
Specifications
Attribute | Value |
---|---|
Thread Size | M12 |
Maximum Cable Diameter | 4.8mm |
Minimum Cable Diameter | 3mm |
Material | Nickel Plated Brass |
Colour | Metallic |
Series | SKINDICHT |
IP Rating | IP68 |
Locknut Included | Yes |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
Reference | SKINDICHT |
- RS Stock No.:
- 433-0923
- Mfr. Part No.:
- 52103300+52105270
- Manufacturer:
- Lapp
