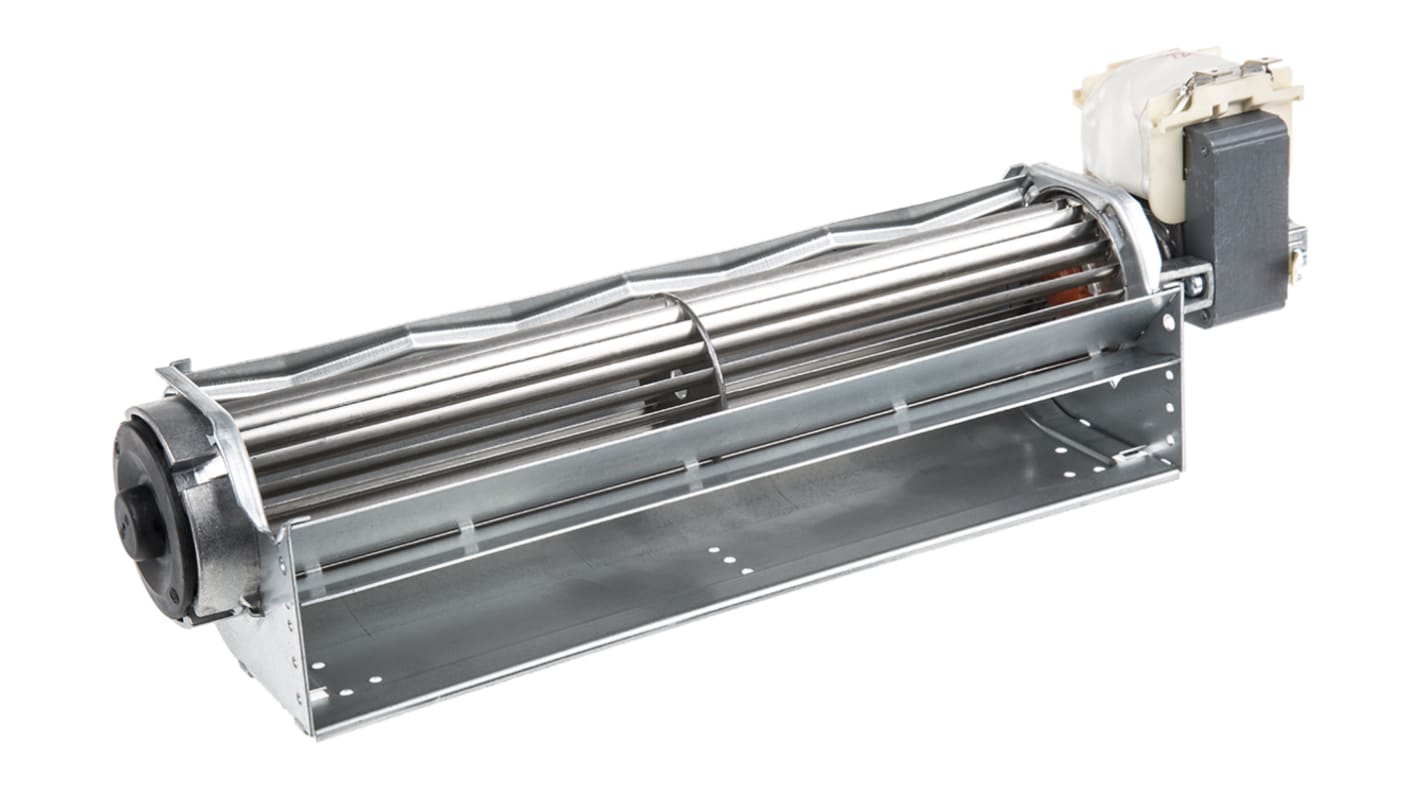

ebm-papst QLK Series Tangential Centrifugal Fan, 230 V ac, 190m³/h, AC Operation, 79 x 331 x 71mm

RS Stock No.:: 434-9832
Mfr. Part No.:: QLK45/2400A32-2524L-58
Manufacturer:: ebm-papst

ebm-papst QLK Series Tangential Centrifugal Fan, 230 V ac, 190m³/h, AC Operation, 79 x 331 x 71mm

101 In stock for delivery within 2 working days

Added

Price Each

€107.85

(exc. VAT)

€132.66

(inc. VAT)

Units	Per unit
1 - 4	€107.85
5 - 9	€94.37
10 - 19	€86.28
20 +	€78.19

RS Stock No.:: 434-9832
Mfr. Part No.:: QLK45/2400A32-2524L-58
Manufacturer:: ebm-papst

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: SI

Product Details

ebm-papst AC Tangential Blower

The ebm-papst high tech, AC tangential blower has an airflow of 190m³/h (for 50Hz) at 2200rpm fan speed and has a supply voltage rating of 230VAC. It offers a reliable and versatile solution to a variety of requirements. The exceptional features of ebm-papst tangential blower have high airflow at relatively low counter pressures and very good noise characteristics. Also, the unit can be mounted either horizontally or vertically, with the motor at the bottom. It is 79mm long, 331mm wide and 71mm deep.

Features and Benefits

High-efficiency
Compact blower
Impeller diameter 45mm
Ambient temperature ranging between 0°C and 60°C

Applications

Stove jacket cooling
Thermal storage heaters
Overhead projectors
Tanning beds
Air conditioning
Heating units

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Supply Voltage	230 V ac
Blower Type	Tangential
AC or DC Operation	AC
Air Flow	190m³/h
Series	QLK
Height	79mm
Width	331mm
Depth	71mm
Dimensions	79 x 331 x 71mm
Fan Speed	2300rpm
Mounting Hole Spacing	212 x 16.5mm
Horizontal Hole Spacing	212mm
Vertical Hole Spacing	16.5mm
Mounting Hole Diameter	2.4mm
