ebm-papst D3G146 Series Centrifugal Centrifugal Fan, 230 V ac, 1080 m³/h, AC Operation 216 mm x 220 mm x 199 mm
- RS Stock No.:
- 841-4898
- Distrelec Article No.:
- 303-76-249
- Mfr. Part No.:
- D3G146-HQ13-34
- Manufacturer:
- ebm-papst
Bulk discount available
Subtotal (1 unit)*
€351.52
(exc. VAT)
€432.37
(inc. VAT)
In Stock
- 8 unit(s) ready to ship from another location
- Plus 27 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | €351.52 |
| 5 - 9 | €307.57 |
| 10 - 19 | €281.21 |
| 20 + | €265.04 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 841-4898
- Distrelec Article No.:
- 303-76-249
- Mfr. Part No.:
- D3G146-HQ13-34
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Supply Voltage | 230 V ac | |
| Product Type | Centrifugal Fan | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 1080m³/h | |
| Series | D3G146 | |
| Width | 220 mm | |
| Terminal Type | Plug | |
| Fan Speed | 2400rpm | |
| Noise Level | 62dBA | |
| Sensor Output Type | PWM | |
| Bearing Type | Ball | |
| Standards/Approvals | EN, CE, RoHS, ISO | |
| Depth | 199mm | |
| Height | 216mm | |
| Static Pressure | 453Pa | |
| Maximum Current | 1.8A | |
| Better World Product | Yes | |
| Commutation Type | Electronic | |
| IP Rating | IP20 | |
| Better World Claim | Saves Energy | |
| Mounting Hole Diameter | 138 mm | |
| Special Features | Thermal Overload Protector | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Supply Voltage 230 V ac | ||
Product Type Centrifugal Fan | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 1080m³/h | ||
Series D3G146 | ||
Width 220 mm | ||
Terminal Type Plug | ||
Fan Speed 2400rpm | ||
Noise Level 62dBA | ||
Sensor Output Type PWM | ||
Bearing Type Ball | ||
Standards/Approvals EN, CE, RoHS, ISO | ||
Depth 199mm | ||
Height 216mm | ||
Static Pressure 453Pa | ||
Maximum Current 1.8A | ||
Better World Product Yes | ||
Commutation Type Electronic | ||
IP Rating IP20 | ||
Better World Claim Saves Energy | ||
Mounting Hole Diameter 138 mm | ||
Special Features Thermal Overload Protector | ||
- COO (Country of Origin):
- DE

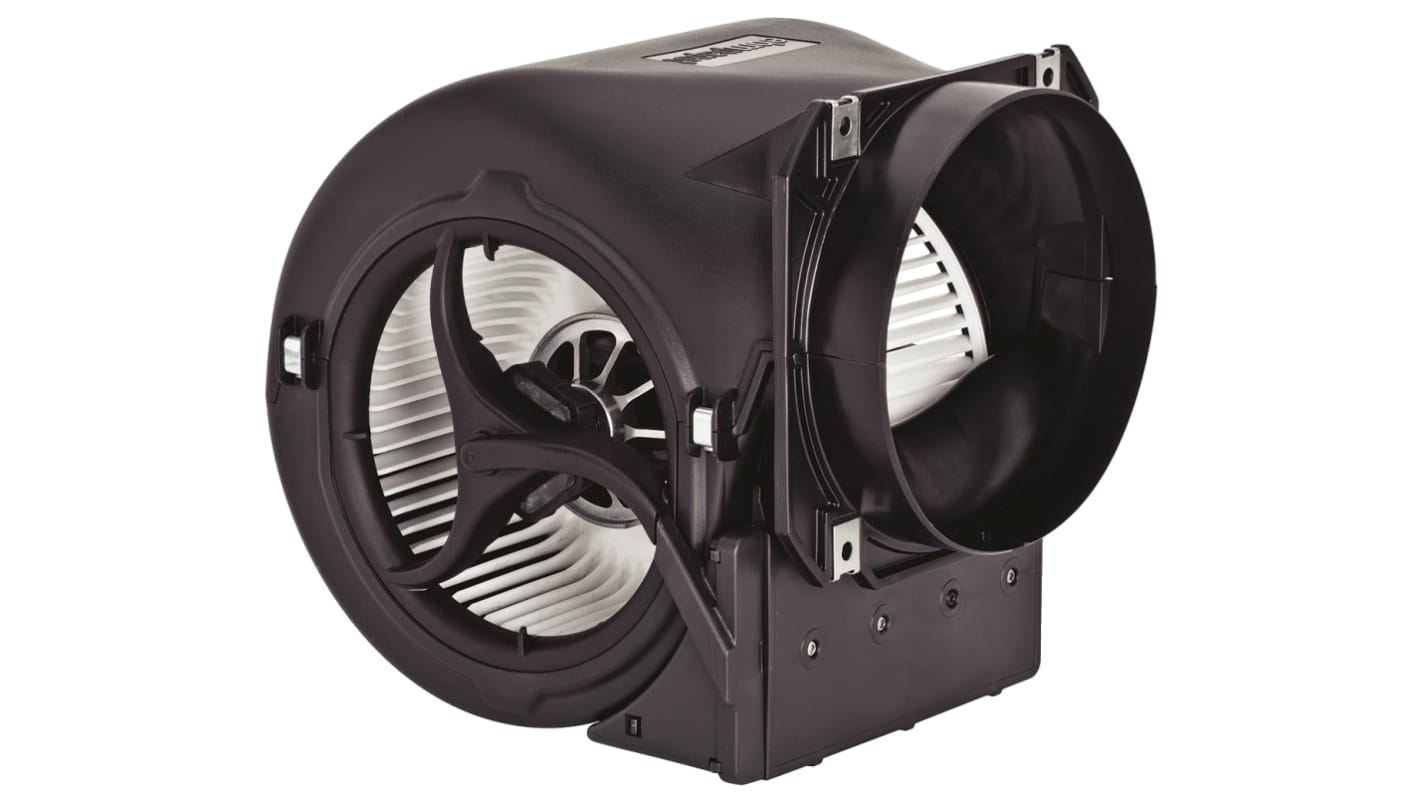

ebm-papst Centrifugal Blower
The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 1080m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. Its features include forwarded curved blades. It is 216mm long, 220mm wide and 199mm depth. It is an ideal solution for a wide range of applications and also suitable for intake suction use. The scroll housing is open on both the sides for added efficiency and reduction in noise level. The robust and space-saving design of this centrifugal blower makes it versatile and easy to use.
Features and Benefits
Impeller is backward curved with 280 diameter
Fitted with highly efficient GreenTech EC motor
Intelligent electronics for numerous control functions
Impeller material is made from sheet steel and coated in black
Direction of rotation is clockwise
Insulation class are "F"
Mounting position shaft horizontal or rotor on bottom
Maintenance-free ball bearings
Motor protection TOP wired internally
With housing (flange)
Applications
Central air conditioning units or building ventilation systems
Automobiles
Railways
Electronic products
Medical Treatment
Households
Ventilation
Air conditioning
Refrigeration systems
Certifications
IP20 rated
EN 60335-1
EN 60335-2-31
CE certified
VDE approved
