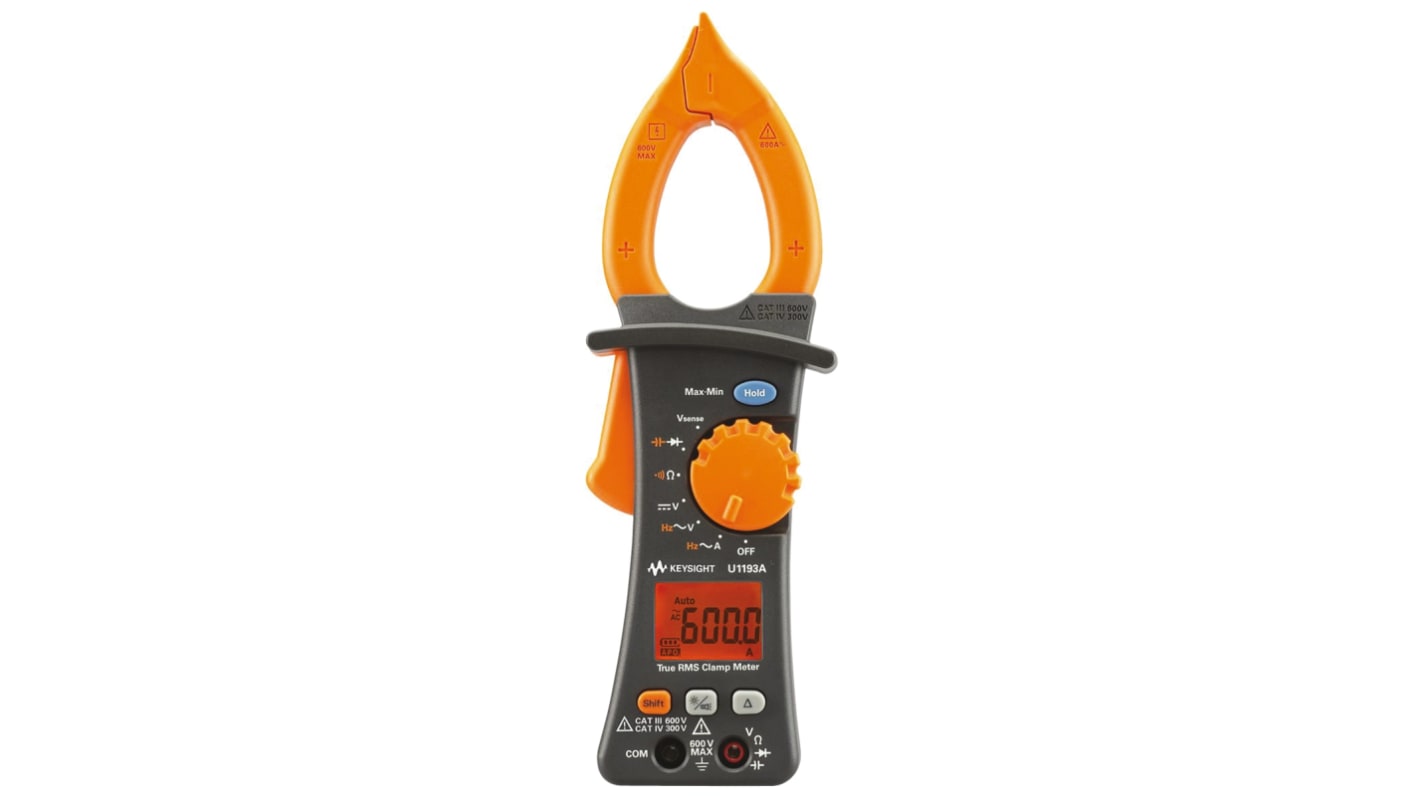

Name: Keysight Technologies U1193A Clamp Meter, Max Current 600A ac CAT III 600 V, CAT IV 300 V With RS Calibration
Brand: Keysight Technologies
SKU: 747-6849
Price: 469.86 EUR
Availability: Discontinued

Keysight U1190 Series Clamp Meters

The U1190 Series clamp meters are built to perform in the environments you work. Ergonomically built, the U1190 Series clamp meters fit comfortably in the palm of your hand and allow you to select measurement functions with just a simple thumb press. Better yet, the U1193A comes with a current measurement up to 600A.

Unique wire separator to separate wires from a bundle
Vsense to perform non-contact voltage detection
Built-in LED flashlight to illuminate test area
Visual (backlight alert) and audible continuity indication in noisy environments
Current measurement up to 600A
Digital multimeter (DMM) with resistance, capacitance, DCV, ACV, ACA, measurement capabilities
Continuity and diode test measurements
Operating temperature from -10 to 50 °C, 0 to 80% RH
CAT III 600V / CAT IV 300V safety rating
Battery type 2 x 1.5 V AAA Alkaline battery
Display Liquid crystal display (LCD)
Auto power OFF

Supplied with

Quick Start Guide, Certificate of calibration, Test leads with 4-mm tips, 1.5 V AAA Alkaline battery,Soft carrying case

Keysight Technologies Clamp Meter, LCD Display, 60 to 600V AC/DC Voltage Measurement Range - U1190 Series - U1193A

Take charge of monitoring your electrical circuits and appliances with this clamp meter from Keysight Technologies. It comes with an innovative wire separator that you can use to single out individual leads swiftly, making troubleshooting less of a chore. When you're working in the dark, this tool's built-in flashlight comes to the rescue, so your test area stays illuminated. As it weighs just 334g, this clamp meter is easy to handle and carry around during operation.

Features & Benefits

• LCD display with backlight for a clear view of measured values
• Current measurement range of 60 to 600A for use in high-power applications
• Integrated Vsense non-contact voltage detection technology protects you from exposure to live wires for improved safety
• Broad operating temperature range between -10°C and +50°C for use in demanding conditions

Applications

• Consumer electronics
• Processing and packaging plants
• Residential wiring

How is this clamp meter powered?

This clamp meter is powered by two 1.5V AA batteries. The batteries provide up to 40 hours of operating life with the backlight on and 200 hours of use without the backlight for long-lasting performance.

Select all	Attribute	Value
	Brand	Keysight Technologies
	Absolute Maximum AC Current Measurement	600A ac
	Absolute Maximum AC Voltage Measurement	600V ac
	Absolute Maximum DC Voltage Measurement	600V dc
	Absolute Maximum Resistance Measurement	60kΩ
	Model Number	U1193A
	Calibrated	RSCAL
	AC Current Measurement Resolution	10mA ac
	Clamp Meter Type	AC Current Clamp Meter
	Best AC Current Accuracy	±2% +5 digits
	Best AC Voltage Accuracy	±1.2% + 5 Digits
	True RMS	Yes
	Best DC Voltage Accuracy	±0.5% + 3 Digits
	Functions Measured	AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance
	Safety Category Level	CAT IV, CAT III
	Weight	334g
	Battery Life	200 (Backlight Off) h, 40 (Backlight On) h
	Height	38.6mm
	Minimum Operating Temperature	-10°C
	DC Voltage Measurement Resolution	0.01V dc
	Dimensions	225 x 77.1 x 38.6mm
	Resistance Measurement Resolution	100mΩ
	Maximum Conductor Size	35mm
	AC Voltage Measurement Resolution	0.01V ac
	Battery Type	AAA
	Safety Category Voltage	300 V, 600 V
	Maximum Operating Temperature	+50°C
	Display Type	LCD
	Safety Category	CAT III 600 V, CAT IV 300 V
	Best Resistance Measurement Accuracy	±0.8% + 3 Digits
	Length	225mm
	Power Source	Battery
	Non-Contact Voltage Detector	Yes
	Width	77.1mm

	Select all
	Brand Keysight Technologies
	Absolute Maximum AC Current Measurement 600A ac
	Absolute Maximum AC Voltage Measurement 600V ac
	Absolute Maximum DC Voltage Measurement 600V dc
	Absolute Maximum Resistance Measurement 60kΩ
	Model Number U1193A
	Calibrated RSCAL
	AC Current Measurement Resolution 10mA ac
	Clamp Meter Type AC Current Clamp Meter
	Best AC Current Accuracy ±2% +5 digits
	Best AC Voltage Accuracy ±1.2% + 5 Digits
	True RMS Yes
	Best DC Voltage Accuracy ±0.5% + 3 Digits
	Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Frequency, Resistance
	Safety Category Level CAT IV, CAT III
	Weight 334g
	Battery Life 200 (Backlight Off) h, 40 (Backlight On) h
	Height 38.6mm
	Minimum Operating Temperature -10°C
	DC Voltage Measurement Resolution 0.01V dc
	Dimensions 225 x 77.1 x 38.6mm
	Resistance Measurement Resolution 100mΩ
	Maximum Conductor Size 35mm
	AC Voltage Measurement Resolution 0.01V ac
	Battery Type AAA
	Safety Category Voltage 300 V, 600 V
	Maximum Operating Temperature +50°C
	Display Type LCD
	Safety Category CAT III 600 V, CAT IV 300 V
	Best Resistance Measurement Accuracy ±0.8% + 3 Digits
	Length 225mm
	Power Source Battery
	Non-Contact Voltage Detector Yes
	Width 77.1mm
