- RS Stock No.:
- 308-9185
- Mfr. Part No.:
- RG316/D
- Manufacturer:
- Quadrant Connectors
2 Within 2 working day(s) (EU stock)
9 Within 2 working day(s) (EU stock)
Added
Price 1 Reel of 100 Metre(s)
€564.05
(exc. VAT)
€693.78
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | €564.05 | €5.64 |
| *price indicative | ||
- RS Stock No.:
- 308-9185
- Mfr. Part No.:
- RG316/D
- Manufacturer:
- Quadrant Connectors
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

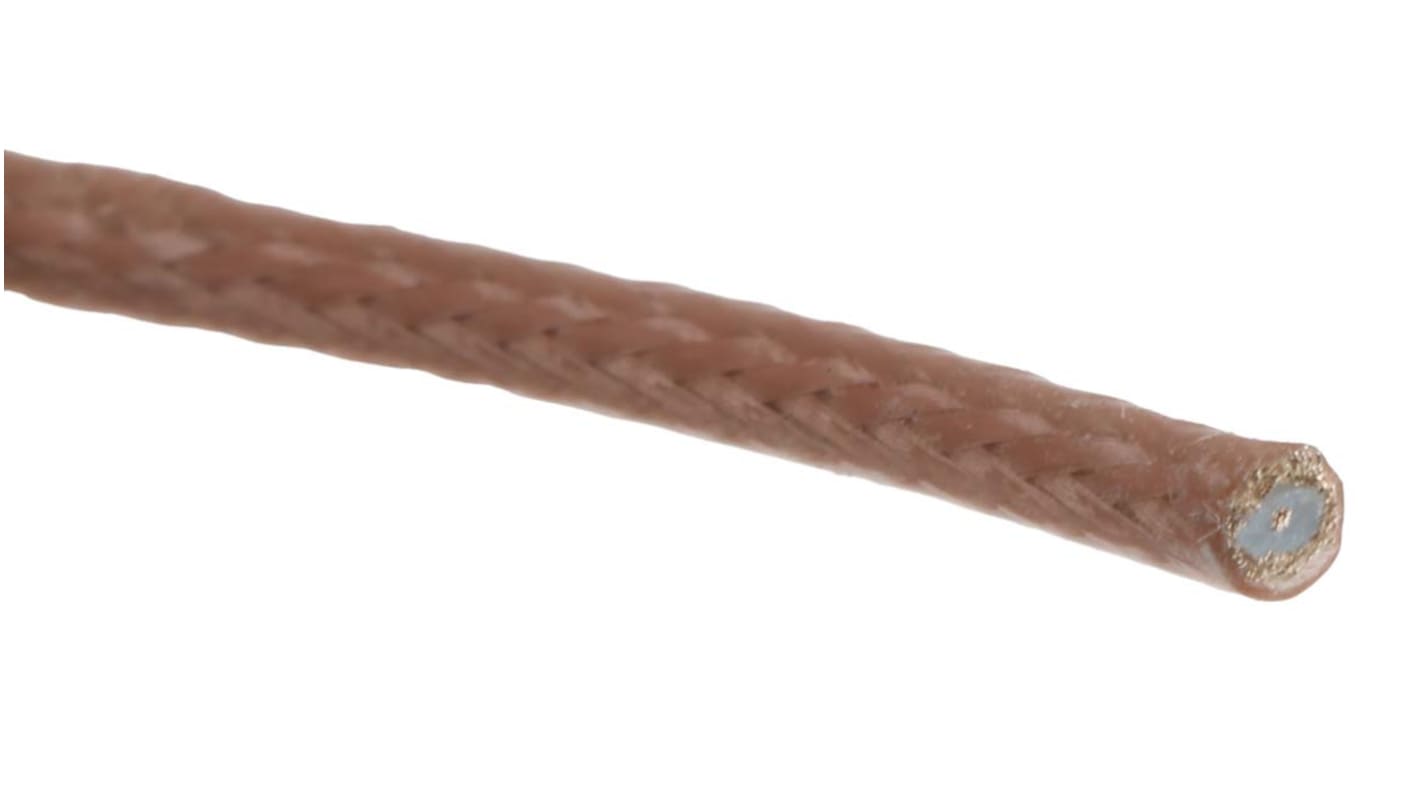

RD316 (RG316/D)
From Quadrant Connectors, this double-shielded coaxial cable offers improved shielding.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG316/D |
| Outer Diameter | 2.9mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 102 dB/100m @ 1GHz, 37 dB/100m @ 100MHz, 47 dB/100m @ 200MHz |
| Length | 100m |
| Sheath Colour | Brown |
| Conductor Strand Type | Stranded |
| Sheath Material | FEP |
| Shielding | Silver Plated Copper Braid |
| Number of Strands | 7 |
| Operating Temperature Range | -55 → +200 °C |
| Minimum Operating Temperature | -55°C |
| Velocity ratio | 70% |
| Maximum Operating Temperature | +200°C |
| Size of Strands | 0.17 mm |
| Insulation Material | PTFE |
| Core Strands | 7/0.17 |
| Conductor Material | Silver Plated Steel |
