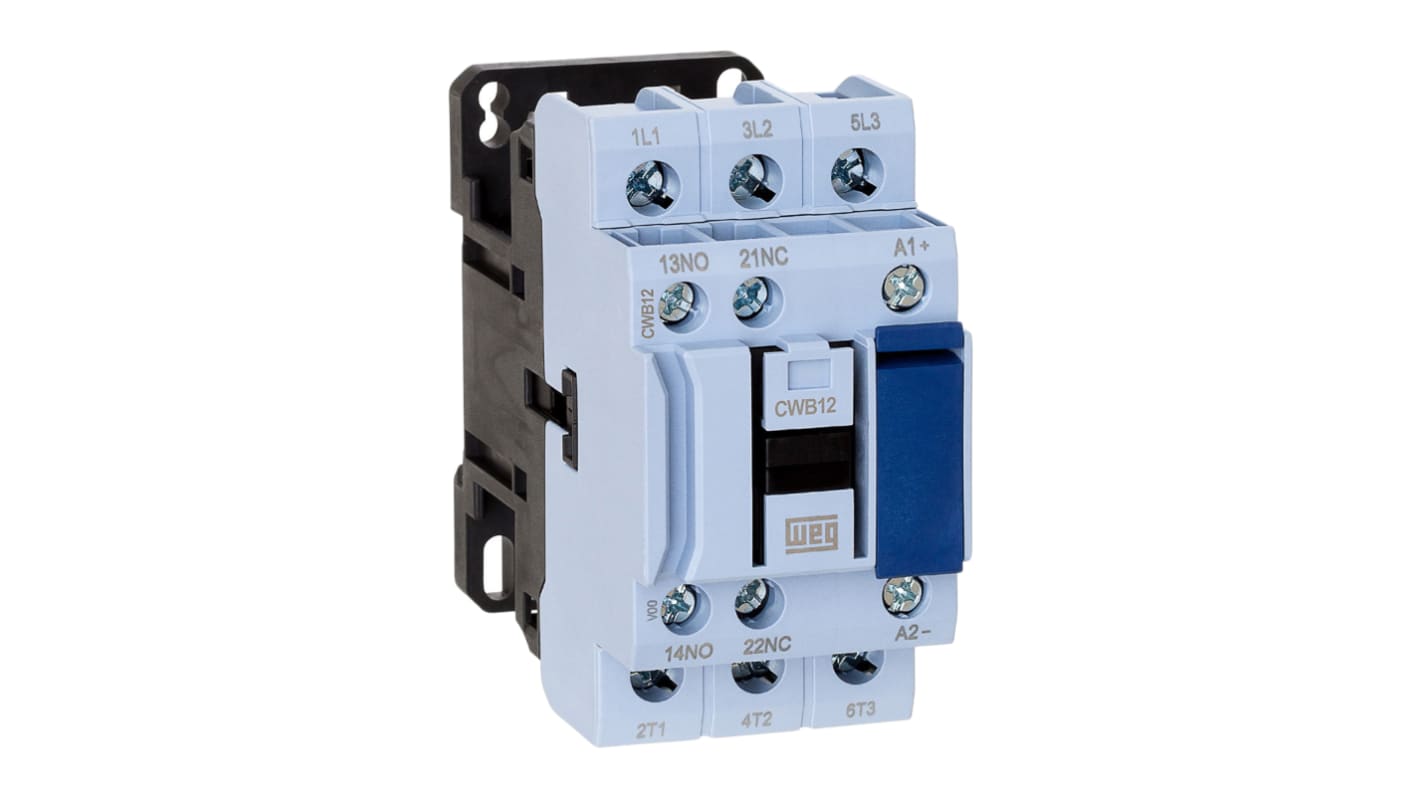

WEG CWB Series Contactor, 24 V dc Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac
- RS Stock No.:
- 122-0997
- Mfr. Part No.:
- CWB12-11-30C03
- Manufacturer:
- WEG
Temporarily out of stock - back order for despatch 28-05-2024, delivery within 2 working days
Added
Price Each
€48.59
(exc. VAT)
€59.77
(inc. VAT)
| Units | Per unit |
| 1 + | €48.59 |
- RS Stock No.:
- 122-0997
- Mfr. Part No.:
- CWB12-11-30C03
- Manufacturer:
- WEG
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- BR
Product Details
CWB Series
Professional range of WEG contactors from the CWB Series. The contactors are modular and compact but at the same time robust and highly reliable. The contactors are manufactured with the best raw materials. High precision plastic injection moulds and stamping tools ensuring reliable products. Electric contacts have special silver alloys which ensure excellent electric conductibility and high contact reliability. The CWB series uses only nontoxic and eco-friendly materials that are safe and sustainable. The contactors operate smoothly with a low level of disturbance. To optimise space, the WEG contactors have a front channel for the passage of control cables.
Built in auxiliary contacts
Low consumption coils
Low consumption coils
WEG Contactors
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 12 A |
| Power Rating | 5.5 kW |
| Series | CWB |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 2 |
| Terminal Type | Screw |
| Length | 78.4mm |
| Width | 45mm |
| Depth | 95.7mm |
| Maximum Operating Temperature | +55°C |
| Pole and Throw Configuration | 3PST |
| Minimum Operating Temperature | -25°C |
