Select all	Attribute	Value
	Brand	Eaton
	Coil Voltage	24 V ac
	Number of Poles	3
	Contact Voltage Rating	400 V ac
	Contact Current Rating	17 A
	Series	DILM
	Power Rating	7.5 kW
	Range	xStart
	Normal State Configuration	1N/O
	Number Of Auxiliary Contacts	1
	Terminal Type	Screw
	Length	97mm
	Width	45mm
	Depth	97mm
	Pole and Throw Configuration	3P
	Maximum Operating Temperature	+60°C
	Control Voltage	24 V ac
	Minimum Operating Temperature	-25°C

	Select all
	Brand Eaton
	Coil Voltage 24 V ac
	Number of Poles 3
	Contact Voltage Rating 400 V ac
	Contact Current Rating 17 A
	Series DILM
	Power Rating 7.5 kW
	Range xStart
	Normal State Configuration 1N/O
	Number Of Auxiliary Contacts 1
	Terminal Type Screw
	Length 97mm
	Width 45mm
	Depth 97mm
	Pole and Throw Configuration 3P
	Maximum Operating Temperature +60°C
	Control Voltage 24 V ac
	Minimum Operating Temperature -25°C

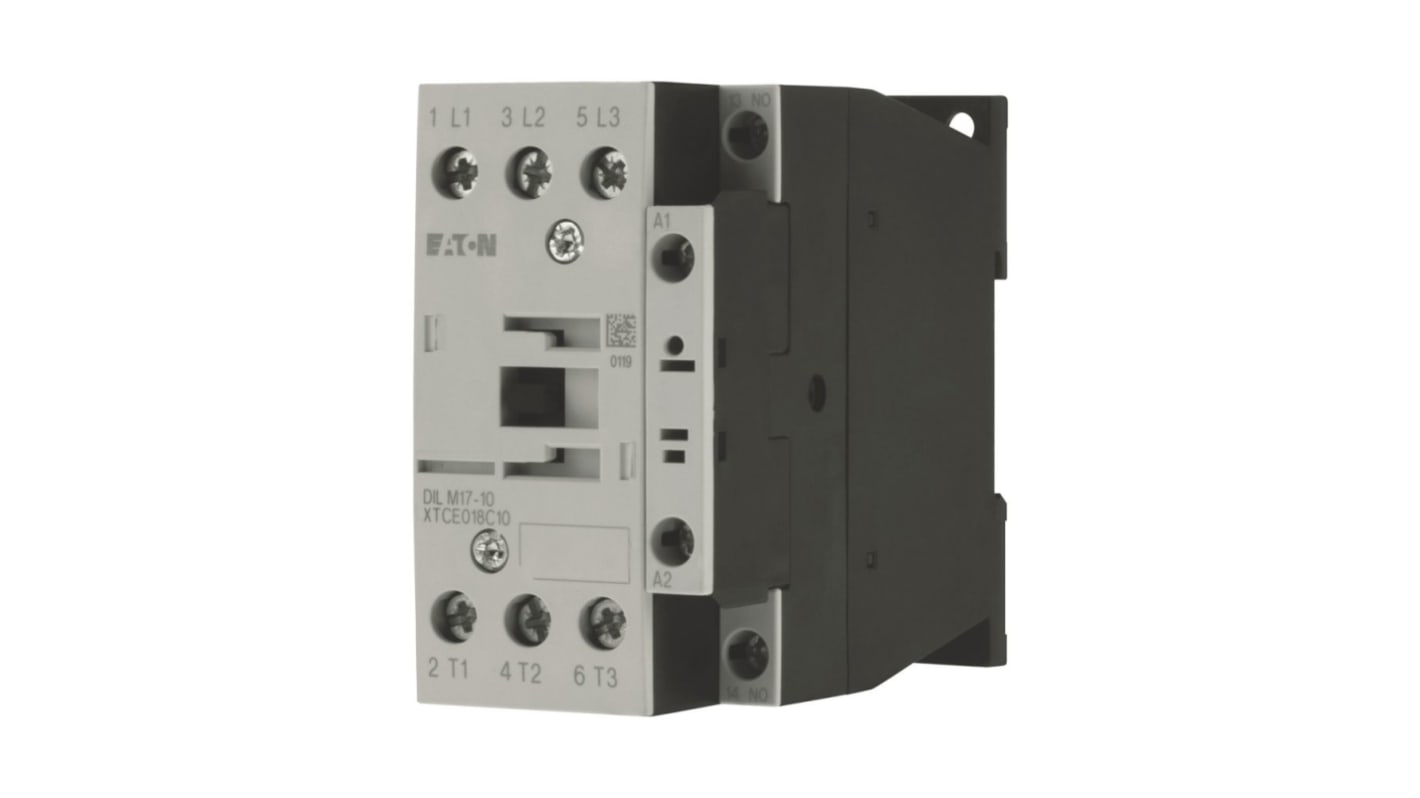

Eaton xStart DILM Contactor, 24 V ac Coil, 3-Pole, 17 A, 7.5 kW, 1N/O, 400 V ac

Eaton DILM Series Contactor, 24V AC Coil Voltage, 3NO Normal State Configuration - 277008 DILM17-10(24V50/60HZ)
