Select all	Attribute	Value
	Brand	Lapp
	Series	UNITRONIC BUS EIB
	Number of Cores	2
	Cross Sectional Area	0.8 mm²
	American Wire Gauge	18 AWG
	Conductor Material	Bare Copper
	Sheath Material	PVC
	Sheath Colour	Green
	Screen Type	Aluminium Foil
	Screened/Unscreened	Screened
	Outer Diameter	6.6mm
	Length	100m
	Minimum Bend Radius	10 x 6.6 mm
	Voltage Rating	250 V
	CPR Certification	Eca
	Maximum Operating Temperature	+70°C
	Fire Behaviour	Halogen Free
	Cable Shape	Multicore
	Minimum Operating Temperature	-30°C
	Conductor Resistance	73.2 Ω/km
	Insulation Material	PVC

	Select all
	Brand Lapp
	Series UNITRONIC BUS EIB
	Number of Cores 2
	Cross Sectional Area 0.8 mm²
	American Wire Gauge 18 AWG
	Conductor Material Bare Copper
	Sheath Material PVC
	Sheath Colour Green
	Screen Type Aluminium Foil
	Screened/Unscreened Screened
	Outer Diameter 6.6mm
	Length 100m
	Minimum Bend Radius 10 x 6.6 mm
	Voltage Rating 250 V
	CPR Certification Eca
	Maximum Operating Temperature +70°C
	Fire Behaviour Halogen Free
	Cable Shape Multicore
	Minimum Operating Temperature -30°C
	Conductor Resistance 73.2 Ω/km
	Insulation Material PVC

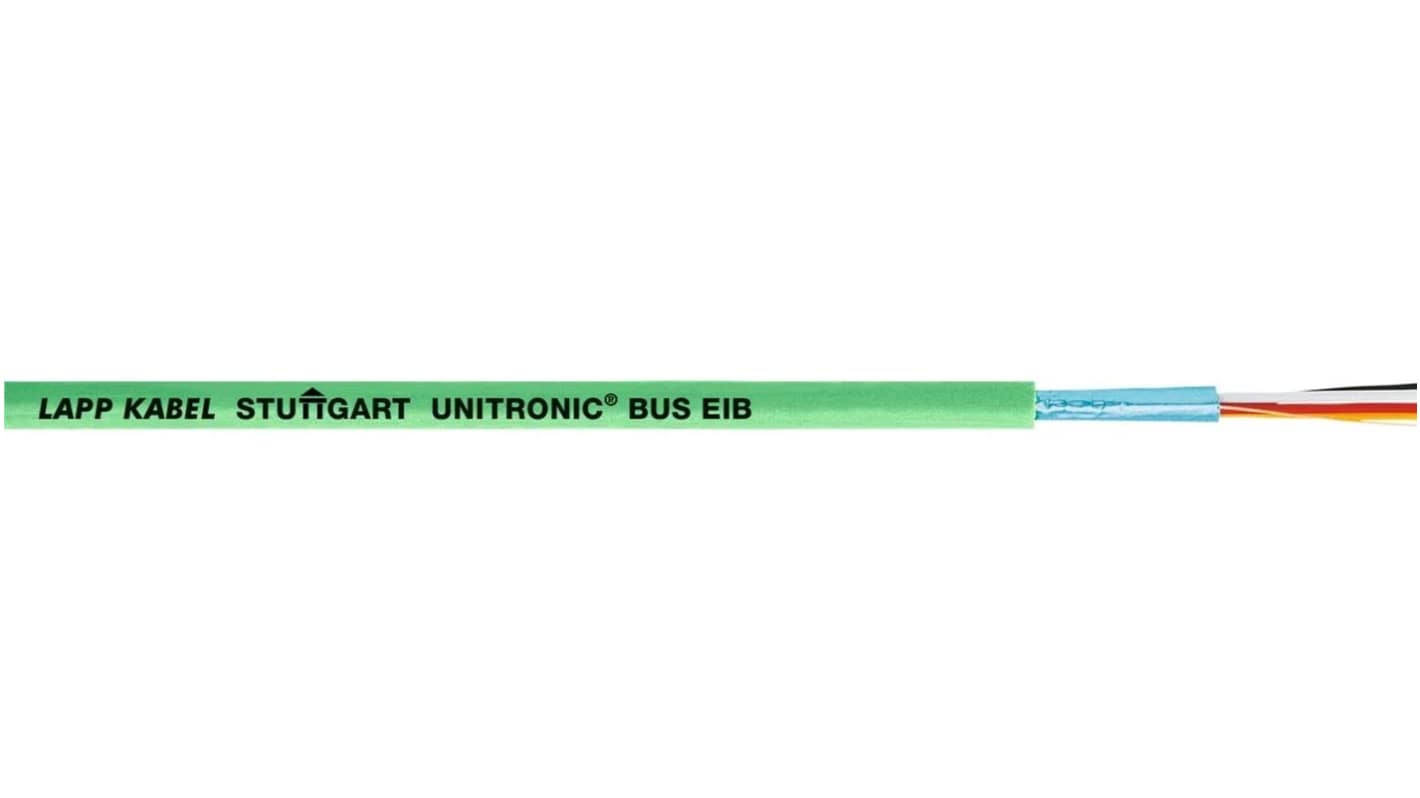

Lapp UNITRONIC BUS EIB Data Cable, 2 Cores, 0.8 mm², Screened, 100m, Green PVC Sheath, 18 AWG

LAPP UNITRONIC BUS EIB Series Bus Cable, 4 Cores, 0.8 mm² Cross Sectional Area - 2170240
