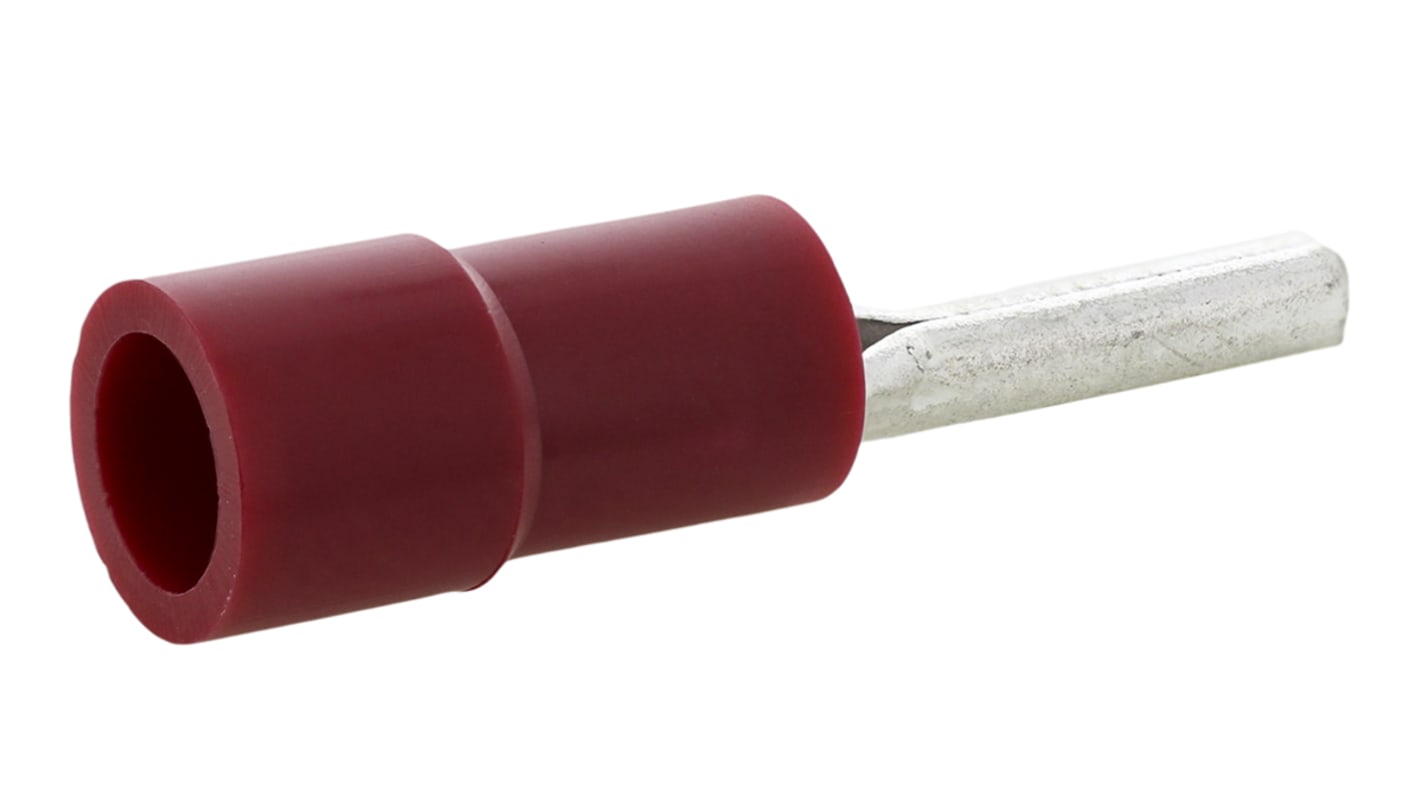

RS PRO Insulated, Tin Crimp Pin Connector, 0.5mm² to 1.5mm², 22AWG to 16AWG, 1.9mm Pin Diameter, 10mm Pin Length, Red
- RS Stock No.:
- 613-9716
- Manufacturer:
- RS PRO
28900 In stock for delivery within 2 working days
Added
Price Each (In a Pack of 100)
€0.142
(exc. VAT)
€0.175
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 900 | €0.142 | €14.20 |
| 1000 - 2400 | €0.128 | €12.80 |
| 2500 - 4900 | €0.116 | €11.60 |
| 5000 - 9900 | €0.106 | €10.60 |
| 10000 + | €0.099 | €9.90 |
| *price indicative | ||
- RS Stock No.:
- 613-9716
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Insulated Wire Pin Crimp Terminals
Need a quick and secure way to terminate electrical connections then use these superb pin crimp terminals from RS PRO. During application, they create an air-tight crimp connection to prevent oxygen or moisture from getting through, protecting the metal interior against corrosion.
Thanks to its tin-plated copper contacts, the crimp blade ensures a reliable electrical connection. The insulation protects the connection against chemical and mechanical damage and you can also colour-code your wiring for ease of identification thanks to a colour/size system.
You'll find these versatile connectors are used by electricians and engineers. It's suitable for a variety of applications as it can accommodate wires ranging in size from 26 to 16 AWG.
Thanks to its tin-plated copper contacts, the crimp blade ensures a reliable electrical connection. The insulation protects the connection against chemical and mechanical damage and you can also colour-code your wiring for ease of identification thanks to a colour/size system.
You'll find these versatile connectors are used by electricians and engineers. It's suitable for a variety of applications as it can accommodate wires ranging in size from 26 to 16 AWG.
Features and Benefits
- Contact Material: Copper
- Contact Plating: Tin
- Insulated
- Unshrouded
Colour Code
- Mini Yellow 0.2 - 0.5 mm²
- Red 0.5 - 1.5 mm²
- Blue 1.5 - 2.5 mm²
- Yellow 2.5 - 6.5 mm²
Small Pack Size
Per Unit, RS stock no: 613-9716
Large Pack Size
RS stock no: 270-7621
Approvals
UL (E125401)
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Overall Length | 20.8mm |
| Minimum Wire Size AWG | 22AWG |
| Shrouded/Unshrouded | Unshrouded |
| Maximum Wire Size AWG | 16AWG |
| Pin Diameter | 1.9mm |
| Pin Length | 10mm |
| Colour | Red |
| Contact Plating | Tin |
| Contact Material | Copper |
