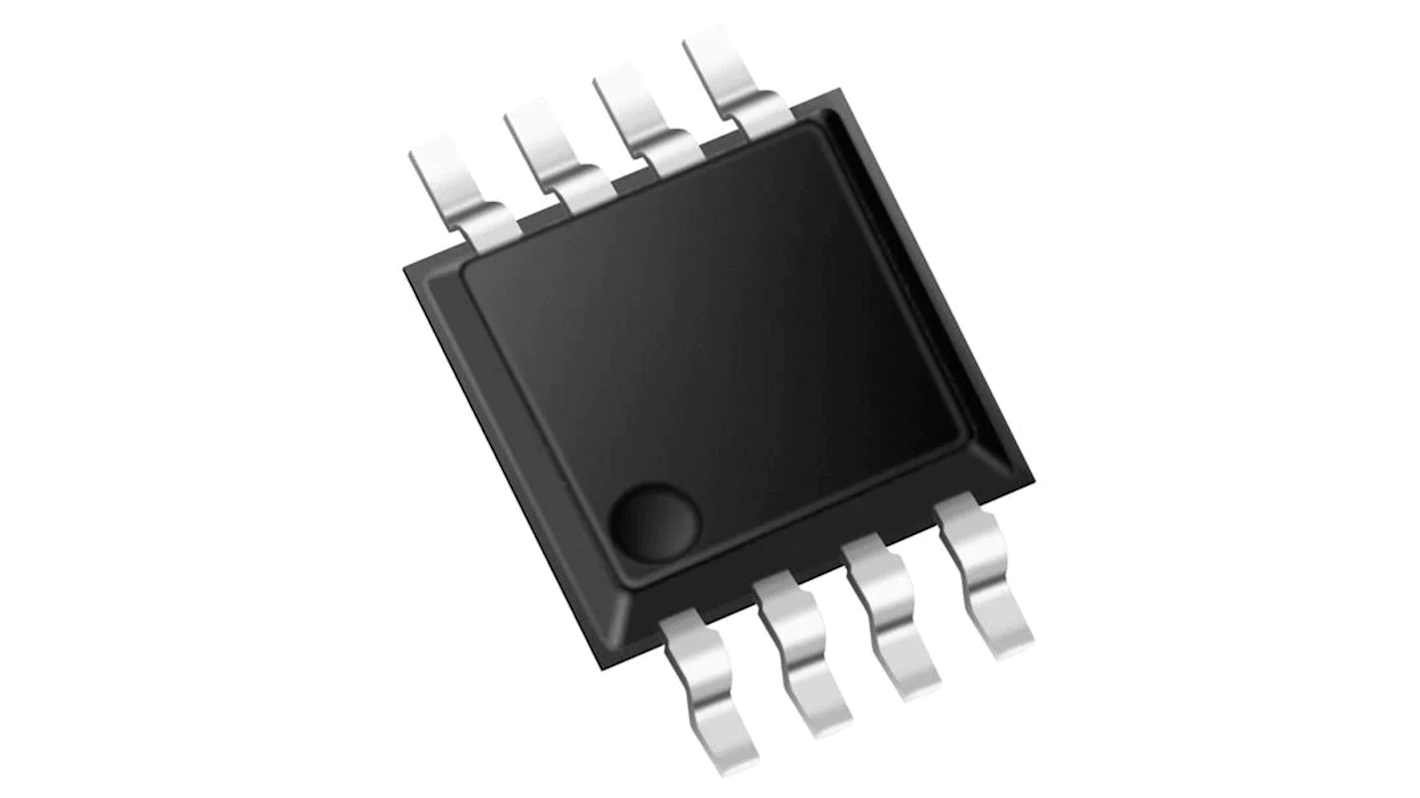

NCS21674DMG200R2G onsemi, Current Shunt Monitor Dual 8-Pin Micro8
- RS Stock No.:
- 233-6832
- Mfr. Part No.:
- NCS21674DMG200R2G
- Manufacturer:
- onsemi
Temporarily out of stock - back order for despatch 15-07-2024, delivery within 2 working days
Price Each (On a Reel of 4000)
€0.468
(exc. VAT)
€0.576
(inc. VAT)
| Units | Per unit | Per Reel* |
| 4000 - 4000 | €0.468 | €1,872.00 |
| 8000 - 8000 | €0.444 | €1,776.00 |
| 12000 + | €0.422 | €1,688.00 |
| *price indicative | ||
- RS Stock No.:
- 233-6832
- Mfr. Part No.:
- NCS21674DMG200R2G
- Manufacturer:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
The ON Semiconductor NCS21674DMG200R2G is a Current Sense amplifier offering gain of 200 V/V. These parts can measure voltage across shunts at common mode voltages from −0.1 V to 40 V, independent of supply voltage. This helps measuring of fast transients and allows the same type of part to be used for high side and low side current sensing. The device is available in Micro8 package, a dual channel version that makes current sensing in multiple points of a system both space and cost effective.
It has a wide Common mode input range of -0.1 V to 40 V
It has a Supply voltage range of 2.7 V to 5.5 V
The device has low offset voltage of ±100 V
It has low offset drift of ±1 V/°C max
It has a Supply voltage range of 2.7 V to 5.5 V
The device has low offset voltage of ±100 V
It has low offset drift of ±1 V/°C max
Specifications
Attribute | Value |
|---|---|
| Power Supply Type | Dual |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Minimum CMRR | 84dB |
| Number of Channels per Chip | 2 |
| Package Type | Micro8 |
| Pin Count | 8 |
