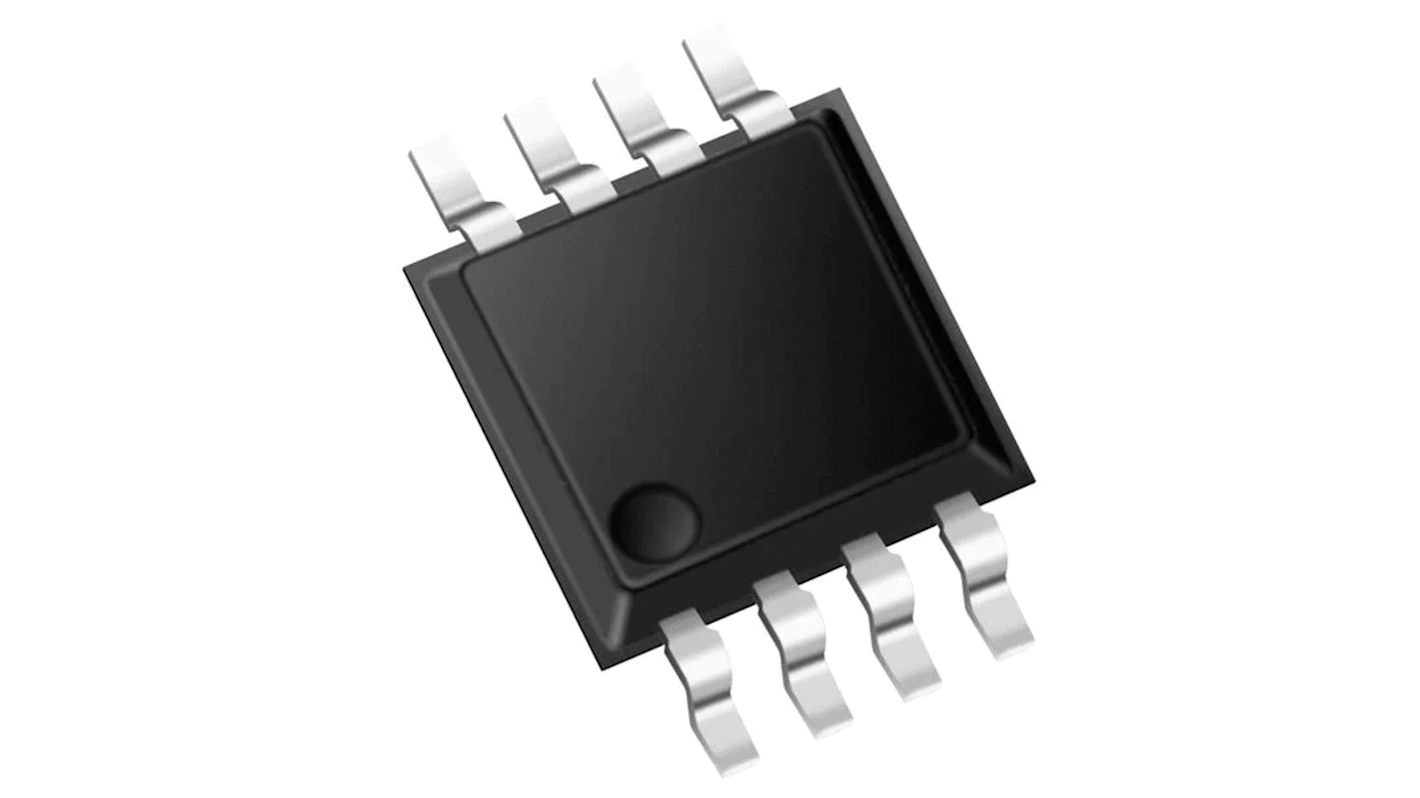

onsemi Current Shunt Monitor Dual 8-Pin Micro8
- RS Stock No.:
- 233-6833P
- Mfr. Part No.:
- NCS21674DMG200R2G
- Manufacturer:
- onsemi
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
€32.40
(exc. VAT)
€39.85
(inc. VAT)
Temporarily out of stock
- Shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 95 | €0.648 |
| 100 - 495 | €0.562 |
| 500 - 995 | €0.494 |
| 1000 + | €0.448 |
*price indicative
- RS Stock No.:
- 233-6833P
- Mfr. Part No.:
- NCS21674DMG200R2G
- Manufacturer:
- onsemi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | Current Shunt Monitor | |
| Power Supply Type | Dual | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 5.5V | |
| CMRR - Common Mode Rejection Ratio | 84dB | |
| Number of Channels | 2 | |
| Supply Current | 10mA | |
| Mount Type | Surface | |
| Package Type | Micro8 | |
| Pin Count | 8 | |
| Minimum Operating Temperature | -40°C | |
| GBP - Gain Bandwidth Product | 350kHz | |
| Standards/Approvals | No | |
| Series | NCS2167 | |
| Length | 3.1mm | |
| Height | 1mm | |
| Width | 3.1 mm | |
| Maximum Operating Temperature | 125°C | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type Current Shunt Monitor | ||
Power Supply Type Dual | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 5.5V | ||
CMRR - Common Mode Rejection Ratio 84dB | ||
Number of Channels 2 | ||
Supply Current 10mA | ||
Mount Type Surface | ||
Package Type Micro8 | ||
Pin Count 8 | ||
Minimum Operating Temperature -40°C | ||
GBP - Gain Bandwidth Product 350kHz | ||
Standards/Approvals No | ||
Series NCS2167 | ||
Length 3.1mm | ||
Height 1mm | ||
Width 3.1 mm | ||
Maximum Operating Temperature 125°C | ||
Automotive Standard AEC-Q100 | ||
The ON Semiconductor NCS21674DMG200R2G is a Current Sense amplifier offering gain of 200 V/V. These parts can measure voltage across shunts at common mode voltages from −0.1 V to 40 V, independent of supply voltage. This helps measuring of fast transients and allows the same type of part to be used for high side and low side current sensing. The device is available in Micro8 package, a dual channel version that makes current sensing in multiple points of a system both space and cost effective.
It has a wide Common mode input range of -0.1 V to 40 V
It has a Supply voltage range of 2.7 V to 5.5 V
The device has low offset voltage of ±100 V
It has low offset drift of ±1 V/°C max
