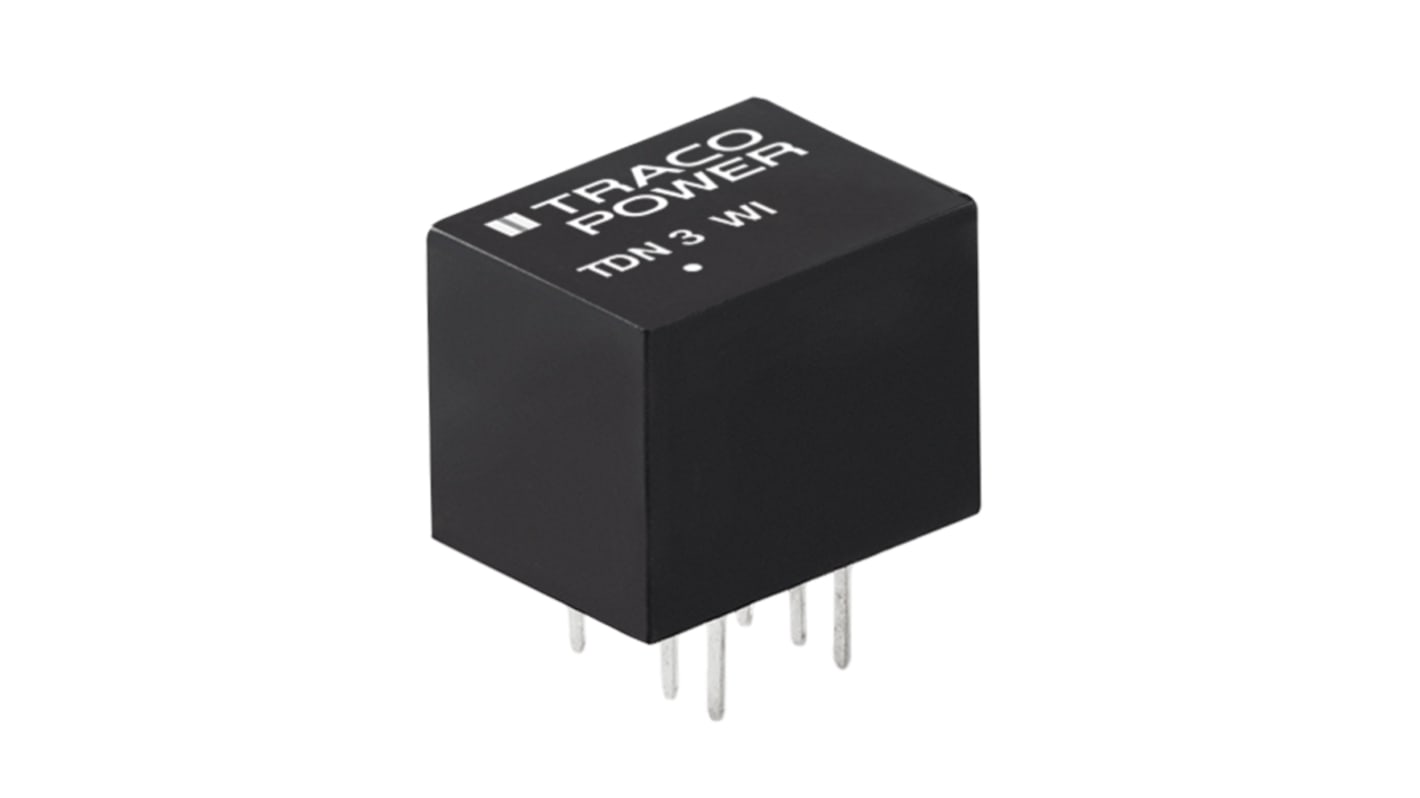

TRACOPOWER TDN 3WI DC-DC Converter, ±5V dc/ ±300mA Output, 18 → 75 V dc Input, 3W, Through Hole, +70°C Max Temp

RS Stock No.:: 166-6104
Mfr. Part No.:: TDN 3-4821WI
Manufacturer:: TRACOPOWER

TRACOPOWER TDN 3WI DC-DC Converter, ±5V dc/ ±300mA Output, 18 → 75 V dc Input, 3W, Through Hole, +70°C Max Temp

Bulk discount available

Price 1 Tube of 10**

€231.64

(exc. VAT)

€284.92

(inc. VAT)

Temporarily out of stock - back order for despatch 02-06-2025, delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Tube(s)	Per Tube	Per unit**
1 - 4	€231.64	€23.164
5 - 9	€224.69	€22.469
10 - 24	€217.74	€21.774
25 - 49	€210.80	€21.08
50 +	€203.85	€20.385

**price indicative

RS Stock No.:: 166-6104
Mfr. Part No.:: TDN 3-4821WI
Manufacturer:: TRACOPOWER

Datasheet

Attribute	Value
Output Voltage	±5V dc
Input Voltage Range	18 → 75 V dc
Power Rating	3W
Input Voltage Nominal	48 V dc
Output Current	±300mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	2
Output Voltage Adjustment Range	±4.95 V dc, ±5.05V dc
Package	DIP
Isolation Voltage	1.5kV dc
Depth	10.2mm
Width	9.1mm
Length	13.2mm
Series	TDN 3WI
Load Regulation	0.01
Maximum Temperature	+70°C
Efficiency	80%
Minimum Temperature	-40°C
Standards Met	EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH, RoHS Compliant, UL 60950-1

TRACOPOWER TDN 3WI DC-DC Converter, ±5V dc/ ±300mA Output, 18 → 75 V dc Input, 3W, Through Hole, +70°C Max Temp

Traco 3W TDN 3WI Series Isolated DC-DC Converters
