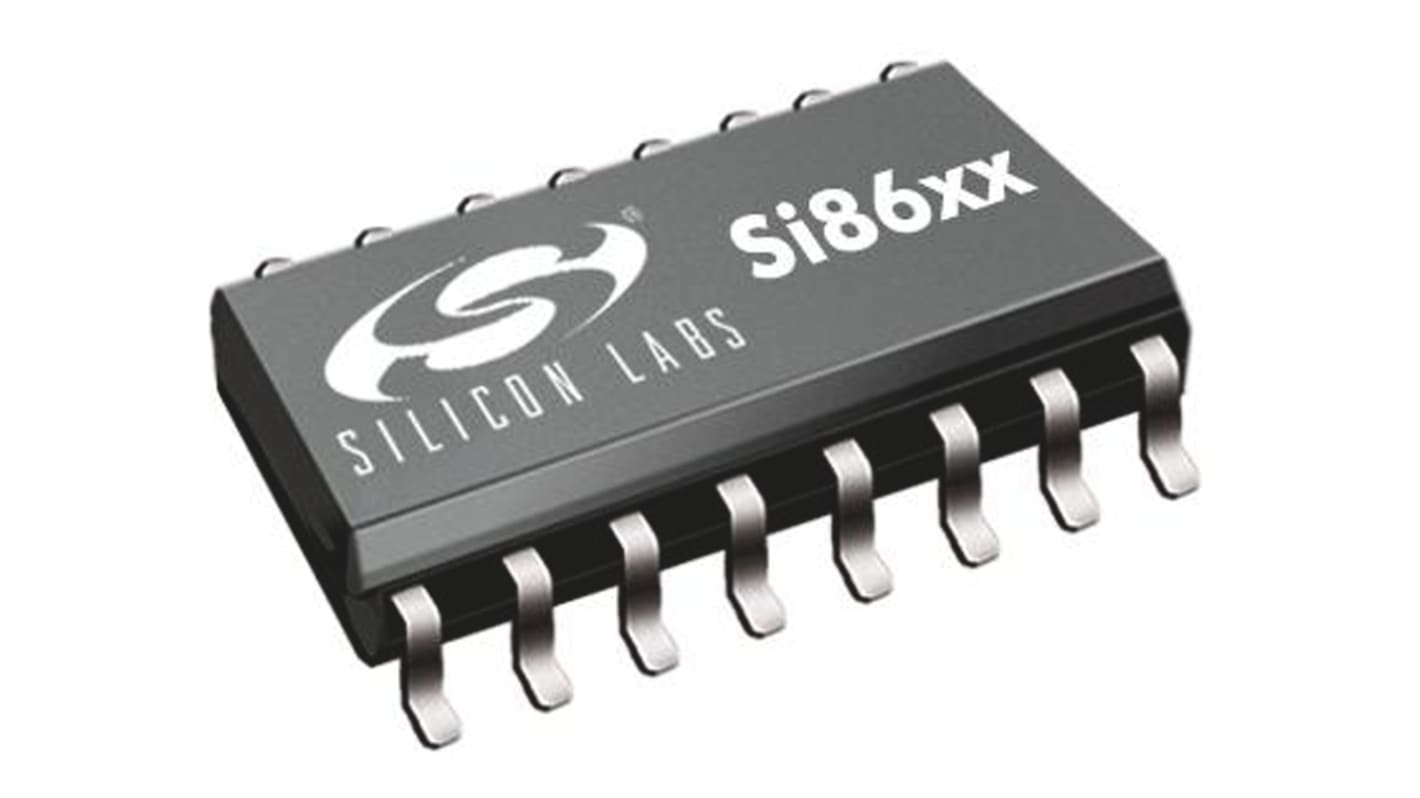

Si8605AC-B-IS1 Silicon Labs, PCB SMT, 4-Channel I2C Digital Isolator 1MBps, 3.75 kVrms, 16-Pin SOIC

  • RS Stock No. 753-2311
  • Mfr. Part No. Si8605AC-B-IS1
  • Manufacturer Silicon Labs
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Si860x Series I2C Digital Isolators

Digital Isolators, Silicon Laboratories

The Silicon Labs broad range of Digital Isolation products offers significant improvements over older isolation technologies such as opto-couplers. They demonstrate lower power consumption, greater reliability and higher performance, and are generally smaller in size and lower in cost. These CMOS-based devices exhibit stable operating characteristics over a wide temperature range and do not suffer from the lifespan limitations of opto-coupled devices.

Specifications
Attribute Value
Maximum Data Rate 1Mbps
Number of Channels 4
Package Type SOIC
Maximum Forward Voltage 5.5V
Maximum Input Current 10.5 mA
Isolation Voltage 3.75 kVrms
Rise Time 4ns
Number of Pins 16
Mounting Type Surface Mount
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
Length 9.9mm
Depth 1.25mm
Width 3.9mm
44 In stock for delivery within 2 working days
Unit of sale: Each
3.45
(exc. VAT)
4.24
(inc. VAT)
units
Per unit
1 - 9
€3.45
10 - 49
€3.31
50 - 99
€3.22
100 - 199
€3.09
200 +
€3.02
Packaging Options:
