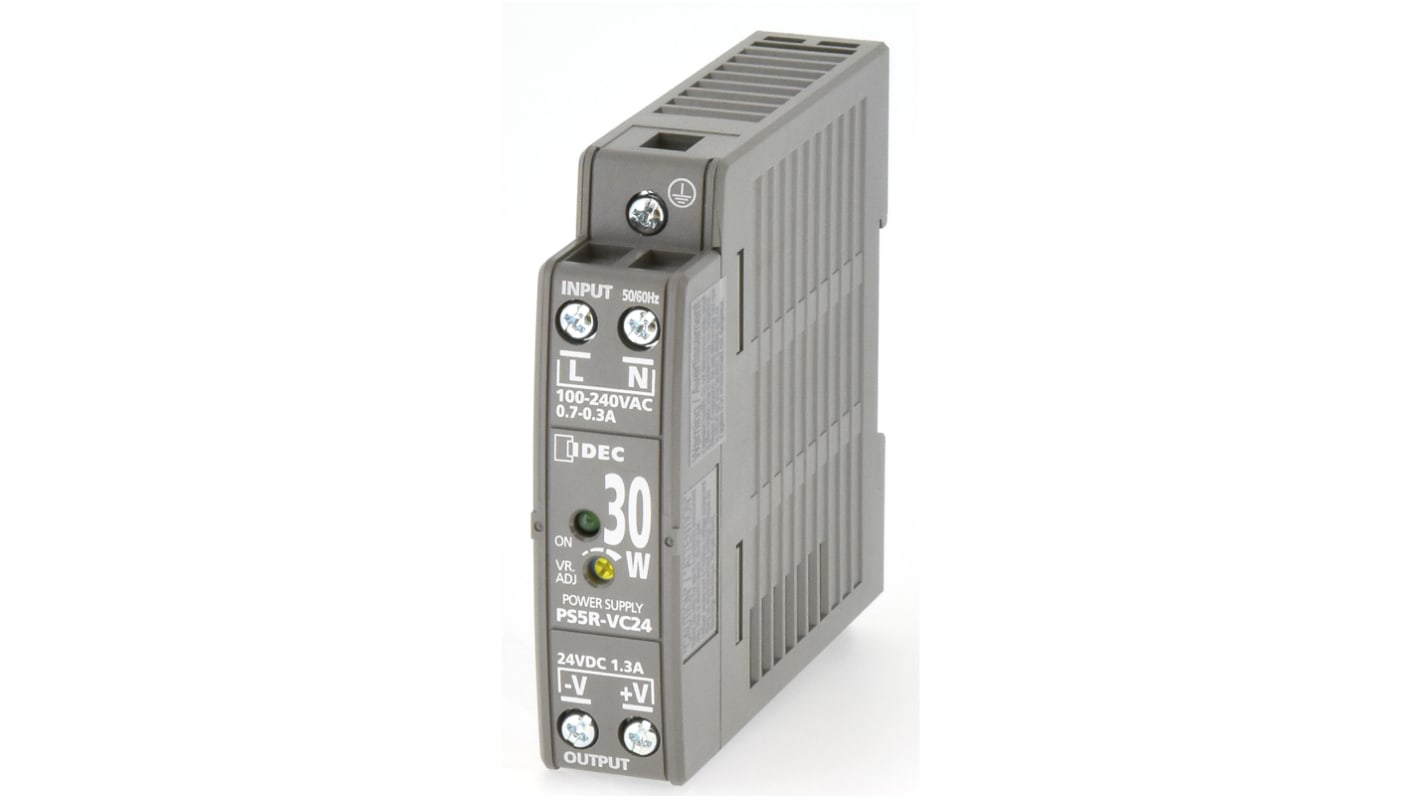

Idec PS5R Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 100 → 370V dc ac, dc Input, 24V dc dc
- RS Stock No.:
- 179-5351
- Mfr. Part No.:
- PS5R-VC24
- Manufacturer:
- Idec
32 In stock for delivery within 2 working days
Added
Price Each
€46.57
(exc. VAT)
€57.28
(inc. VAT)
| Units | Per unit |
| 1 - 14 | €46.57 |
| 15 - 24 | €43.31 |
| 25 + | €40.97 |
- RS Stock No.:
- 179-5351
- Mfr. Part No.:
- PS5R-VC24
- Manufacturer:
- Idec
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Spring up terminal accepts wiring of ring terminals.
Slim Size.
Width: 22.5mm (10W/15W/30W), 36mm (60W/90W),46mm (120W),60mm (240W)
Can be installed in six mounting directions.
Optical mounting bracket is available for panel mounting.
Five-Year Warranty
Slim Size.
Width: 22.5mm (10W/15W/30W), 36mm (60W/90W),46mm (120W),60mm (240W)
Can be installed in six mounting directions.
Optical mounting bracket is available for panel mounting.
Five-Year Warranty
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 24V dc |
| Output Current | 1.3A |
| AC or DC Input Voltage | ac, dc |
| AC or DC Output Voltage | dc |
| Input Voltage | 85 → 264 V ac / 100 → 370V dc |
| Power Rating | 30W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 90mm |
| Width | 22.5mm |
| Depth | 95mm |
| Series | PS5R |
| Output Voltage Adjustment Range | ±10% |
| MTBF | 650000 (Minimum)h |
| Ripple And Noise | 4% Pk-Pk |
| Efficiency | 87% |
| Maximum Temperature | +70°C |
| Special Features | Can be Installed in 6 Directions, Compact Size Preserves Panel Space, Five-Year Factory Warranty |
| Load Regulation | 1% |
| Minimum Temperature | -25°C |
| Standards Met | ANSI/ISA, CE:TUV, CSA C22.2 No 107.1.213.223, cULus, EN 50178, EN 60950-1, EN 61204-3, UL 310, UL 508 |
| Mounting Type | DIN Rail Mount |
