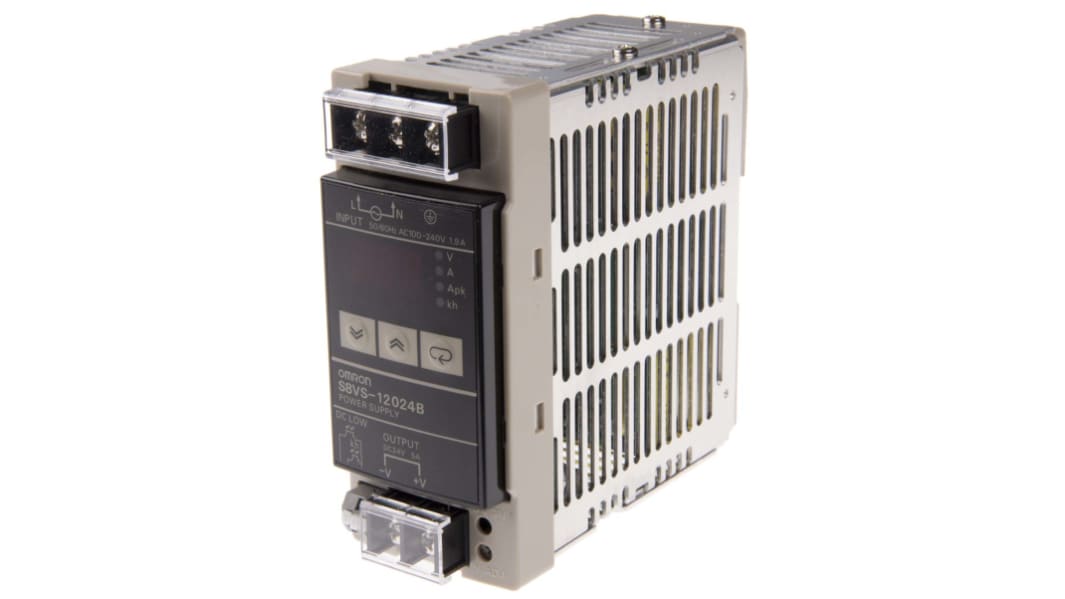

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

RS Stock No.:: 452-8647
Mfr. Part No.:: S8VS-12024B
Manufacturer:: Omron

Omron S8VS Switched Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 24V dc dc Output, 5A Output, 120W

1 / 3

Subtotal (1 unit)**

€346.32

(exc. VAT)

€425.97

(inc. VAT)

1 In stock for delivery within 2 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time stock check

Units	Per unit
1 +	€346.32

**price indicative

RS Stock No.:: 452-8647
Mfr. Part No.:: S8VS-12024B
Manufacturer:: Omron

60W to 240W S8VS Series Power Supplies

A range of switch mode power supplies from Omron with or without indication monitors and simple functions for easy system use.The units are suitable for household appliances and building automation controls which are increasingly required in commercial and residential premises.

60/90/120/180/240/480-W Models

• 90-W models have an indication monitor that conforms to UL Class 2 Output standards
• New models with screwless terminal blocks and indication monitor
• 3-digit, 7-segment status display

Note

Approvals

Part Number S8VS-12024B

The S8VS Switch mode, Din Rail mounted power supply is a covered type, screw terminal block display monitor. S8VS-12024B has a power rating of 120 W and an output voltage of 24 V dc plus a rated input voltage of 100 V ac to 240 V ac. This Sinking undervoltage alarm output model incudes green output indicators plus is natural air cooling. The S8VS-12024B does have a total run time monitor.

Features and Benefits.

• Covered type power supply

• Screw terminal

• Design stops screws from falling out of the terminal block

• Switch mode

• DIN Rail Mounted

• Green output indicators

• Natural air cooling

• Power rating 120 W

• Output voltage 24 V dc

• Input voltage 100 V ac to 240 V ac

• Rated output current 5 A

• Harmonic current emissions

• Efficiency 85% min.

• Under-voltage alarm output – open collector, 30 V dc, 50 mA, Sinking (NPN)

• Total run time monitor output

• Sinking alarm output (emitter COM)

• RoHS compliant including Lead Free construction

• Weight 550 g

Safety and Storage.

Do not use an inverter output for the power supply. Mount the power supply using a DIN Rail and secure correctly ensuring limited vibration and shock resistance. Install the power supply away from contactors and other devices. Keep the power supply away from strong high frequency noise and surge.

Vibration resistance 10 Hz to 55 Hz. 0.375 mm single amplitude in each 3 directions for 2 hours.

Shock resistance 150 m/s² 3 times each in 3 directions

Approvals

Standards

Harmonic current emissions conform to EN61000-3-2.
Conforms to SEMI F47-0706 (when 200 V ac input is used)
UL 508/60950-1, CSA C22.2 No. 107.1/60950/1, EN50178 (=VDE 0160),
EN60950-1 (=VDE 0805 Teil 1)

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Series	S8VS
	Type	Switched Mode
	Electrical Phase	1
	Number of Outputs	1
	AC or DC Input Voltage	ac
	Input Voltage	85 → 264V ac
	AC or DC Output Voltage	dc
	Output Voltage	24V dc
	Output Current	5A
	Power Rating	120W
	Dimensions	121.3 x 50 x 119.5mm
	Width	50mm
	Height	115mm
	Depth	121.2mm
	Minimum Temperature	-10°C
	Maximum Temperature	+60°C
	Efficiency	80%
	Mounting Type	DIN Rail Mount
	Load Regulation	±1.5%
	MTBF	135000h
	Ripple And Noise	±2%

	Select all
	Brand Omron
	Series S8VS
	Type Switched Mode
	Electrical Phase 1
	Number of Outputs 1
	AC or DC Input Voltage ac
	Input Voltage 85 → 264V ac
	AC or DC Output Voltage dc
	Output Voltage 24V dc
	Output Current 5A
	Power Rating 120W
	Dimensions 121.3 x 50 x 119.5mm
	Width 50mm
	Height 115mm
	Depth 121.2mm
	Minimum Temperature -10°C
	Maximum Temperature +60°C
	Efficiency 80%
	Mounting Type DIN Rail Mount
	Load Regulation ±1.5%
	MTBF 135000h
	Ripple And Noise ±2%
