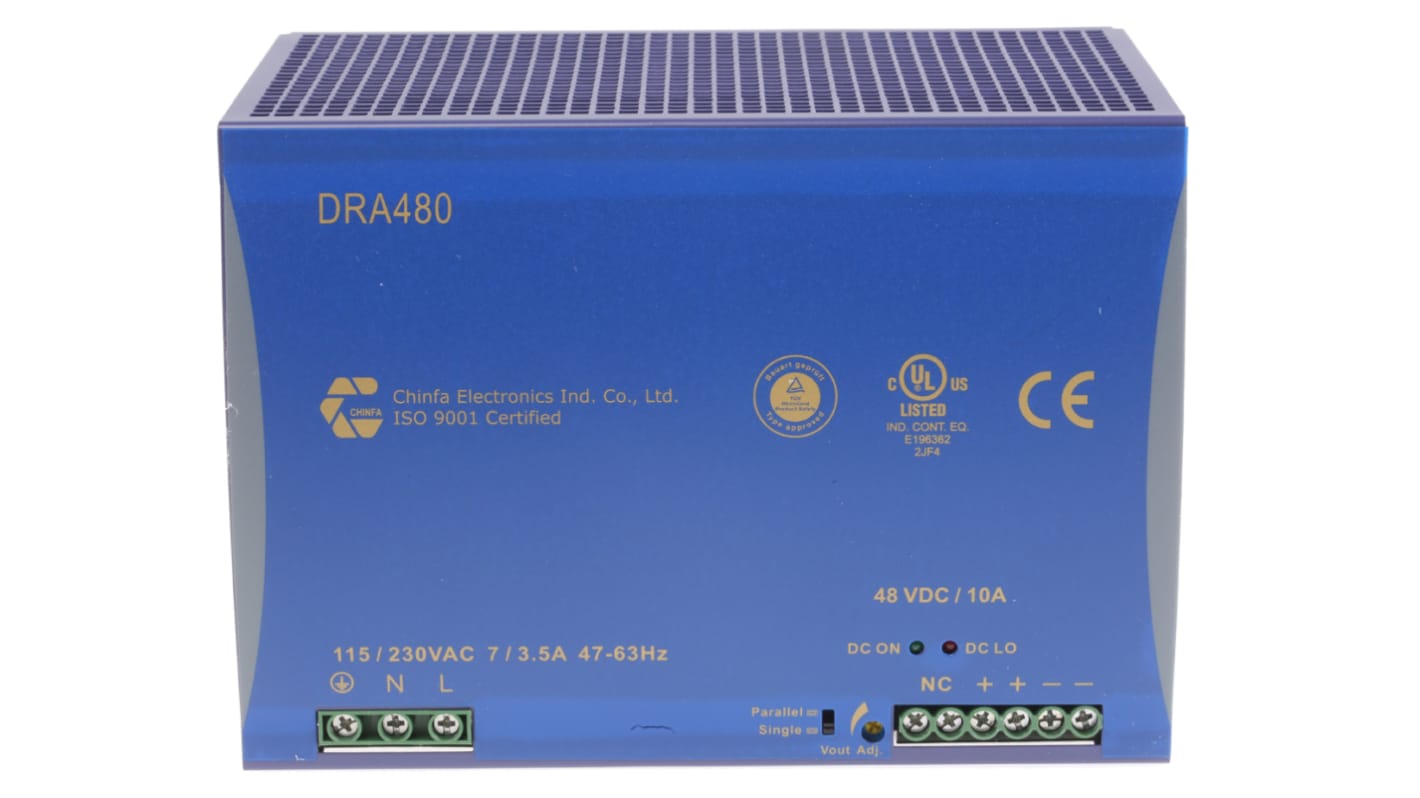

Chinfa DRA480 Switched Mode DIN Rail Power Supply, 90 → 264V ac ac Input, 48V dc dc Output, 10A Output, 480W
- RS Stock No.:
- 789-4029
- Mfr. Part No.:
- DRA480-48A
- Manufacturer:
- Chinfa
34 In stock for delivery within 2 working days
Added
Price Each
€240.47
(exc. VAT)
€295.78
(inc. VAT)
| Units | Per unit |
| 1 + | €240.47 |
- RS Stock No.:
- 789-4029
- Mfr. Part No.:
- DRA480-48A
- Manufacturer:
- Chinfa
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
DRAN & DRA PSU's Series
DIN rail power supplies for industrial control automation with universal input, short circuit protection and internal input filter
Universal mains input & 90 - 375Vdc, 90 - 264Vac
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty
Spring terminal type or screw terminal type (A suffix) available
Front Vout adjustment
Regulated outputs
-40°C to +71°C operation
3 year warranty
Approvals
UL / cUL / TUV / CE
Switch Mode - Chinfa Electronics
Specifications
Attribute | Value |
|---|---|
| Type | Switched Mode |
| Output Voltage | 48V dc |
| Output Current | 10A |
| AC or DC Input Voltage | ac |
| AC or DC Output Voltage | dc |
| Input Voltage | 90 → 264V ac |
| Power Rating | 480W |
| Electrical Phase | 1 |
| Number of Outputs | 1 |
| Height | 125mm |
| Width | 123.6mm |
| Depth | 124mm |
| Series | DRA480 |
| Maximum Temperature | +71°C |
| Standards Met | EN 55032, EN 61558-1, EN 61558-2-16, EN 62368-1, UL 508, UL 62368-1 |
| Load Regulation | ±1% |
| Ripple And Noise | 100mV |
| MTBF | 416000h |
| Minimum Temperature | -40°C |
| Mounting Type | DIN Rail Mount |
