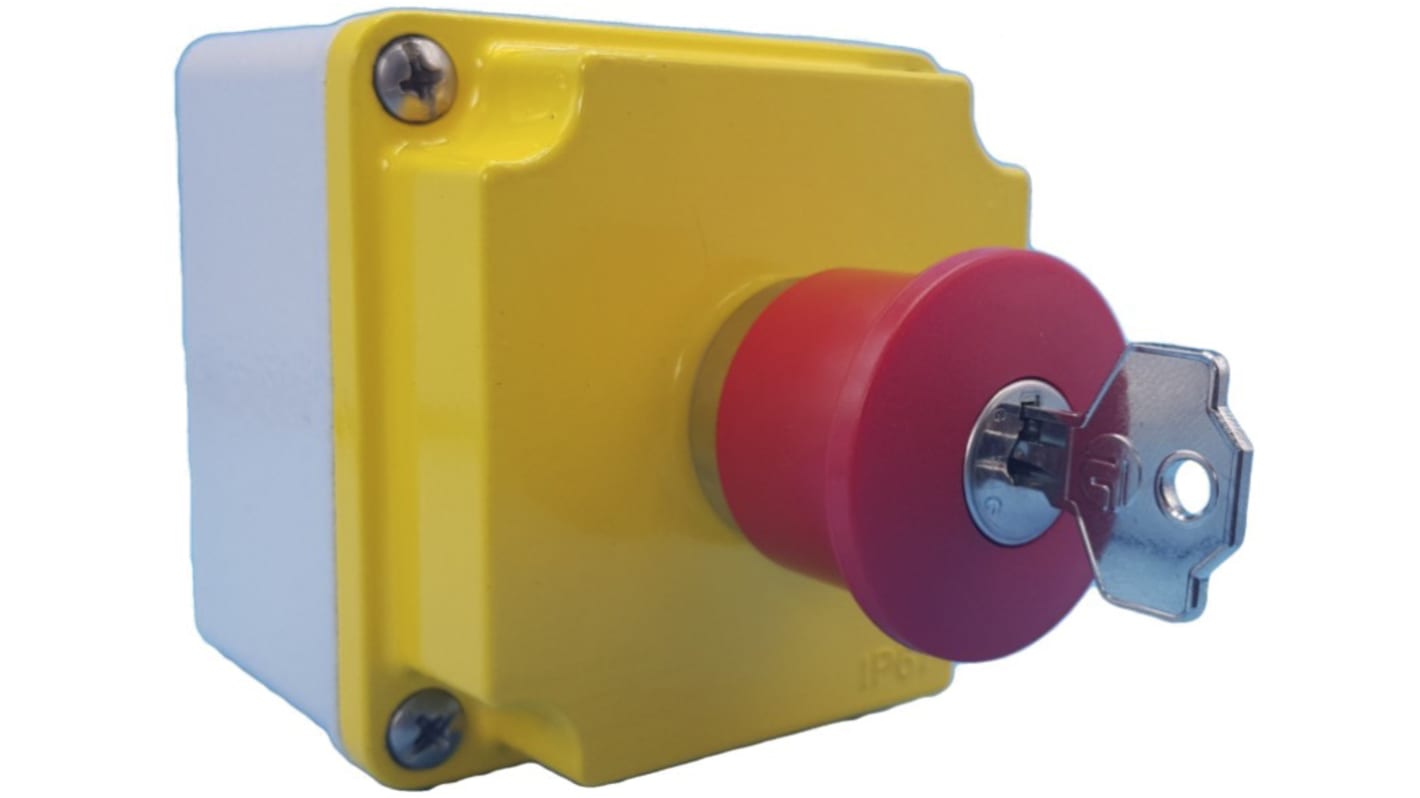

Lovato, Key Reset Emergency Button

  • RS Stock No. 187-8920
  • Mfr. Part No. LPZM1B502
  • Manufacturer Lovato
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): IT
Product Details

Enclosures made of aluminium alloy suitable for pushbuttons, selector switches and pilot lights Platinum and SLM series. The enclosures are supplied without any holes on the cover and on the base (no cable entry). Maximum 3 contacts for operator (with mounting adapter) mounted on the cover.

Earth connection through threaded holes on the base and on the cover (screws supplied)
Ambient conditions:
Operating temperature: -25...+70°C
Storage temperature: -40...+85°C

Specifications
Attribute Value
Reset Method Key Reset
Normal State Configuration NC
Cutout Diameter 21mm
Auxiliary Contacts No
IP Rating IP66, IP67
Illuminated No
Length 80mm
Dimensions 80 x 73 x 80 mm
Depth 80mm
Housing Material Aluminium Alloy
Series LPZM
Width 73mm
2 In stock for delivery within 2 working days
Unit of sale: Each
73.19
(exc. VAT)
90.02
(inc. VAT)
units
Per unit
1 +
€73.19
