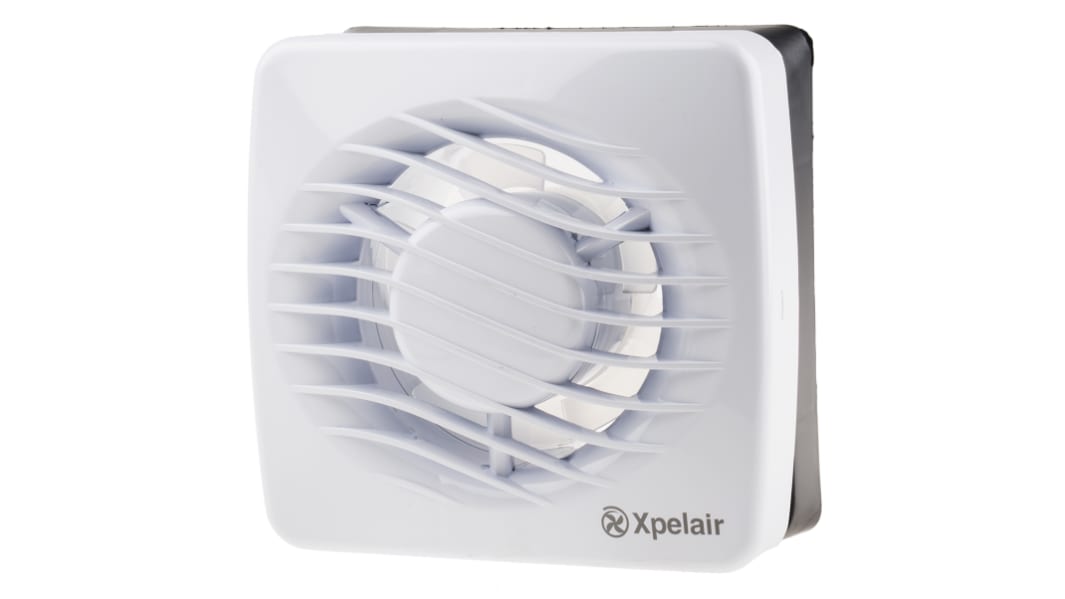

Xpelair 90839AW DX Wall Mounted Extractor Fan, 76m³/h, 35dB(A), Duct Size 100mm
- RS Stock No.:
- 811-7279
- Mfr. Part No.:
- 90839AW
- Manufacturer:
- Xpelair
2 Within 1 working day(s) (IE stock)
79 Within 2 working day(s) (EU stock)
Added
Price Each
€40.58
(exc. VAT)
€49.91
(inc. VAT)
| Units | Per unit |
| 1 + | €40.58 |
- RS Stock No.:
- 811-7279
- Mfr. Part No.:
- 90839AW
- Manufacturer:
- Xpelair
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Xpelair Extractor Fan
The Xpelair extractor fan has an airflow of 76m³/h and has a supply voltage rating ranging from 220VAC to 230VAC. It comes with a universal mounting kit comprising of a wall tube, 2 gaskets, outer grille, and a skirt moulding for window mounting in single glazing up to 6mm. The fane also includes an air operated back draught shutter and ducting. This fan is supplied as a fan unit and requires separate kits for wall, ceiling or window mounting applications.
It is available with a face height of 155mm, face width of 165mm and depth of 43mm.
It is available with a face height of 155mm, face width of 165mm and depth of 43mm.
Features and Benefits
Wall mounted
Airflow of 76m³/h
Lubricated for life motors with thermal cut-out protection
Clip-off front cover for ease of cleaning
Noise level of 35dB (A)
Duct size diameter is 100mm
Airflow of 76m³/h
Lubricated for life motors with thermal cut-out protection
Clip-off front cover for ease of cleaning
Noise level of 35dB (A)
Duct size diameter is 100mm
Applications
Kitchens
Utilities
Utilities
Certifications
IPX5 rated
BEAB rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BEAB rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
|---|---|
| Function | Extraction |
| Fan Type | Extractor |
| Air Flow | 76m³/h |
| Noise Level | 35dB(A) |
| Mounting | Wall Mounted |
| Face Dimensions | 165 x 155mm |
| Depth | 43mm |
| Face Height | 155mm |
| Face Width | 165mm |
| Duct Size | 100mm |
| Supply Voltage | 230 V ac |
| Series | DX |
